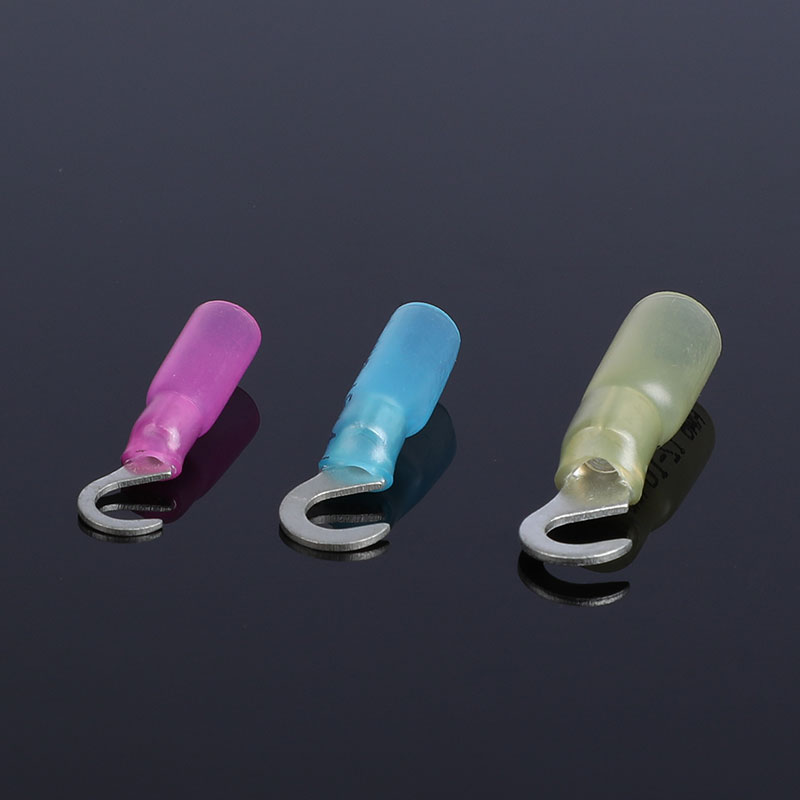

Heat Shrink Waterproof Hook Terminal
Gaopeng heat shrink waterproof hook terminals are made of high-quality copper, a material known for its excellent conductivity and corrosion resistance. The choice of this material is critical because it ensures that the terminals can withstand high electrical loads without compromising performance. The copper construction also increases the life of the terminals, making them a cost-effective solution for both short-term and long-term projects. By using these terminals, users can rest assured that their electrical connections will remain intact and efficient for a long time.
One of the outstanding features of Gaopeng's heat shrink waterproof hook terminals is their waterproof capabilities. In environments where moisture and humidity are prevalent, traditional terminals may fail, resulting in potential short circuits and equipment damage. However, the waterproof design of these terminals provides an extra layer of protection, ensuring that electrical connections remain secure even in challenging conditions. This feature is particularly beneficial for outdoor applications, automotive wiring, and marine environments, where contact with water is inevitable.
In addition to its waterproof properties, the heat shrink feature of these terminals further enhances their reliability. When heat shrink tubing is used, a tight seal is created at the connection, preventing moisture intrusion and providing additional insulation. This not only protects the electrical connection from environmental factors, but also reduces the risk of accidental disconnection. The combination of heat shrink and waterproof technology makes Gaopeng heat shrink waterproof hook terminals an ideal choice for anyone looking for a reliable and dependable solution to their electrical needs.
The versatility of Gaopeng heat shrink waterproof hook terminals cannot be ignored. With a variety of models to choose from, including HHV1.25, HHV2 and HHV5.5, users can choose the appropriate terminal size for their specific application. Whether dealing with small electronic projects or large industrial installations, these terminals can accommodate a variety of wire gauges and connection types. This adaptability, coupled with their excellent performance characteristics, makes them a valuable addition to any tool kit.
Technical Parameters
| ITEM NO | STUD SIZE | DIMENSION mm |
PCS/ PACK |
COLOR | EXPLANATION | ||||||
| American | Metric d2 | B | F | L | E | D | T | ||||
| HHV1.25-3.5 | #6 | 3.7 | 8.0 | 7.0 | 27.3 | 16.3 | 6.0 | 0.7 | 100 | Red |
Lead Section:0.5~1.5mm' (AW.G.22~16) MaxCurrent：lmax=19A Material:Copper Operating Temperature: 55℃ -125℃ Began To Shrink Temperature:80℃ Minimum Fully Shrinkage Temperature:130℃ |
| HHV1.25-4 | #8 | 4.3 | |||||||||
| HHV1.25-5 | #10 | 5.3 | |||||||||
| HHV1.25-6 | 1/4 | 6.5 | 11.6 | 11.0 | 33.3 | ||||||
| HHV2-3.5 | #6 | 3.7 | 8.5 | 7.4 | 28.8 |
16.8 |
6.6 |
0.8 |
100 |
Blue |
Lead Section:1.5~2.5mm' (AW.G.16~14) MaxCurrent：lmax=27A Material:Copper Operating Temperature: 55℃ -125℃ Began To Shrink Temperature:80℃ Minimum Fully Shrinkage Temperature:130℃ |
| HHV2-4 | #8 | 4.3 | |||||||||
| HHV2-5 | #10 | 5.3 | 9.5 | 7.3 | 28.8 | ||||||
| HHV2-6 | 1/4 | 6.5 | 12.0 | 11.0 | 33.8 | ||||||
| HHV5.5-3.5 | #6 | 3.7 | 7.2 | 6.2 | 30.3 |
21.6 |
8.2 |
1.0 |
100 |
Yellow |

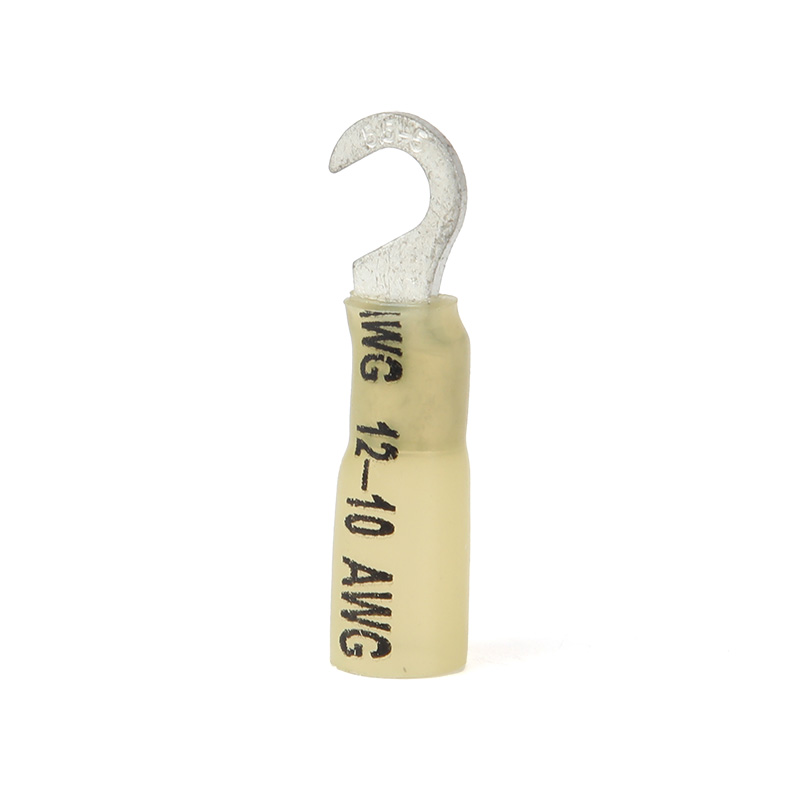

Lead Section:4~6mm2 (AW.G.12~10) MaxCurrent：lmax=48A Material:Copper Operating Temperature: 55℃ -125℃ Began To Shrink Temperature:80℃ Minimum Fully Shrinkage Temperature:130℃ |
| HHV5.5-4 | #8 | 4.3 | 9.5 | 9.5 | 34.4 | ||||||
| HHV5.5-5 | #10 | 5.3 | |||||||||
| HHV5.5-6 | 1/4 | 6.5 | 12.0 | 10.3 | 37.1 | ||||||
| HHV5.5-8 | 5/16 | 8.5 | 15.0 | 13.5 | 41.6 | ||||||
