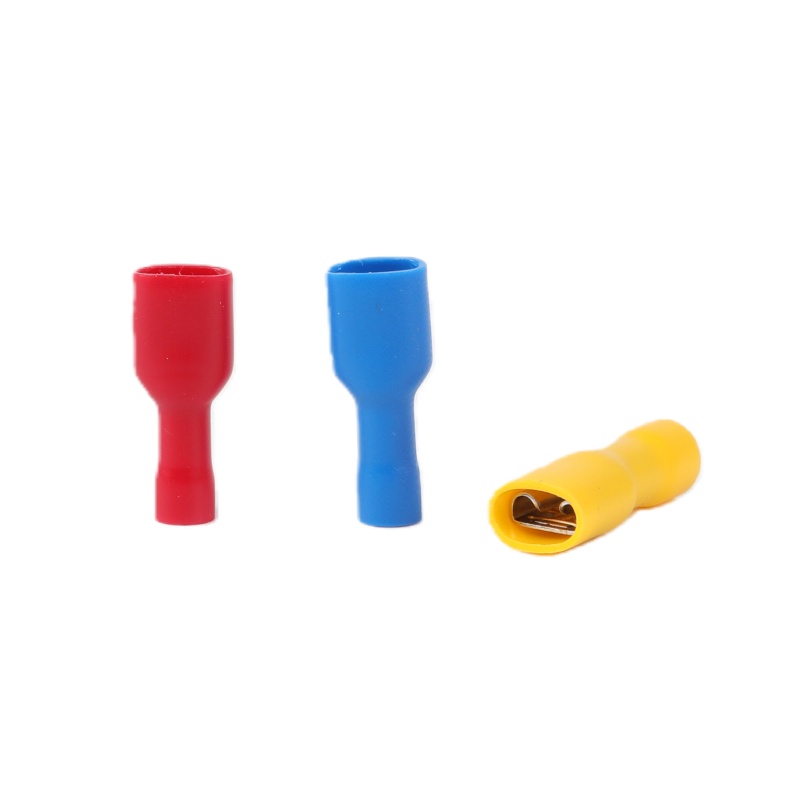

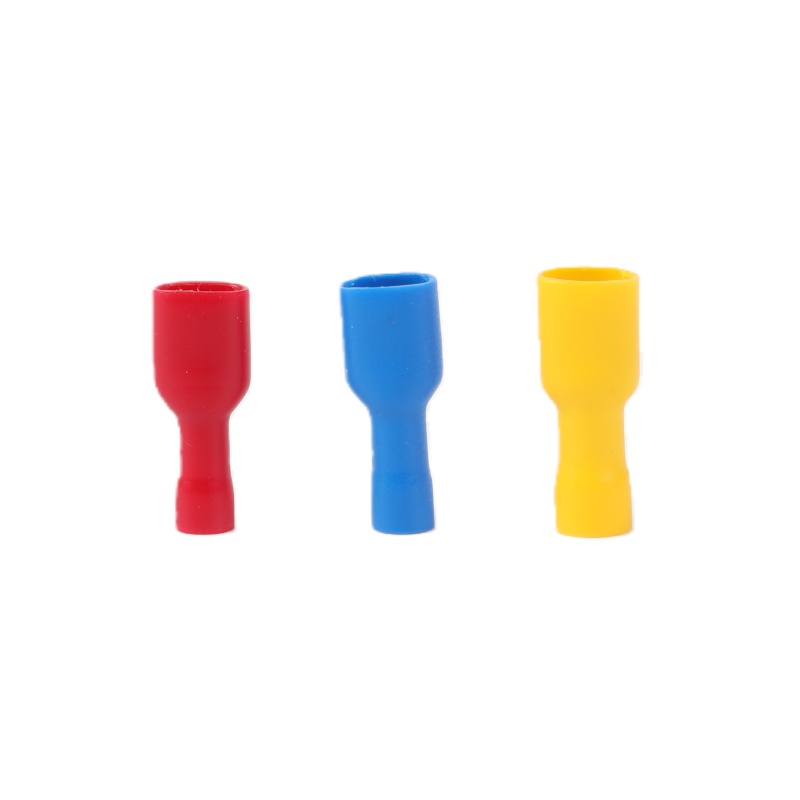

PVC Fully Insulated Female Connector
The FDFD female fully insulated connectors are made from high-quality brass, a material known for its excellent conductivity and durability. Brass connectors are favored by the industry for their corrosion resistance and ability to maintain a stable connection over time. This feature is especially important in environments where moisture and other corrosive elements may be present. By using brass in the FDFD series, Gao Peng ensures that users can rely on these connectors for long-lasting performance, reducing the need for frequent replacement and maintenance.
Insulation is a critical aspect of any electrical connector, and the FDFD Female Fully Insulated Connectors excel in this regard. Each connector is wrapped in a layer of PVC insulation, which provides additional protection against electrical shorts and accidental contact. This insulation not only improves safety, but also increases the overall efficiency of the electrical system by minimizing energy loss. The fully insulated design of the FDFD connector ensures that users can work with confidence, knowing that their connection is secure and will not be affected by external factors.
The versatility of the FDFD female fully insulated connectors makes them suitable for a wide range of applications. Whether in automotive, industrial or consumer electronics, these connectors can be used to create reliable and efficient electrical connections. The various models in the FDFD series cater to different wire sizes and connection requirements, allowing users to select the most appropriate option for their specific needs. This adaptability is a significant advantage for engineers and technicians who need reliable solutions to complete a variety of projects.
Gaopeng's FDFD female fully insulated connector represents a major advancement in electrical connection technology. With its rugged brass construction and reliable PVC insulation, the connector is designed to provide optimal performance and safety in a variety of applications. The FDFD series includes the FDFD1.25, FDFD2 and FDFD5.5 models, which are an essential component for electrical industry professionals due to their versatility and reliability. As technology continues to advance, the importance of high-quality connectors like the FDFD female fully insulated connector cannot be overstated to ensure that electrical systems operate efficiently and safely.

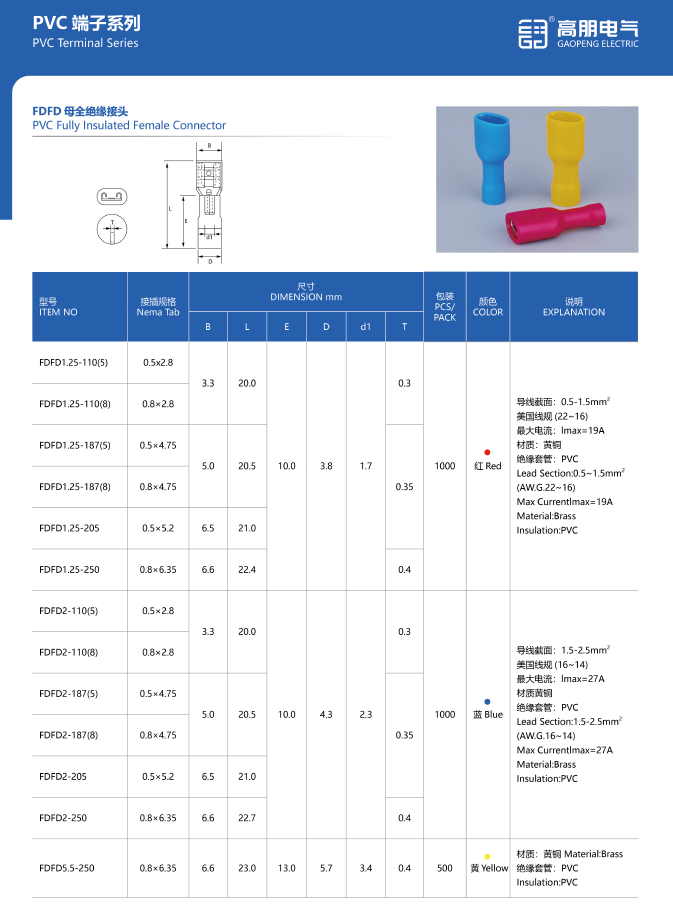

Technical Parameters
| ITEM NO | Nema Tab | DIMENSION (mm) | PCS/PACK | COLOR | EXPLANATION | |||||
| B | L | E | D | d1 | T | |||||
| FDFD1.25-110(5) | 0.5x2.8 | 3.3 | 20.0 | 10.0 | 3.8 | 1.7 | 0.3 | 1000 | Red | Lead Section:0.5~1.5mm2 (AW.G.22~16) Max Currentlmax=19A Material:Brass Insulation:PVC |
| FDFD1.25-110(8) | 0.8×2.8 | |||||||||
| FDFD1.25-187(5) | 0.5×4.75 | 5.0 | 20.5 | 0.35 | ||||||
| FDFD1.25-187(8) | 0.8×4.75 | |||||||||
| FDFD1.25-205 | 0.5×5.2 | 6.5 | 21.0 | |||||||
| FDFD1.25-250 | 0.8×6.35 | 6.6 | 22.4 | 0.4 | ||||||
| FDFD2-110(5) | 0.5×2.8 | 3.3 | 20.0 | 10.0 | 4.3 | 2.3 | 0.3 | 1000 | Blue | Lead Section:1.5-2.5mm2 (AW.G.16~14) Max Currentlmax=27A Material:Brass Insulation:PVC |
| FDFD2-110(8) | 0.8×2.8 | |||||||||
| FDFD2-187(5) | 0.5×4.75 | 5.0 | 20.5 | 0.35 | ||||||
| FDFD2-187(8) | 0.8×4.75 | |||||||||
| FDFD2-205 | 0.5×5.2 | 6.5 | 21.0 | |||||||
| FDFD2-250 | 0.8×6.35 | 6.6 | 22.7 | 0.4 | ||||||
| FDFD5.5-250 | 0.8×6.35 | 6.6 | 23.0 | 13.0 | 5.7 | 3.4 | 0.4 | 500 | Yellow | Material:BrassInsulation:PVC |
