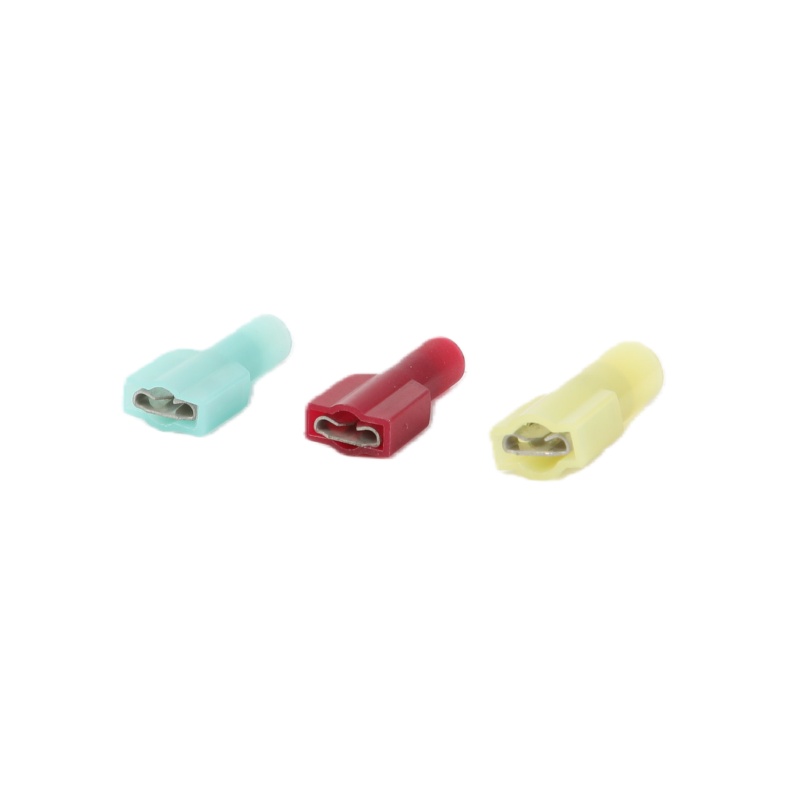

FDFNYA Nylon Fully insulated Female Connector
The FDFNYA female fully insulated connector is an electrical connection and protection device made from high-performance engineering plastics (usually nylon PA66). Its core design is to provide a completely enclosed, highly insulated, and highly protective casing for the ends, branches, or extensions of conductors (typically wires or cables). 'Female' refers to the internal feature, which usually has pre-installed threaded metal inserts (such as brass inserts) for fastening connections with male bolts or screws. This product is mainly used in low- and medium-voltage electrical systems to ensure safe, reliable, and durable electrical connections. It protects the spliced ends of stranded wires or cable cores, as well as T-shaped branch points, preventing short circuits and electric leakage. It also prevents the connection points from loosening or being damaged due to external pulling, abrasion, or vibration. The connector is waterproof, dustproof, moisture-proof, and corrosion-resistant, capable of withstanding a certain degree of impact and compression, making it suitable for harsh environments.
Technical Parameters
|
ITEM NO |
Nema Tab |
WIRE SECTION |
DIMENSION (mm) |
||||||
|
A.W.G |
mm² |
B |
L |
E |
D |
d1 |
T |
||
|
FDFNYA1.25-250 |
0.8+6.35 |
22-16 |
0.5-1.5 |
8.8 |
21.3 |
10.3 |
4.2 |
1.7 |
0.4 |
|
FDFNYA2-250 |
0.8+6.35 |
16-14 |
1.5-2.5 |
8.8 |
21.3 |
10.3 |
4.2 |
2.3 |
0.4 |
|
FDFNYA5.5-250 |
0.8+6.35 |
12-10 |
4.0-6.0 |
8.8 |
22.3 |
10.3 |
6.1 |
3.4 |
0.4 |
