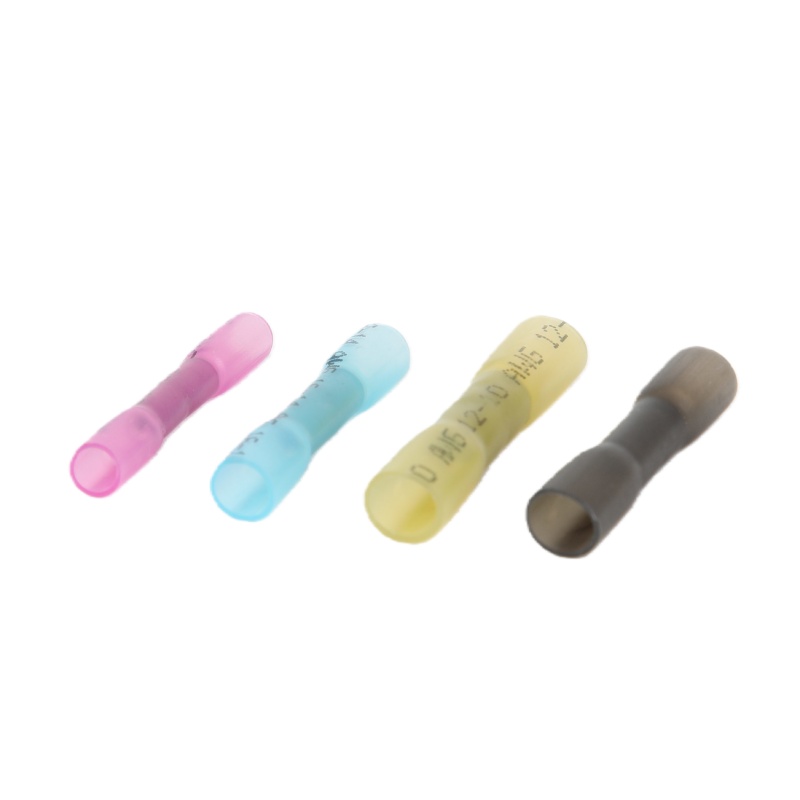

Heat Shrink Butt Connector
If you are looking for a high-quality wire connector that is waterproof, dustproof, then our heat shrink connector series is the best choice for your needs. With reliable waterproof performance, you can trust our wire connectors to keep your equipment powered and running smoothly in even the toughest industrial environments.
Our heat shrink terminals are made of high quality copper and polyolefin, 3：1 shrinkage ratio, ensures a secure and reliable connection.
Heat Shrink Butt Connectors comply with all Relevant European Standards, which has a thick tinned copper barrel which ensures strong secure crimping every time, improving electrical conductivity, provides minimal voltage drop, high current flow. Dual-wall Design: polyolefin tubing on the outside and hot melt adhesive inside.
The heat shrink butt connectors is easier to flatten and grab the wire, and less heat. At the same time, the thick tube ensures that every strong crimping can be firmly connected to the route, making the butt connectors heat shrink safer.
Wire gauge imprint on connectors and color identification.
Product Features
1.Waterproof: The translucent insulation pipe of the wire connectors heat shrink has a unique double wall design. The exterior is a polyolefin pipe and the interior has enough hot melt adhesive. The 360-degree safety seal provides excellent waterproof function.
2.Durability: The thick copper pipe ensures that the electric connectors for wiring can be firmly connected to the line every time to prevent wire corrosion and maintain high stability. The performance makes you more assured to use it.
3.Ideal translucent: It provides tensile strength, allows visual inspection, prevents corrosion, and provided a waterproof seal.
Wide Applications
Excellent stability, water resistance and electrical conductivity provide durable connection for motorcycle, off-road vehicles, lawn tractors,RVs,fish finder and marine application. Widely used on multiple projects of your Christmas lights,ships with high waterproof requirements motorcycle stereo, boat electronics, equipment switches.

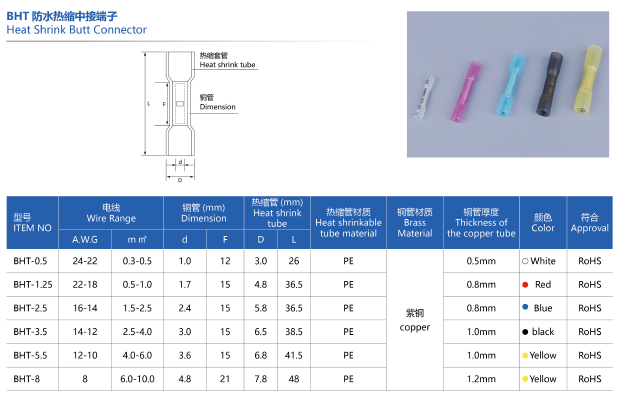

Technical Parameters
| ITEM NO | Wire Range | Dimension(mm) | Heat shrinl tube(mm) | Heat shrinkable tube material | Brass Material | Thickness o he copper tube | Color | Approval | DRAWING | |||
| A.W.G | mm 2 | d | F | D | L | |||||||
| BHT-0.5 | 24-22 | 0.3-0.5 | 1.0 | 12 | 3.0 | 26 | PE | copper | 0.5mm | Yellow | RoHs |  |
| BHT-1.25 | 22-18 | 0.5-1.0 | 1.7 | 15 | 4.8 | 36.5 | PE | 0.8mm | Red | RoHS | ||
| BHT-2.5 | 16-14 | 1.5-2.5 | 2.4 | 15 | 5.8 | 36.5 | PE | 0.8mm | Blue | RoHS | ||
| BHT-3.5 | 14-12 | 2.5-4.0 | 3.0 | 15 | 6.5 | 38.5 | PE | 1.0mm | black | RoHS | ||
| BHT-5.5 | 12-10 | 4.0-6.0 | 3.6 | 15 | 6.8 | 41.5 | PE | 1.0mm | Yellow | RoHS | ||
| BHT-8 | 8 | 6.0-10.0 | 4.8 | 21 | 7.8 | 48 | PE | 1.2mm | Yellow | RoHS | ||
