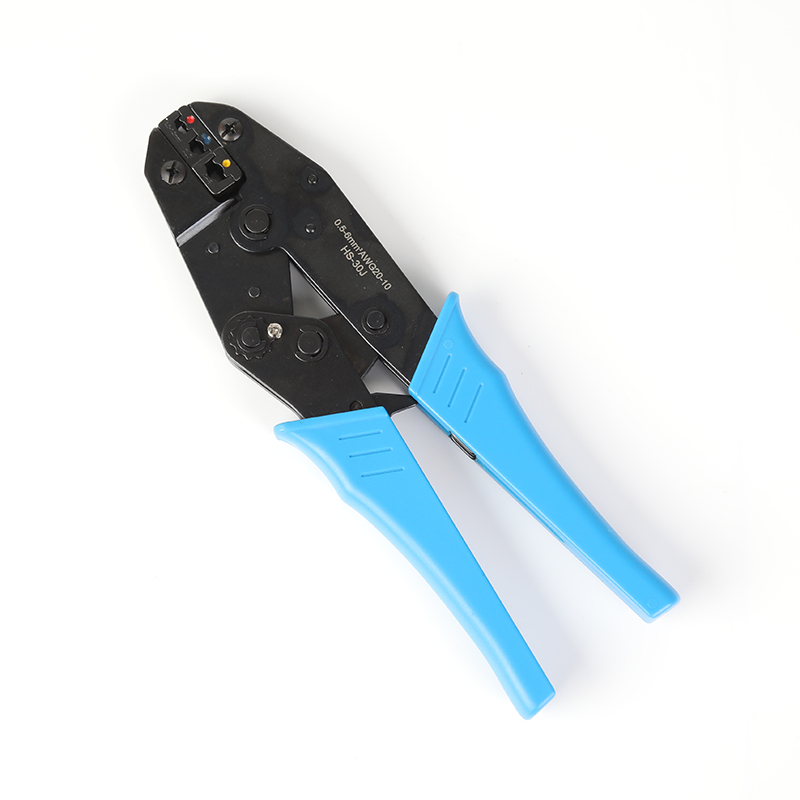

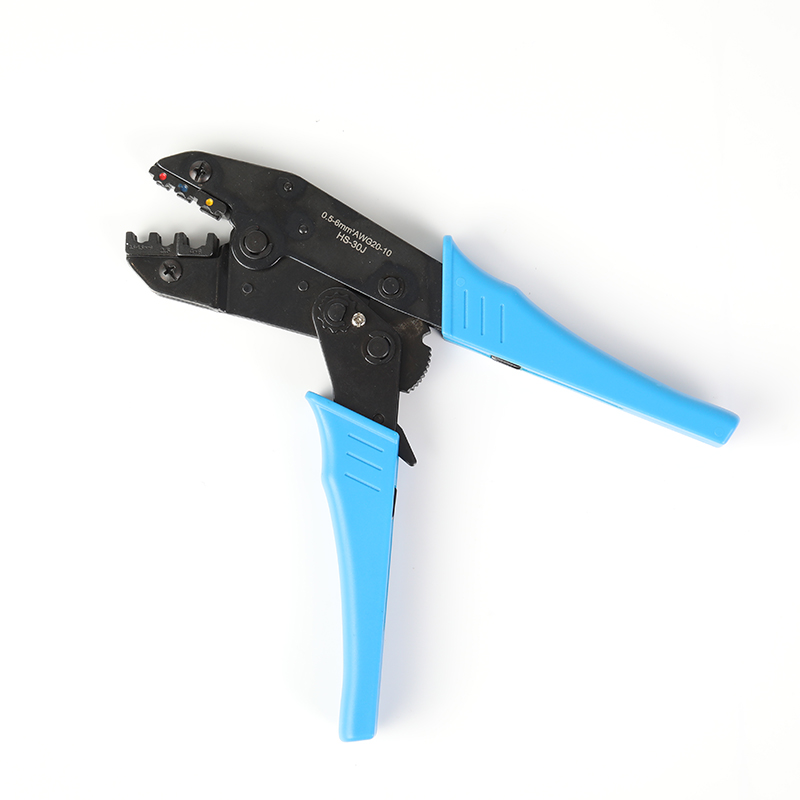

HS-30J Automatic Self-adjusting Multifunctional Crimping pliers
The HS-30J is not just a wire stripper; it is a multifunctional ratchet tool that integrates wire stripping and crimping. It is mainly used in power connections, industrial automation, home appliance repair, and automotive circuitry. It is specifically designed for precise crimping of insulated terminals, bare terminals, and wiring harnesses ranging from 0.5-6 mm² (22-10 AWG), ensuring that every cable connection achieves the best conductivity and mechanical strength, effectively preventing overheating, sparking, or circuit breakage caused by poor contact.
Main Uses:Precision Crimping: Designed for European-style insulated terminals (such as SV, BV, RV series), bare terminals, and tubular terminal ends (wire caps), providing aesthetically pleasing and secure crimps.Auxiliary Wire Stripping: Combined with the stripping function of the jaws, it can quickly remove insulation from wires without damaging the core wire.
Applicable Users and Scenarios:Professional Electricians: Electrical cabinet wiring, equipment maintenance, and building electrical installation, where high efficiency and standardized results are required.Industrial Automation Engineers: PLC control systems and servo drive wiring, where high reliability of crimping is essential.Automotive Repair and Modification: Vehicle harness repair and car audio modification, requiring vibration-resistant and corrosion-resistant connections.
DIY Enthusiasts: Smart home installation and model making, where the refined feel of a professional tool is desired.
Selected Materials:Jaws: Forged from high carbon steel (special steel) or chrome-vanadium alloy steel. This material undergoes high-temperature quenching treatment, providing extremely high hardness and wear resistance. Even after thousands of crimping operations, the jaw will not deform or chip.
Surface Treatment: Black oxidation or electroplating process, offering a high-quality appearance and effective rust and corrosion resistance, suitable for various complex working environments.Handle: Dual-color anti-slip handle, usually made of TPR/PP plastic, ergonomically designed for comfortable grip, reducing fatigue during extended use.
50% Effort-Saving Ratchet Mechanism: This is not an ordinary pair of pliers! The built-in precision ratchet mechanism allows you to press lightly, and the ratchet will automatically engage to complete the crimp in stages. This not only saves up to 50% effort but also ensures that the jaws must fully close before it automatically releases, eliminating human errors of “partial or incomplete crimping.”
Self-Release and Precision Calibration: Equipped with a complete locking and self-release mechanism. Once crimping begins, the ratchet locks until the operation is perfectly completed, then automatically returns. Each HS-30J undergoes precision calibration before leaving the factory to ensure accurate crimping depth, producing uniformly shaped terminals comparable to factory machine crimps.
