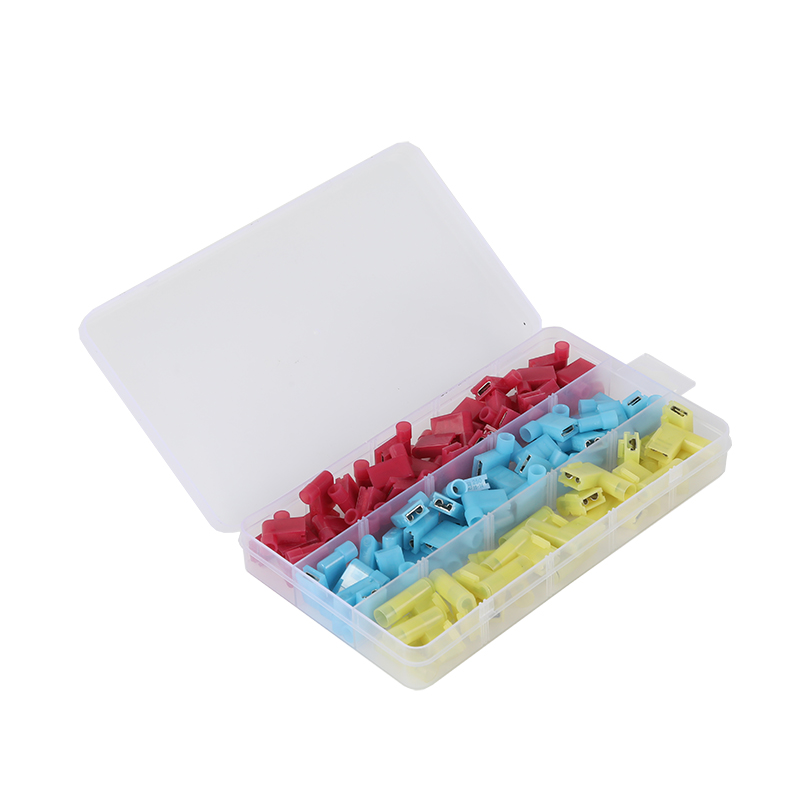

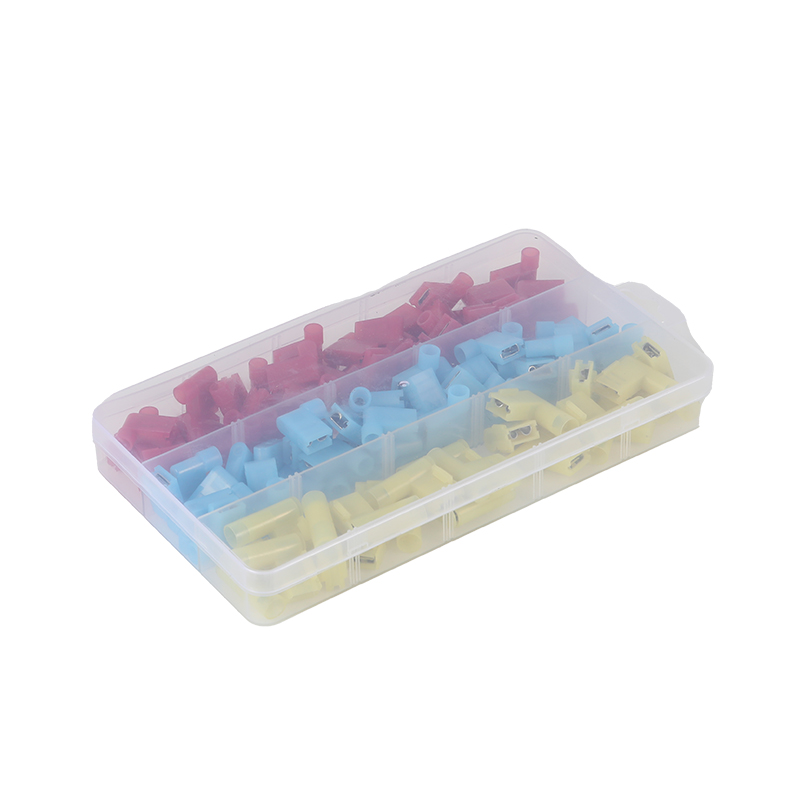

Nylon flag terminal female insulated connector box

Nylon flag terminals, also known as 90-degree insulated female plug-ins, are cold-pressed terminals specifically designed to solve the problem of wiring in tight spaces. Its most notable feature is that the wiring port is at a perpendicular 90-degree angle to the direction of the insert, which allows the wire to be close to the equipment routing, especially suitable for the corners behind the cabinet and the car mezzanine, which completely solves the problem of wiring dead corners. And no need to wrap electrical tape! The nylon shell is not only flame retardant but also provides complete insulation protection. It can effectively prevent short circuit accidents caused by exposed wires, and can also avoid the risk of leakage caused by metal terminals accidentally touching the shell of other equipment, adding a 'safety lock' to your circuit.

Primarily constructed with high-quality brass tin-plated metal terminals and a durable nylon insulated housing, it is a key accessory for fast, secure, and reliable wire connections. Metal Conductors: Manufactured from high-purity brass, ensuring excellent electrical conductivity. The surface is electrolytically tinplated, which not only greatly enhances corrosion resistance and oxidation resistance, but also effectively reduces contact resistance and prevents heat generation. Insulated shell: The outer layer is made of high-strength, flame-retardant nylon (Polyamide) material. This material has excellent insulation properties, high temperature resistance, and chemical resistance, effectively preventing the risk of short circuits and leakage. Exquisite craftsmanship: Through precision stamping and injection molding processes, it ensures that the dimensions of each terminal are accurate and the structure is tight, and the metal sleeve and insulation jacket are seamlessly docked and not easy to fall off.

When you encounter "not enough space" or "the wire needs to turn" when wiring, it is when the flag terminal shows its skills. Industrial control and distribution: In the motor control box and distribution cabinet, when the wires need to be connected to the terminal strip or electrical components in a 90-degree direction, the flag terminal can avoid excessive bending of the wire, making the wiring in the cabinet cleaner and the heat dissipation space larger. Automotive circuit maintenance and modification: The space behind the car dashboard, inside the doors, engine compartment and other locations is extremely limited. The right-angled design of the flag terminal allows it to fit snugly against the mounting surface, making it easy to connect or repair line branches in confined spaces.

Household appliance manufacturing and maintenance: such as washing machines, refrigerators, air conditioners and other equipment inside the motor and compressor wiring, often due to the space constraints of the back cover, low profile connection is required, flag terminals are the ideal choice. Automation and Electronic Equipment: In high-density wiring scenarios such as PLC control cabinets, sensor wiring, and power supplies, the use of flag terminals can effectively save panel space and ensure neat and orderly wiring.
