Nylon Fully Insulated Male Spade Connector

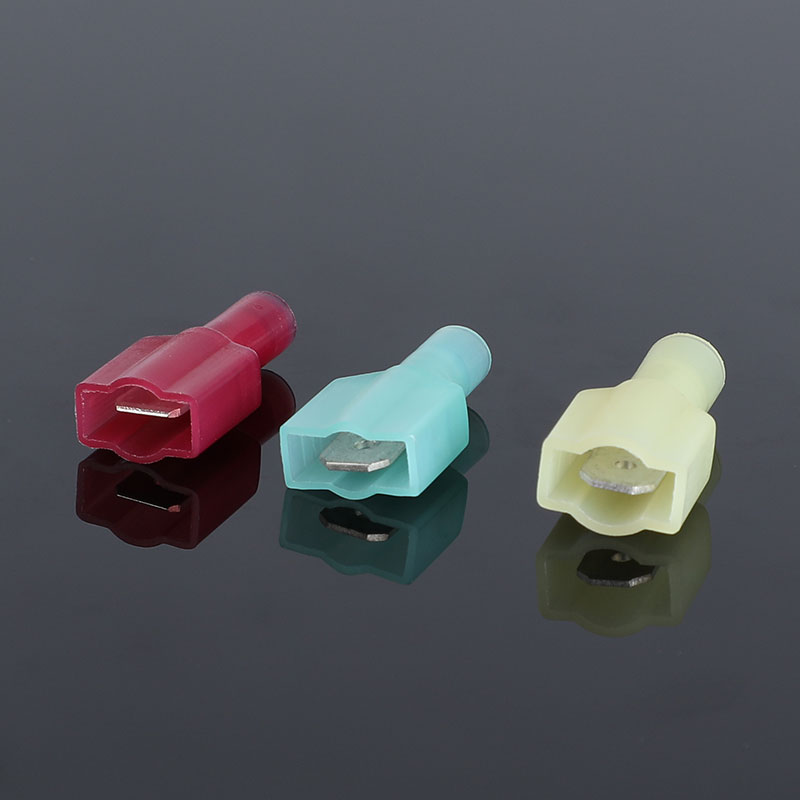

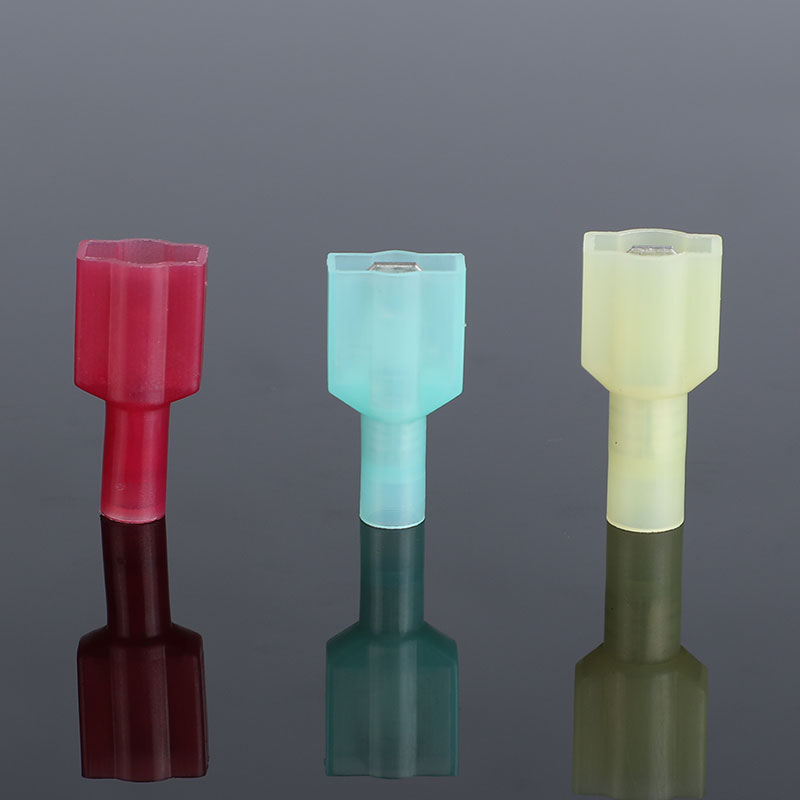

DESCRIPTION - NYLON FULLY INSULATED MALE SPADE CONNECTOR
Product Introduction
Spade design allows for quick connection or disconnection.Male/female spade connectors can be easily connected and disconnected, suitable for frequent connections. It’s a quick and reliable crimp-type wire connections.
Works great with all types of electrical projects, including home, automotive, scientific, and industrial applications. Quick disconnect terminals are essential for electrical termination and power transfer.
Product Description
Conforms to all relevant US and European standards, including automotive and marine wiring standards.
The difference between MDFN male disconnect is the brass thickness.
MDFNY(0.8mm) is made of one layer-0.8mm thickness brass,while MDFN(0.8mm) is made of two layers-0.4mm thickness brass,so MDFNY has a better performance on the electrical conductivity.
Thick brass in the wire connectors ensures strong secure crimping every time, providing small voltage drop, high current flow, and less heat. These will prevent short circuits and problematic wiring.
Product Specification:
Nylon connectors are color coded according to industry standards.Three Different Colors indicates different gauge, also for easy identification.
Red terminals for 22-18AWG,,0.5-1.5mm²
Blue terminals for 16-14AWG,1.5-2.5mm²
Yellow terminals for 12-10AWG, 2.5-4mm²
Maximum Working Temperate: 220°F (105°C)
Maximum Voltage: 400V
Accept a combination of solid and stranded wires
Application
Compliant with all electrical standards, perfect for house and automobile applications, whether you are working on your vehicle, home or scientific project, our quick connector wire connectors will ensure sure everything bond correctly
Company Introduction
Yueqing Gaopeng Electric Co.,Ltd. was founded in 2016, located in Wenzhou city, Zhejiang Province. We have engaged in design，development and production of various electrical terminals and wiring accessories.
Gaopenghas a highly skilled management team, diligent and conscientious employees.
Ourcompany has passed IS09001 international quality certification, approved by RoHS , CE and SGS .
Wecan provide customized services according to your demands ,including mould,packaging and color.
Technical Parameters
|
ITEM NO |
Nema Tab |
WIRE SECTION |
DIMENSION mm |
PCS/ PACK |
COLOR |
EXPLANATION | ||||||
| A.W.G | mm² | B | L | E | D | d1 | T | |||||
| FDFNY1.25-250 | 0.8x6.35 | 22-16 | 0.5-1.5 | 11.0 | 24.0 | 10.0 | 4.4 | 1.7 | 0.8 | 500 | Purple | Material:Brass Insulation:Nylon(PA66) Temperature:105℃ Voltage:400V |
| FDFNY2-250 | 0.8x6.35 | 16-14 | 1.5-2.5 | 11.0 | 24.0 | 10.0 | 4.4 | 2.3 | 0.8 | 500 | Green | |
| FDFNY5.5-250 | 0.8x6.35 | 12-10 | 4.0-6.0 | 11.0 | 24.0 | 10.0 | 6.3 | 3.4 | 0.8 | 500 | Yellow | |
| FDFNYA1.25-250 | 0.8×6.35 | 22-16 | 0.5-1.5 | 8.8 | 21.3 | 10.3 | 4.2 | 1.7 | 0.4 | 1000 | Red | |
| FDFNYA2-250 | 0.8x6.35 | 16-14 | 1.5-2.5 | 8.8 | 21.3 | 10.3 | 4.2 | 2.3 | 0.4 | 1000 | Blue | |
| FDFNYA5.5-250 | 0.8x6.35 | 12-10 | 4.0-6.0 | 8.8 | 22.3 | 10.3 | 6.1 | 3.4 | 0.4 | 500 | Yellow | |
