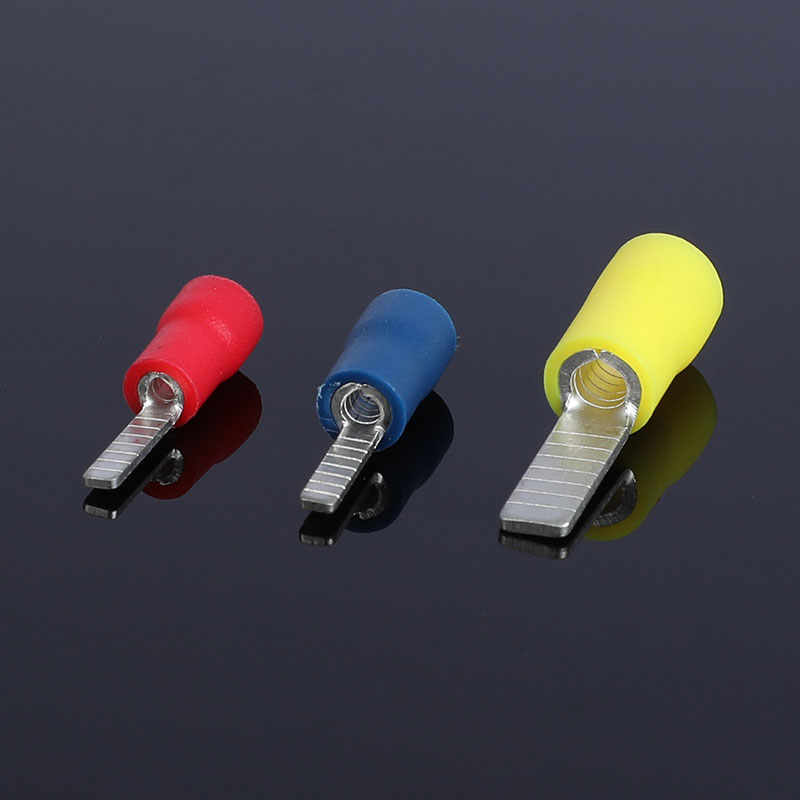

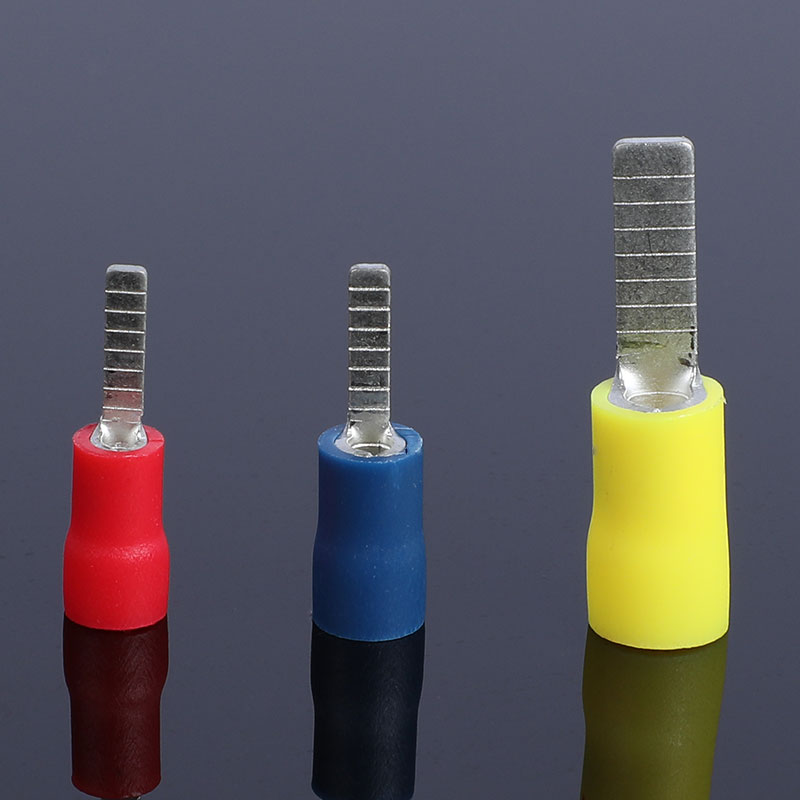

PVC Insulated Blade Terminal
DBV blade terminals provide a flat copper contact with PVC insulation for wire termination.
Send the DBV item code, blade width and length, and wire size. Include receiving-terminal details and quantities for a matched blade-terminal order.
- Series
- DBV
- Contact
- Copper
- Insulation
- PVC
DBV PVC Insulated Blade Terminals
The dimension table distinguishes blade width, contact length and barrel dimensions. Match those dimensions to the receiving terminal and conductor rather than treating every blade terminal as identical.
For DBV PVC Insulated Blade Terminals supply enquiries, compare blade and barrel dimensions before selecting the order reference. Keep each variant separate in your parts list.
Product specification and selection reference
- Series
- DBV
- Contact
- Copper
- Insulation
- PVC

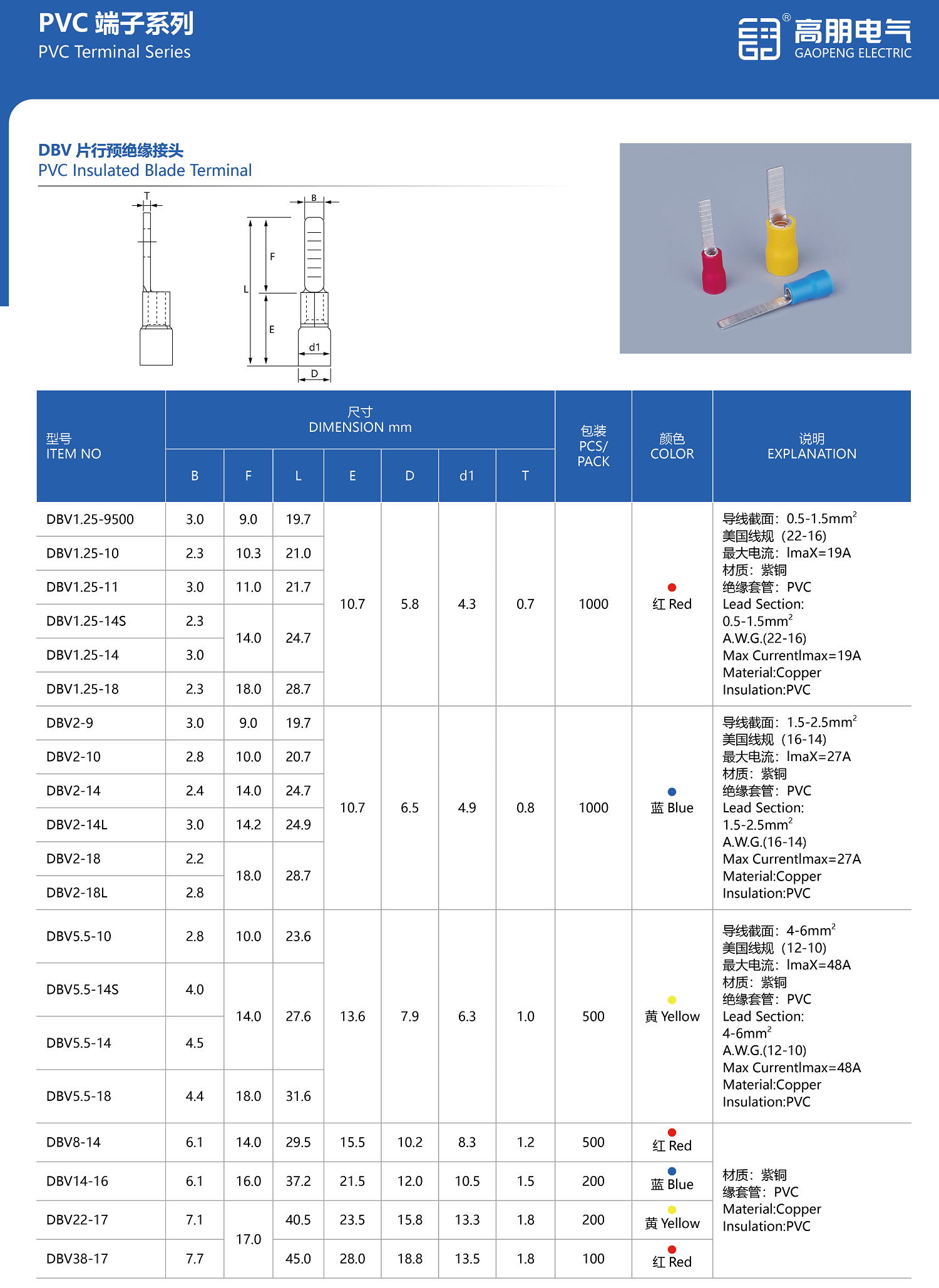

| ITEMNO | DIMENSIONmm | PCS/ PACK |
COLOR | EXPLANATION | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| B | F | L | E | D | d1 | T | ||||
| DBV1.25-9500 | 3.0 | 9.0 | 19.7 | 10.7 | 5.8 | 4.3 | 0.7 | 1000 | Red | LeadSection: 0.5-1.5mm² A.W.G.(22-16) MaxCurrentlmax=19A Material:Copper Insulation:PVC |
| DBV1.25-10 | 2.3 | 10.3 | 21.0 | |||||||
| DBV1.25-11 | 3.0 | 11.0 | 21.7 | |||||||
| DBV1.25-14S | 2.3 | 14.0 | 24.7 | |||||||
| DBV1.25-14 | 3.0 | |||||||||
| DBV1.25-18 | 2.3 | 18.0 | 28.7 | |||||||
| DBV2-9 | 3.0 | 9.0 | 19.7 | 10.7 | 6.5 | 4.9 | 0.8 | 1000 | Blue | LeadSection: 1.5-2.5mm² A.W.G.(16-14) MaxCurrentlmax=27A Material:Copper Insulation:PVC |
| DBV2-10 | 2.8 | 10.0 | 20.7 | |||||||
| DBV2-14 | 2.4 | 14.0 | 24.7 | |||||||
| DBV2-14L | 3.0 | 14.2 | 24.9 | |||||||
| DBV2-18 | 2.2 | 18.0 | 28.7 | |||||||
| DBV2-18L | 2.8 | |||||||||
| DBV5.5-10 | 2.8 | 10.0 | 23.6 | 13.6 | 7.9 | 6.3 | 1.0 | 500 | Yellow | LeadSection: 4-6mm² A.W.G.12-10) MaxCurrentlmax=48A Material:Copper Insulation:PVC |
| DBV5.5-14S | 4.0 | 14.0 | 27.6 | |||||||
| DBV5.5-14 | 4.5 | |||||||||
| DBV5.5-18 | 4.4 | 18.0 | 31.6 | |||||||
| DBV8-14 | 6.1 | 14.0 | 29.5 | 15.5 | 10.2 | 8.3 | 1.2 | 500 | Red | Material:Copper Insulation:PVC |
| DBV14-16 | 6.1 | 16.0 | 37.2 | 21.5 | 12.0 | 10.5 | 1.5 | 200 | Blue | |
| DBV22-17 | 7.1 | 17.0 | 40.5 | 23.5 | 15.8 | 13.3 | 1.8 | 200 | Yellow | |
| DBV38-17 | 7.7 | 45.0 | 28.0 | 18.8 | 13.5 | 1.8 | 100 | Red | ||
Choose the version for your application
How do I match a blade terminal to the receiving connection?
- Match the blade width, thickness and insertion length to the receiving terminal.
- Specify the conductor construction and cross-section so the wire barrel and crimp profile can be checked.
- Allow for the sleeve or exposed-contact clearance and identify the full item code for each order quantity.
Prepare a bulk-order enquiry
Identify DBV PVC Insulated Blade Terminals using the full product reference and the original photographs. Include the quantity required for each variant and the delivery destination.
Ask our team to confirm pricing, sample availability, minimum order quantity and lead time for that specification. Published dimensions identify a part; they do not establish compatibility with every installation.
Source from the Gaopeng team
Yueqing Gaopeng Electric Co., Ltd. has designed, developed and manufactured electrical terminals and connectors in Yueqing, Zhejiang since 2016.
The company publishes in-house mold design and making, automated production and testing equipment, and OEM/ODM services. Discuss the selected product, quantities and documentation with the Gaopeng team.
OEM / ODM for your order
Gaopeng provides OEM and ODM services alongside its standard product range. Share the changes needed for your application so our team can review the specification, feasibility and order requirements.
Product specification
Match the blade width, thickness and insertion length to the receiving terminal. Specify the conductor construction and cross-section so the wire barrel and crimp profile can be checked.
Identification and supply format
Describe any requested colors, markings or packaging for DBV PVC Insulated Blade Terminals. Our team will confirm which changes are available for the selected product.
Quantity and documentation
State the order quantity and destination market. Identify any drawing, sample or application-specific documentation that should be reviewed before the quotation.
DBV PVC Insulated Blade Terminals FAQ
How do I match a blade terminal to the receiving connection?
The dimension table distinguishes blade width, contact length and barrel dimensions. Match those dimensions to the receiving terminal and conductor rather than treating every blade terminal as identical. Match the blade width, thickness and insertion length to the receiving terminal.
Can I request bulk pricing for DBV PVC Insulated Blade Terminals?
Yes. Send the exact product reference, blade and barrel dimensions, quantities for each version and delivery destination. Gaopeng will confirm the price and applicable order conditions for the requested specification.
Can I request a sample or a customized version?
Ask for sample availability for the exact DBV PVC Insulated Blade Terminals reference. Describe any packaging, marking or specification changes separately; OEM/ODM feasibility, sample contents, charges and timing are confirmed with the quotation.
Which documents should I request for this product?
Identify the drawing, dimensions and application requirements for the selected part. Request the applicable test or compliance documents where needed. Company-level quality records do not establish the electrical rating, sealing performance or compatibility of every product variant.
DBV quotation
Send the DBV PVC Insulated Blade Terminals reference, blade and barrel dimensions and quantities required. Contact our team for pricing, sample availability and order details.
