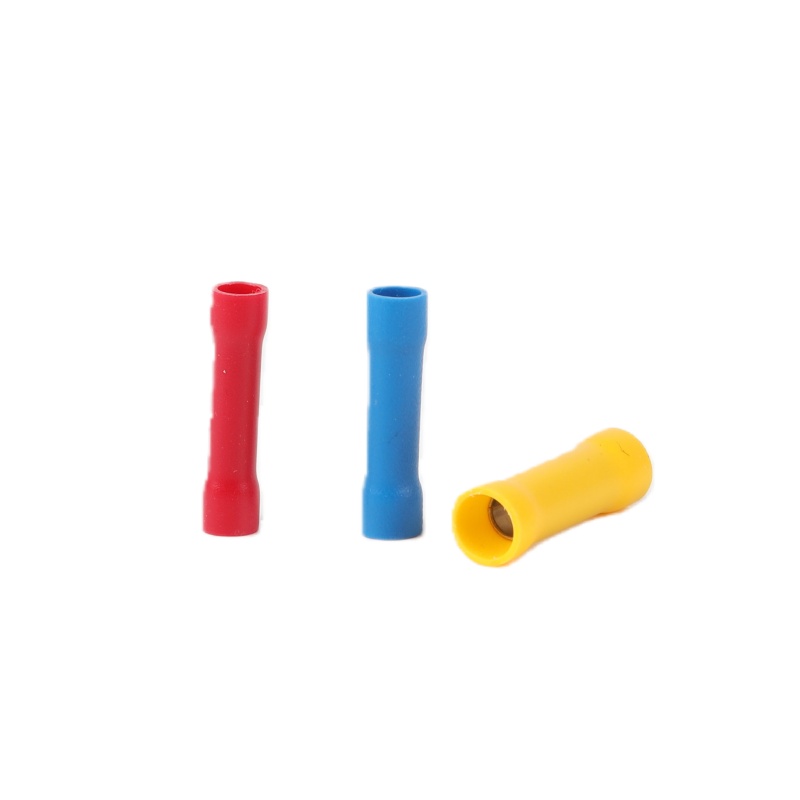

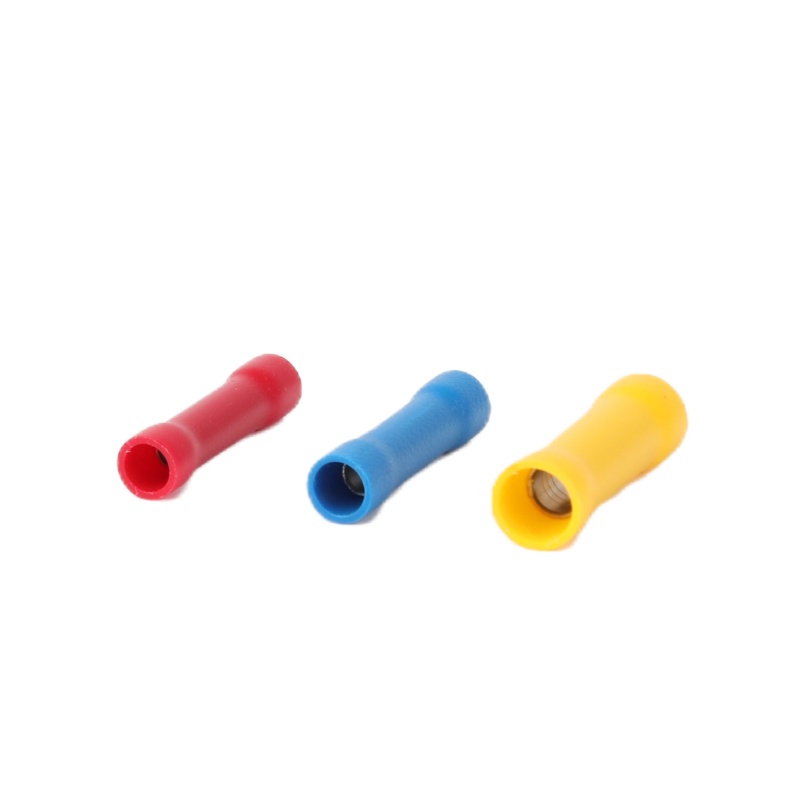

PVC Insulated Butt Connector
The core material of Gaopeng BV intermediate connector is copper, which is known for its excellent conductivity and durability. Copper is the best choice for electrical connections because it minimizes resistance and ensures efficient power transmission. This feature is particularly important in applications where performance and reliability are critical. BV intermediate connectors are designed to withstand a variety of environmental conditions, making them suitable for indoor and outdoor use. Its rugged structure ensures service life and reduces the need for frequent replacement and maintenance.
Insulation is another key aspect of the Gaopeng BV intermediate connector series. Each connector is insulated with high-quality PVC, which provides excellent protection against moisture, dust and other environmental factors. This insulation not only enhances the safety of the electrical connection, but also helps improve the overall performance of the connector. The PVC material is known for its elasticity and ability to withstand extreme temperatures, ensuring that the BV intermediate connector maintains its integrity and functionality for a long time. This combination of copper and PVC makes these connectors a reliable choice for a variety of electrical applications.
The versatility of Gaopeng's BV intermediate connector series is reflected in its wide range of models. Each model is designed to accommodate different wire diameters and electrical loads, allowing solutions to be tailored to specific project needs. Whether you need a connector for low-voltage applications or a connector for more demanding electrical systems, the BV series has a model that suits you. This adaptability makes BV intermediate connectors ideal for use in residential, commercial and industrial environments, giving users confidence that the products they are using can meet their unique requirements.
The Gaopeng BV Intermediate Connector range represents the perfect blend of quality, versatility and reliability. Focusing on high-performance materials such as copper and PVC, these connectors are designed to provide excellent results in a variety of applications. Its wide range of models ensures that there is a suitable choice for every project, making it an indispensable tool for professionals in the electrical industry. By choosing Gaopeng BV Intermediate Connectors, you will invest in a product that not only meets but also exceeds industry standards, ensuring safe and efficient electrical connections for years to come.

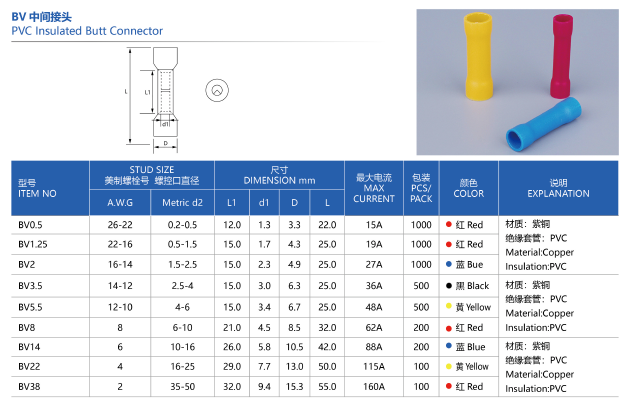

Technical Parameters
| ITEM NO | STUD SIZE | DIMENSION mm | MAX CURRENT |
PCS/ PACK |
COLOR | EXPLANATION | ||||
| A.W.G | Metric d2 | L1 | d1 | D | L | |||||
| BV0.5 | 26-22 | 0.2-0.5 | 12.0 | 1.3 | 3.3 | 22.0 | 15A | 1000 | Red | Material:Copper Insulation:PVC |
| BV1.25 | 22-16 | 0.5-1.5 | 15.0 | 1.7 | 4.3 | 25.0 | 19A | 1000 | Red | |
| BV2 | 16-14 | 1.5-2.5 | 15.0 | 2.3 | 4.9 | 25.0 | 27A | 1000 | Bue | |
| BV3.5 | 14-12 | 2.5-4 | 15.0 | 3.0 | 6.3 | 25.0 | 36A | 500 | Black | Material:Copper Insulation:PVC |
| BV5.5 | 12-10 | 4-6 | 15.0 | 3.4 | 6.7 | 25.0 | 48A | 500 | Yellow | |
| BV8 | 8 | 6-10 | 21.0 | 4.5 | 8.5 | 32.0 | 62A | 200 | Red | |
| BV14 | 6 | 10-16 | 26.0 | 5.8 | 10.5 | 42.0 | 88A | 200 | Blue | Material:Copper Insulation:PVC |
| BV22 | 4 | 16-25 | 29.0 | 7.7 | 13.0 | 50.0 | 115A | 100 | Yellow | |
| BV38 | 2 | 35-50 | 32.0 | 9.4 | 15.3 | 55.0 | 160A | 100 | Red | |
