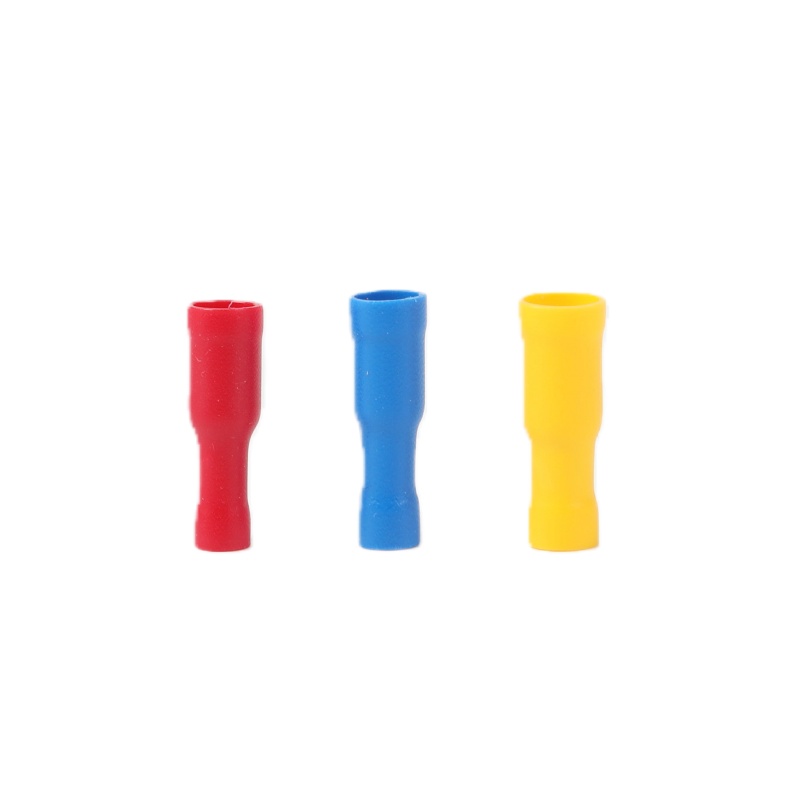

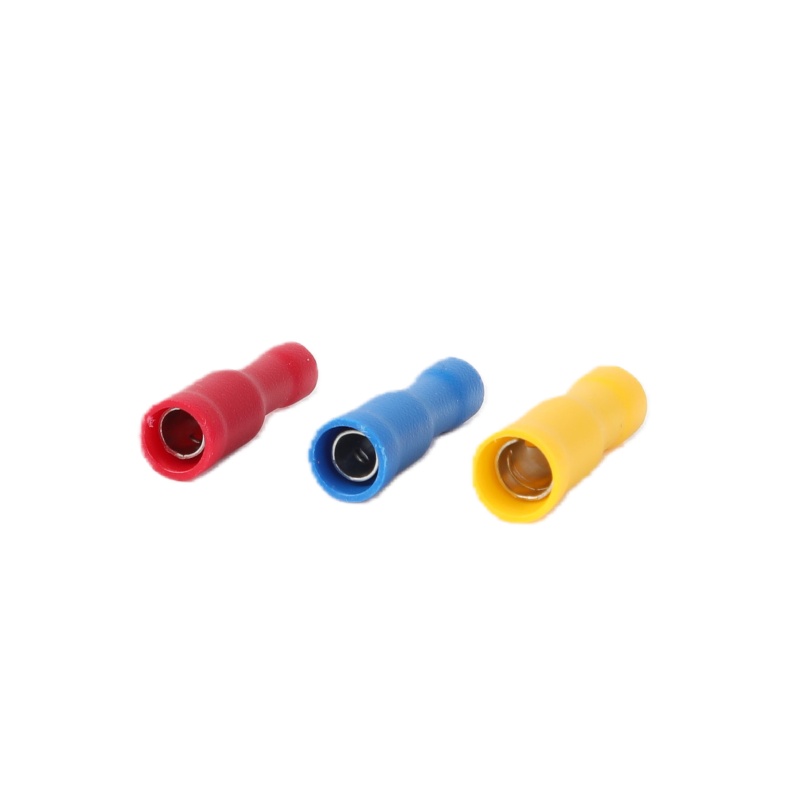

PVC Insulated Female Bullet Connector
FRD Bullet (Female) Fully Insulated Connectors are made from high-quality brass, a material known for its excellent conductivity and durability. Brass connectors are not susceptible to corrosion, ensuring a long-lasting connection that will stand the test of time. This is especially important in environments where moisture and other corrosive elements may be present. By choosing FRD connectors, users can rest assured knowing that their electrical connections are strong and reliable, minimizing the risk of failures that could lead to costly repairs or safety hazards.
Insulation is a critical aspect of any electrical connector, and the FRD Bullet (Female) Fully Insulated Connectors excel in this regard. The insulation is made from high-grade PVC, which provides excellent protection against electric shock and short circuits. This fully insulated design not only increases safety, but also improves the overall performance of the connector by reducing the risk of accidental contact with live wires. The combination of brass and PVC in the FRD connector ensures that users can achieve optimal performance while maintaining safety standards for electrical systems.
In addition to superior materials and design, the FRD Bullet (Female) Fully Insulated Connector is incredibly simple to use. The bullet shape allows for a quick and direct connection, making it ideal for professional electricians and hobbyists alike. Whether you're dealing with automotive wiring, home electrical systems, or industrial applications, the FRD connector provides a hassle-free solution that saves time and effort. Its compatibility with a wide range of wire sizes further enhances its usability, making it a versatile addition to any tool kit.
Gaopeng's FRD Bullet (Female) Fully Insulated Connectors are a top choice for anyone looking for reliable, efficient electrical connections. With durable brass construction, high-quality PVC insulation, and a user-friendly design, the connectors are designed to meet the demands of modern electrical applications. Whether you are an experienced professional or a DIY enthusiast, investing in FRD connectors will ensure that your projects are completed with the highest safety and efficiency. Choose FRD Bullet (Female) Fully Insulated Connectors for your next electrical project and experience the difference in quality and performance.

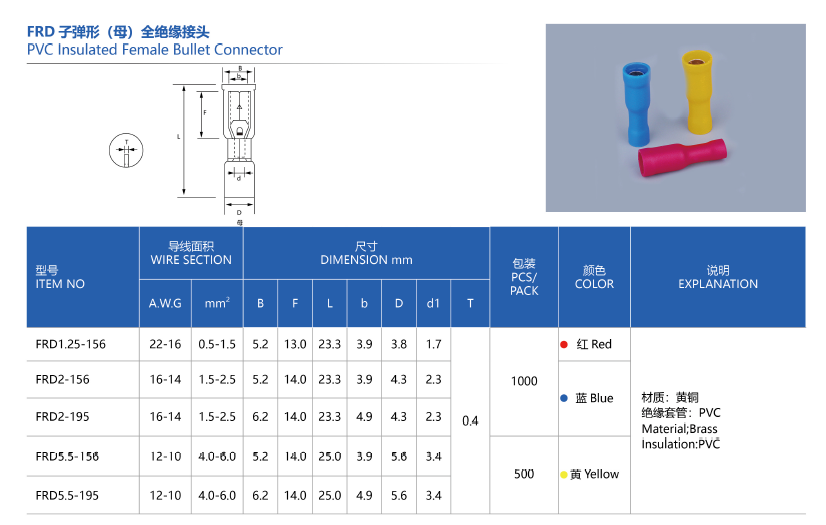

Technical Parameters
| ITEM NO | WIRE SECTION | DIMENSION mm |
PCS/ PACK |
COLOR | EXPLANATION | |||||||
| A.W.G | mm2 | B | F | L | b | D | d1 | T | ||||
| FRD1.25-156 | 22-16 | 0.5-1.5 | 5.2 | 13.0 | 23.3 | 3.9 | 3.8 | 1.7 | 0.4 | 1000 | Red | Material;Brass Insulation:PVC |
| FRD2-156 | 16-14 | 1.5-2.5 | 5.2 | 14.0 | 23.3 | 3.9 | 4.3 | 2.3 | Blue | |||
| FRD2-195 | 16-14 | 1.5-2.5 | 6.2 | 14.0 | 23.3 | 4.9 | 4.3 | 2.3 | ||||
| FRD5.5-156 | 12-10 | 4.0-6.0 | 5.2 | 14.0 | 25.0 | 3.9 | 5.6 | 3.4 | 500 | Yellow | ||
| FRD5.5-195 | 12-10 | 4.0-6.0 | 6.2 | 14.0 | 25.0 | 4.9 | 5.6 | 3.4 | ||||
