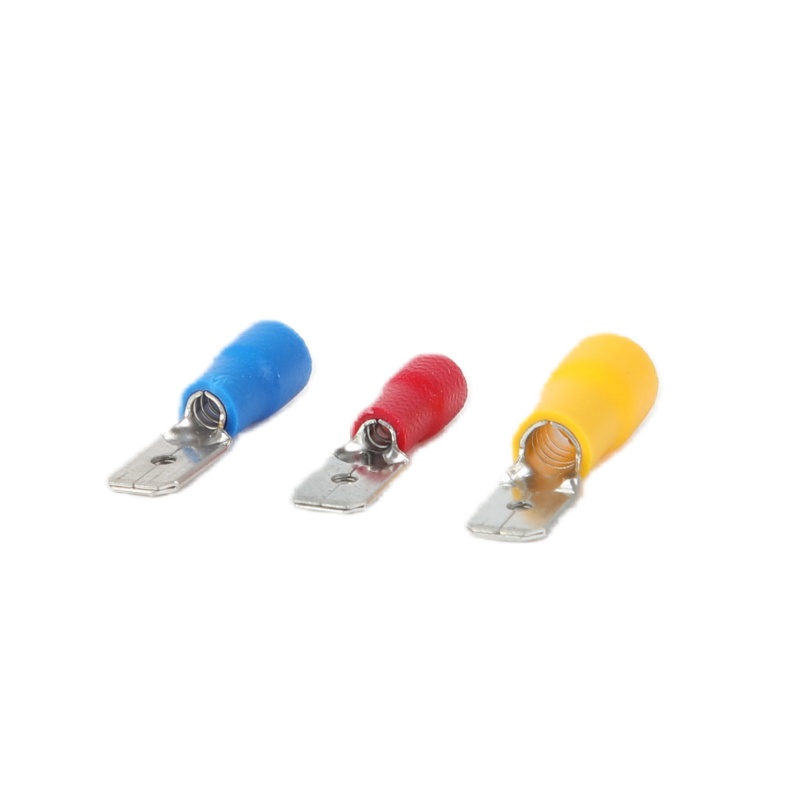

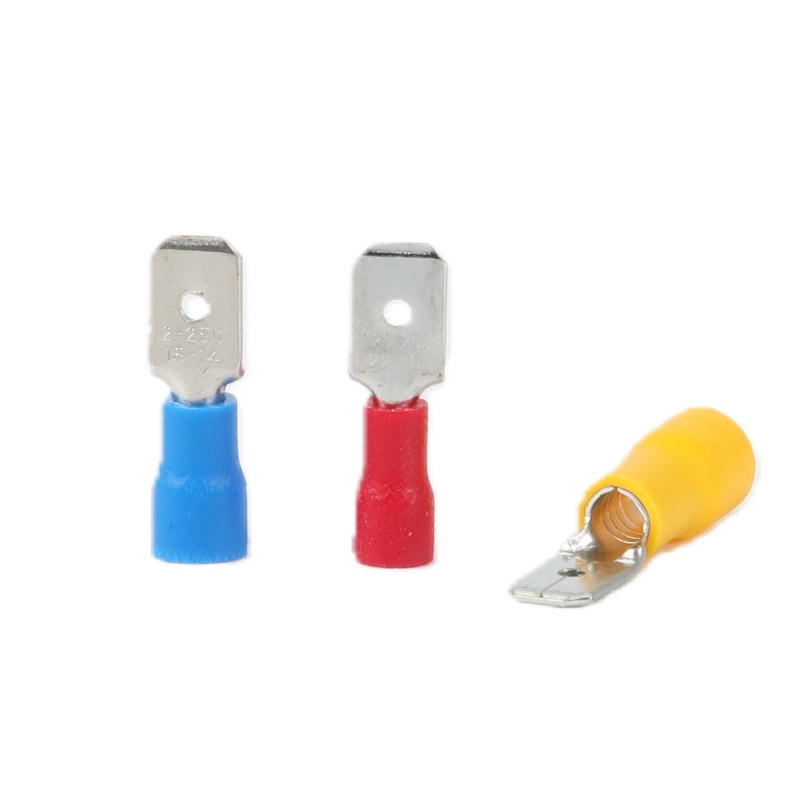

PVC Insulated Male Spade Connector
The construction of the PVC Insulated Male Spade Connectors is a testament to their quality and reliability. Made from high-grade brass, these connectors offer excellent electrical conductivity, which is essential for minimizing energy loss in electrical systems. Brass is known for its corrosion resistance, ensuring that the connectors maintain their integrity over time, even in harsh environments. This durability is further enhanced by the PVC insulation, which not only provides a protective barrier against environmental factors, but also ensures safety by preventing accidental short circuits. The combination of brass and PVC makes these connectors a top choice for many electrical applications.
One of the main features of the PVC Insulated Male Spade Connector is its ease of use. The design allows for quick and direct connections, which is especially beneficial for time-sensitive projects. The male spade design enables users to easily connect and disconnect wires, allowing for maintenance and modifications without the use of specialized tools. This user-friendly feature is especially beneficial for those who may not have extensive electrical work experience, as it simplifies the process of creating secure connections. The availability of different models, such as the MDD1.25-250, MDD2-250, and MDD5.5-250, ensures that users can select the appropriate size and capacity for their specific application.
In addition to their practical benefits, PVC Insulated Male Spade Connectors also help improve the overall safety of electrical systems. The PVC insulation prevents electric shock, protecting both the user and the equipment. This is especially important in environments where moisture or other conductive materials may be present. By using these connectors, professionals can ensure that their installations meet safety standards, reducing the risk of accidents and improving the reliability of the entire electrical system. The combination of safety features and high-quality materials make these connectors an indispensable part of any electrical tool kit.
Gaopeng’s PVC insulated male spade connector is an essential part of the world of electrical connections. With its solid brass construction, effective PVC insulation, and user-friendly design, it meets the diverse needs of a wide range of applications while ensuring safety and reliability. Whether you are a professional electrician or a DIY enthusiast, investing in high-quality connectors such as the MDD1.25-250, MDD2-250, and MDD5.5-250 models will undoubtedly improve the performance and lifespan of your electrical projects. As technology continues to advance, the demand for reliable electrical components will only increase, making PVC insulated male spade connectors a must-have item for anyone doing electrical work.
Technical Parameters
| ITEM NO | Nema Tab | DIMENSION mm |
PCS/ PACK |
COLOR | EXPLANATION | |||||
| B | L | E | D | d1 | T | |||||
| MDD1.25-110(5 | 0.5×2.8 | 2.8 | 17.7 | 10.0 | 3.8 | 1.7 | 0.5 | 1000 | Red | Lead Section:0.5~1.5mm2 (AW.G.22~16)Max Currentlmax=19A Material:Brass Insulation:PVC |
| MDD1.25-110(8) | 0.8×2.8 | 0.8 | ||||||||
| MDD1.25-187(5) | 0.5×4.75 | 4.75 | 20.0 | 0.5 | ||||||
| MDD1.25-187(8) | 0.8×4.75 | 0.4×2 | ||||||||
| MDD1.25-187(8L) | 0.8×4.75 | 4.75 | 20.0 | 10.0 | 4.3 | 2.3 | 0.8 | |||
| MDD1.25-250 | 0.8×6.35 | 6.35 | 21.0 | 10.0 | 3.8 | 1.7 | 0.4×2 | |||
| MDD2-110(5) | 0.5×2.8 | 2.8 | 17.7 | 10.0 | 4.3 | 2.3 | 0.5 | 1000 | Blue | Lead Section:1.5-2.5mm2 (AW.G.16~14)Max Currentlmax=27A Material:Brass Insulation:PVC |
| MDD2-110(8) | 0.8×2.8 | 0.8 | ||||||||
| MDD2-187(5) | 0.5×4.75 | 4.75 | 20.0 | 0.5 | ||||||
| MDD2-187(8) | 0.8×4.75 | 0.4×2 | ||||||||
| MDD2-187(8L)） | 0.8×4.75 | 4.75 | 20.0 | 3.4 | 0.8 | |||||
| MDD2-250 | 0.8×6.35 | 6.35 | 21.0 | 2.3 | 0.4×2 | |||||
| MDD5.5-110(5) | 0.5×2.8 | 2.8 | 20.0 | 13.0 | 5.7 | 3.4 | 0.5 | 1000 | Yellow | Lead Section:4-6mm2 (AW.G.12-10)Max Currentlmax=48A Material:Brass Insulation:PVC |
| MDD5.5-110(8) | 0.8×2.8 | 0.8 | ||||||||
| MDD5.5-187(5) | 0.5×4.75 | 4.75 | 22.0 | 0.5 | ||||||
| MDD5.5-187(8) | 0.8×4.75 | 0.4×2 | ||||||||
| MDD5.5-250 | 0.8×6.35 | 6.35 | 23.0 | 0.4×2 | 500 | |||||
