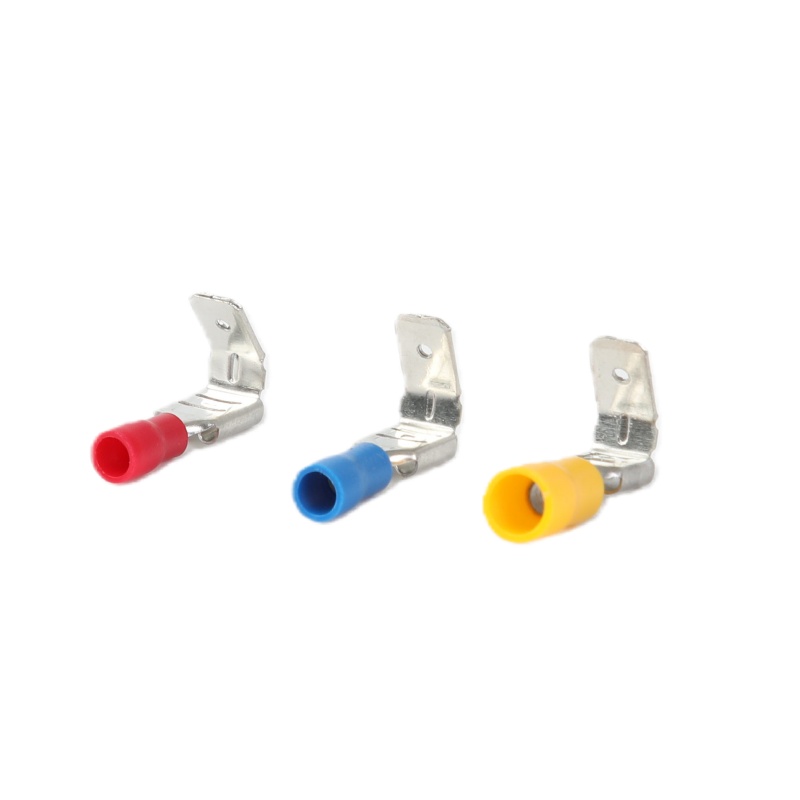

PVC Insulated Piggyback Male Female Terminal
PBDD piggyback connectors combine male and female spade interfaces in one PVC-insulated termination.
Share the PBDD code, mating-tab sizes and branch layout. Include the conductor sizes and order quantities needed for the piggyback connection.
- Series
- PBDD
- Contact
- Tin-plated brass
- Insulation
- PVC
- Interface
- Male and female spade

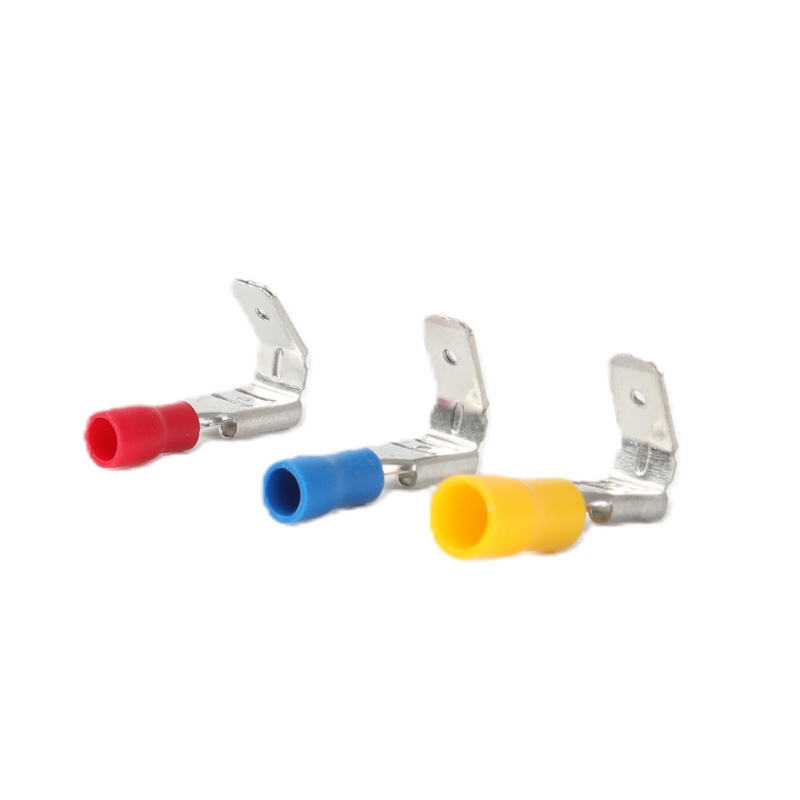

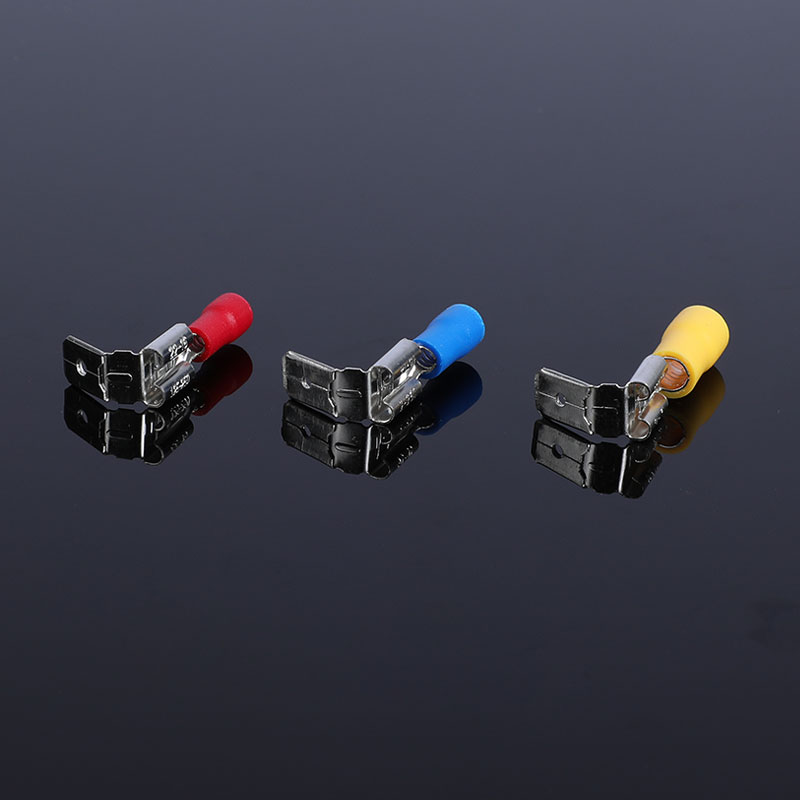

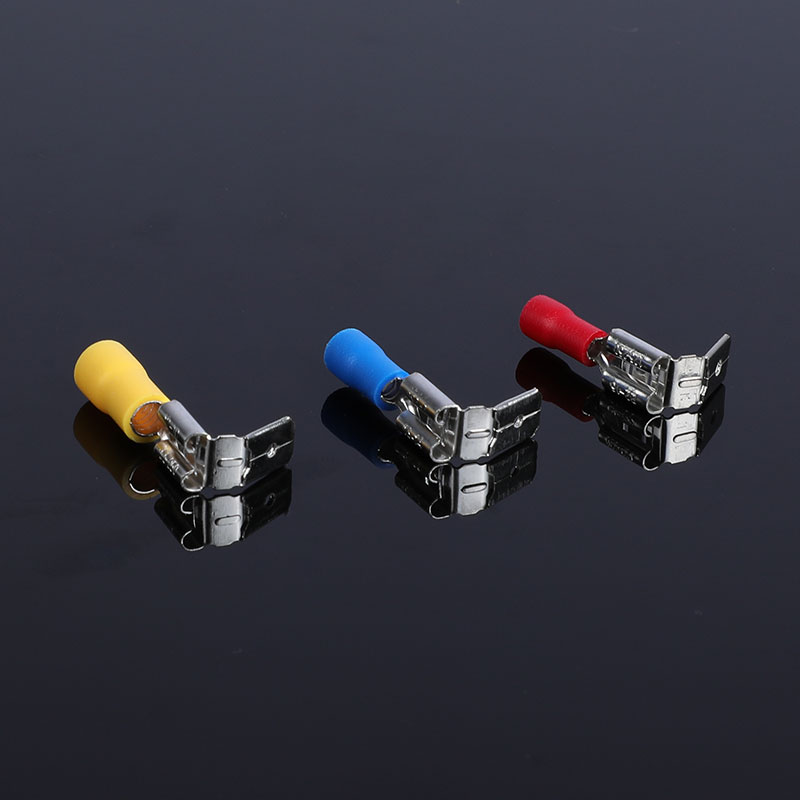

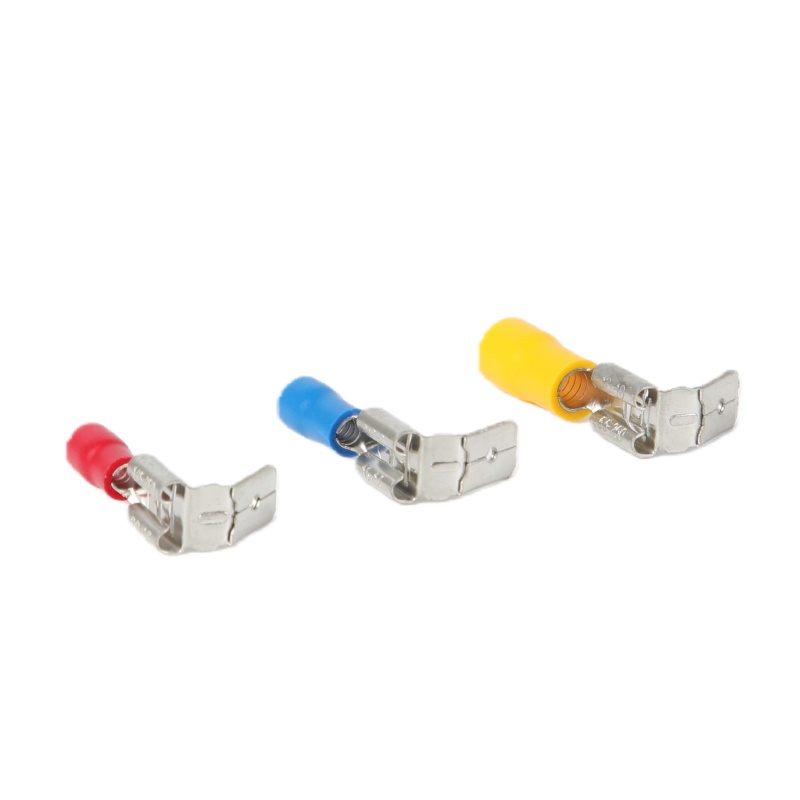

PBDD PVC Piggyback Spade Connectors
The additional tab provides a branching connection while retaining a detachable spade interface. Confirm the mating contact, conductor size and available installation space for the selected variant.
For PBDD PVC Piggyback Spade Connectors supply enquiries, compare tab sizes and branching layout before selecting the order reference. Keep each variant separate in your parts list.
Product specification and selection reference
- Series
- PBDD
- Contact
- Tin-plated brass
- Insulation
- PVC
- Interface
- Male and female spade

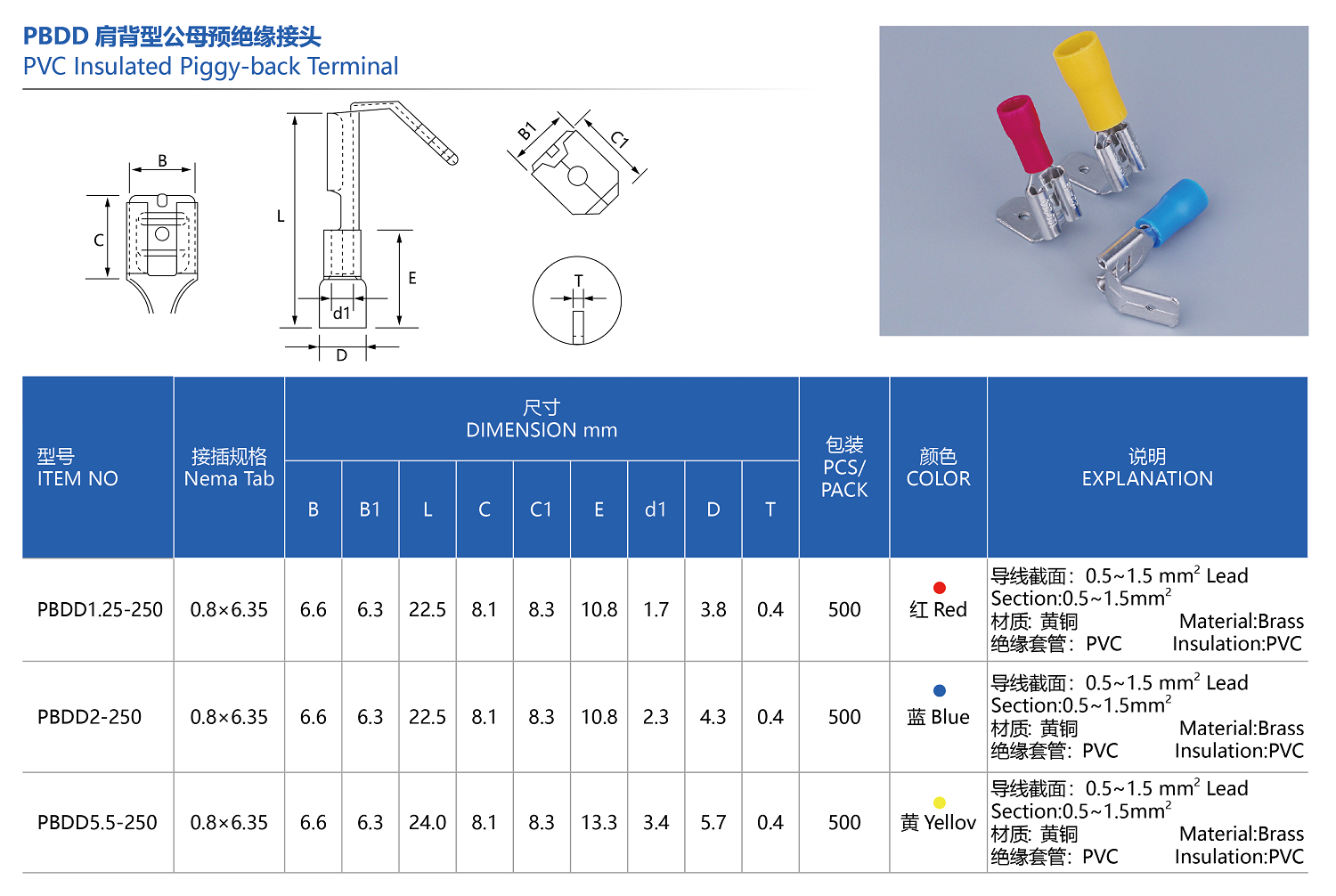

| ITEM NO | Nema Tab | DIMENSION mm | PCS/PACK | COLOR | EXPLANATION | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B | B1 | L | C | C1 | E | d1 | D | T | |||||
| PBDD1.25-250 | 0.8×6.35 | 6.6 | 6.3 | 22.5 | 8.1 | 8.3 | 10.8 | 1.7 | 3.8 | 0.4 | 500 | Red | Materia：Brass Insulation：PVC |
| PBDD2-250 | 0.8×6.35 | 6.6 | 6.3 | 22.5 | 8.1 | 8.3 | 10.8 | 2.3 | 4.3 | 0.4 | 500 | Blue | Material：Brass Insulation：PVC |
| PBDD5.5-250 | 0.8×6.35 | 6.6 | 6.3 | 24.0 | 8.1 | 8.3 | 13.3 | 3.4 | 5.7 | 0.4 | 500 | Yellow | Material：Brass Insulation：PVC |
