PVC Pre Insulated Female Connector
DESCRIPTION - PVC PREINSULATED FEMALE CONNECTOR
Product Description
Insulated Vinyl female terminal is one of quick disconnects, which can be connected with 6.3mm male spade terminals.
The insulating sleeve material: PVC, which has the function of insulation and flame retardant.Contact material: tin-plated brass, anti-oxidation and anti-corrosion,providing high conductivity and low resistivity.
The end connection is serrated structure, the deep serrated core ensures the large contact area between the wire and the terminal, and the conductivity is more excellent.
That ensures a safe and reliable connection and reduce the occurrence of hidden safety problems.
Product Detail

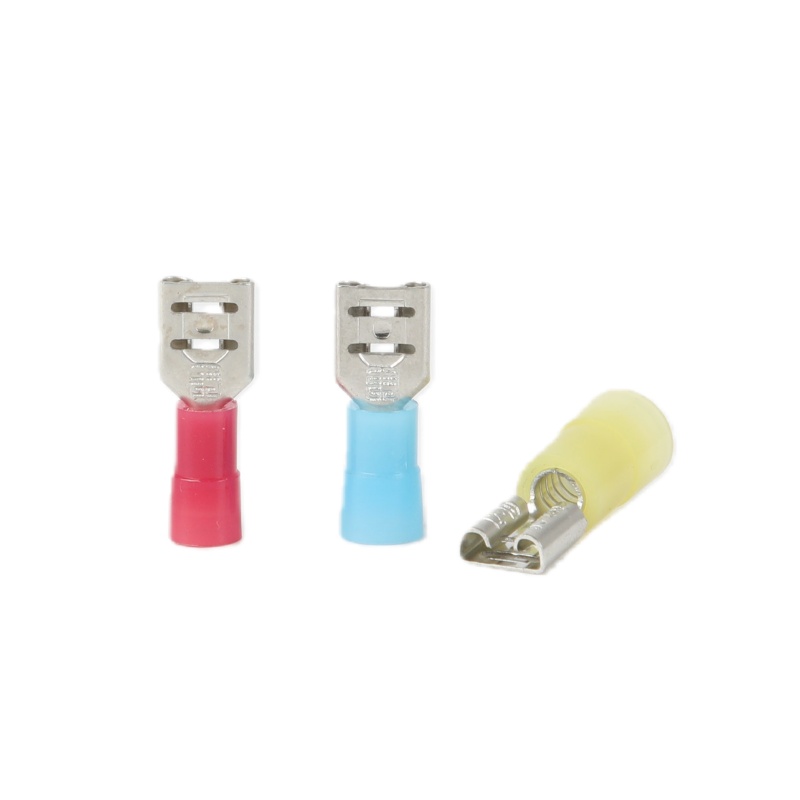

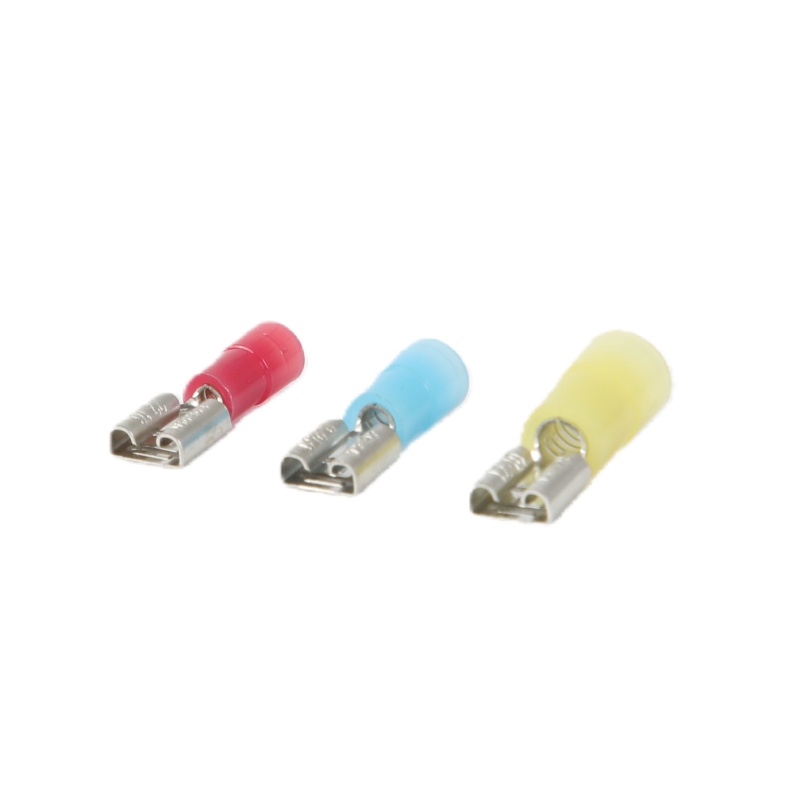

Red: 6.3mm/1/4", model FDD1.25-250, 22-16 AWG
Blue: 6.3mm/1/4", model FDD2-250, 16-14 AWG
Yellow: 6.3mm/1/4", model FDD5.5-250, 12-10 AWG
3 different sizes and wire gauge can meet your daily needs.
Application
The female and male disconnects are perfect for car amps and battery terminals, terminating speaker, car amplifier, home circuit, power distribution cabinets, and car audio equipment and household appliances etc.
When wiring with insulated spade wire terminal, there is no need to solder or use tape, just strip the wire insulation and crimp with a wire crimper, and the wire terminals will be tightly attached to the wires. Providing a clean and quick wiring look for your wire connections.
Company Introduction
Yueqing Gaopeng Electric Co.,Ltd.was founded in 2016, located in Wenzhou city, Zhejiang Province.
We have engaged in design, development and production of various terminals and connectors. Specializing in producing and selling： heat-shrink waterproof terminals, PVC & nylon insulated terminals, SC copper lugs, non-insulated terminals, quick splice wire connectors, lever wire connectors and electrical tools, etc. The company has passed I S O 9 0 0 1 system, CE certification , RoHS standards and SGS certification.
We take pride in providing both OEM/ODM services and a wide range of products.The annual production capacity has several billions and exported to Asia, European, America, Africa,etc.
Technical Parameters

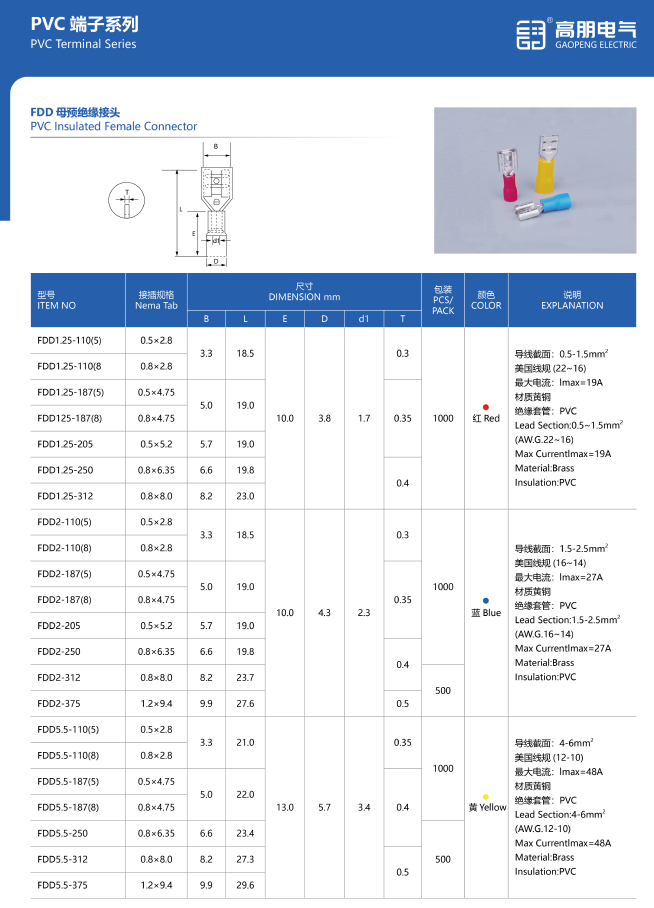

| ITEM NO | Nema Tab | DIMENSION mm |
PCS/ PACK |
COLOR | EXPLANATION | |||||
| B | L | E | D | d1 | T | |||||
| FDD1.25-110(5) | 0.5×2.8 | 3.3 | 18.5 | 10.0 | 3.8 | 1.7 | 0.3 | 1000 | Red |
LeadSection:0.5~1.5mm2 (AW.G.22~16) MaxCurrentlmax=19A Material:Brass Insulation:PVC |
| FDD1.25-110(8) | 0.8×2.8 | |||||||||
| FDD1.25-187(5) | 0.5x4.75 | 5.0 | 19.0 | 0.35 | ||||||
| FDD125-187(8) | 0.8x4.75 | |||||||||
| FDD1.25-205 | 0.5x5.2 | 5.7 | 19.0 | |||||||
| FDD1.25-250 | 0.8x6.35 | 6.6 | 19.8 | 0.4 | ||||||
| FDD1.25-312 | 0.8×8.0 | 8.2 | 23.0 | |||||||
| FDD2-110(5) | 0.5×2.8 | 3.3 | 18.5 | 10.0 | 4.3 | 2.3 | 0.3 | 1000 | Blue |
LeadSection:1.5-2.5mm² (AW.G.16~14) MaxCurrentlmax=27A Material:Brass Insulation:PVC |
| FDD2-110(8) | 0.8×2.8 | |||||||||
| FDD2-187(5) | 0.5×4.75 | 5.0 | 19.0 | 0.35 | ||||||
| FDD2-187(8) | 0.8x4.75 | |||||||||
| FDD2-205 | 0.5×5.2 | 5.7 | 19.0 | |||||||
| FDD2-250 | 0.8x6.35 | 6.6 | 19.8 | 0.4 | ||||||
| FDD2-312 | 0.8x8.0 | 8.2 | 23.7 | 500 | ||||||
| FDD2-375 | 1.2×9.4 | 9.9 | 27.6 | 0.5 | ||||||
| FDD5.5-110(5) | 0.5×2.8 | 3.3 | 21.0 | 13.0 | 5.7 | 3.4 | 0.35 | 1000 | Yellow |
LeadSection:4-6mm (AW.G.12-10) MaxCurrentlmax=48A Material:Brass Insulation:PVC |
| FDD5.5-110(8) | 0.8×2.8 | |||||||||
| FDD5.5-187(5) | 0.5x4.75 | 5.0 | 22.0 | 0.4 | ||||||
| FDD5.5-187(8) | 0.8x4.75 | |||||||||
| FDD5.5-250 | 0.8x6.35 | 6.6 | 23.4 | 500 | ||||||
| FDD5.5-312 | 0.8×8.0 | 8.2 | 27.3 | 0.5 | ||||||
| FDD5.5-375 | 1.2×9.4 | 9.9 | 29.6 | |||||||
