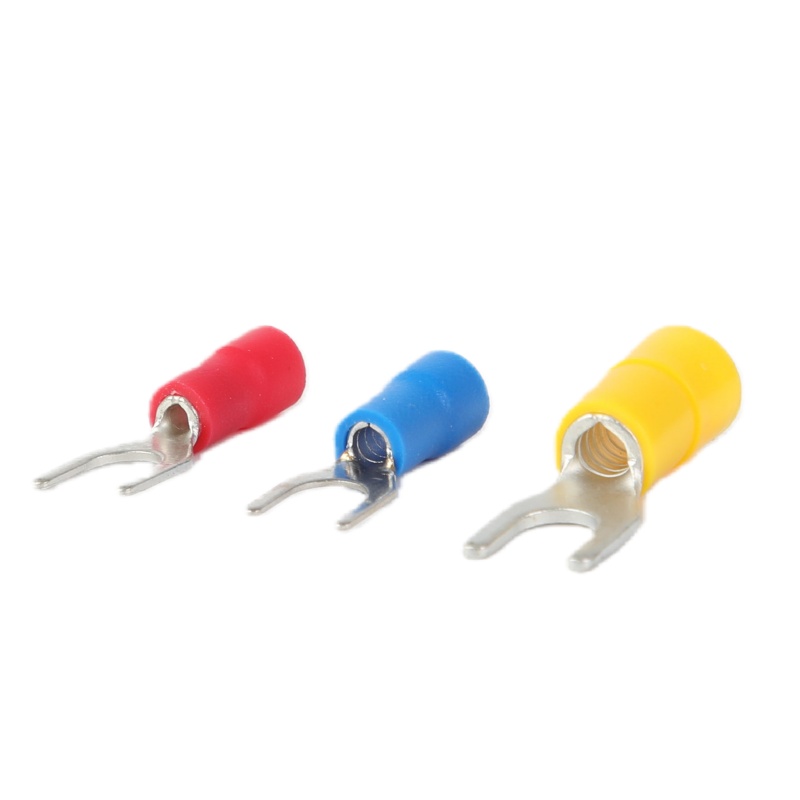

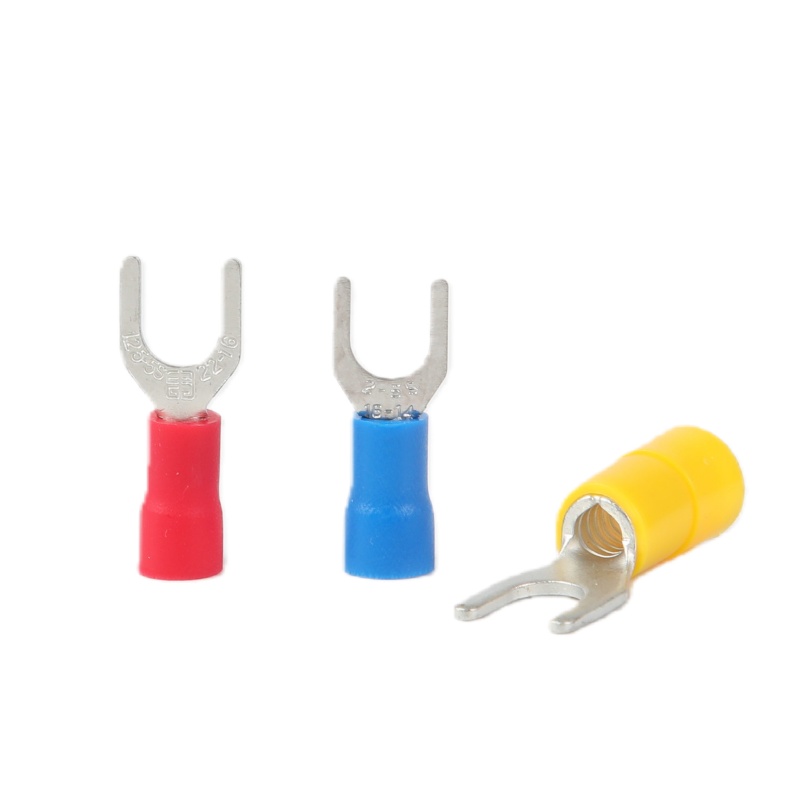

SNY Nylon Insulated Fork Terminal

Precision Connection, Maximum Protection – Engineered for Harsh Electrical Environments

 Pre-Insulated Nylon Sleeve
High-density Nylon sleeves pre-crimped onto terminals, withstand -20°C to +80°C, resisting oil, moisture, and vibration. No heat shrink needed – 50% faster installation.

 Military-Grade Conductivity
Tin-plated brass core, conductivity ≥28%. Tested at 20A continuous current, crimping resistance ≤0.5mΩ.

 Anti-Mismatch Color Coding
Red/blue/yellow sleeves follow industry polarity standards, reducing misconnection risks by 90%.

 3-Second Crimping
Streamlined bullet shape works with standard crimpers (AWG 22-10). Solder-free, reliable connection in 3 seconds.

    PRODUCT DESCRIPTION

    SNY forked nylon insulated terminals are electrical accessories used for wire connections. Their forked design allows for easy screw fastening and removal, while the nylon insulation sleeve provides electrical isolation and mechanical protection, ensuring a reliable electrical connection between the wire and the terminal. They prevent poor contact caused by wire loosening, provide insulation protection to prevent short circuits and electric shocks, and facilitate equipment maintenance and circuit inspection. They offer excellent electrical conductivity, good ductility, and corrosion resistance. With a complete range of specifications to meet different application requirements, they are widely used in electrical equipment, industrial control, and household appliances.

    Technical Parameters

    ITEM NO

    STUD SIZE

    DIMENSION (mm)

    American

    Metric d2

    B

    F

    L

    E

    D

    d1

    SNY1.25-3

    #4

    3.2

    5.7

    6.5

    22.0

    10.7

    5.6

    4.3

    SNY1.25-3.5S

    #6

    3.7

    SNY1.25-3.5L

    #6

    3.7

    6.4

    SNY1.25-4S

    #8

    4.3

    SNY1.25-4M

    #8

    4.3

    7.2

    SNY1.25-4L

    #8

    4.3

    8.1

    SNY1.25-5S

    #10

    5.3

    SNY1.25-5L

    #10

    5.3

    9.5

    SNY1.25-6S

    1/4

    6.5

    SNY1.25-6L

    1/4

    6.5

    12.0

    11.0

    28.0

    SNY1.25-8

    5/16

    8.5

    14.0

    12.0

    29.2

    SNY2-3

    #4

    3.2

    5.7

    6.5

    21.5

    11.0

    6.6

    4.9

    SNY2-3.5S

    #6

    3.7

    SNY2-3.5L

    #6

    3.7

    6.5

    22.2

    SNY2-4S

    #8

    4.3

    SNY2-4M

    #8

    4.3

    7.2

    SNY2-4L

    #8

    4.3

    8.2

    SNY2-5S

    #10

    5.3

    SNY2-5L

    #10

    5.3

    9.5

    SNY2-6S

    1/4

    6.5

    SNY2-6L

    1/4

    6.5

    12.0

    11.0

    28.2

    SNY2-8

    5/16

    8.5

    14.0

    12.5

    29.5
