T Copper Tube Terminals

Precision Connection, Maximum Protection – Engineered for Harsh Electrical Environments

✅ Pre-Insulated Nylon Sleeve
High-density Nylon sleeves pre-crimped onto terminals, withstand -20°C to +80°C, resisting oil, moisture, and vibration. No heat shrink needed – 50% faster installation.

✅ Military-Grade Conductivity
Tin-plated brass core, conductivity ≥28%. Tested at 20A continuous current, crimping resistance ≤0.5mΩ.

✅ Anti-Mismatch Color Coding
Red/blue/yellow sleeves follow industry polarity standards, reducing misconnection risks by 90%.

✅ 3-Second Crimping
Streamlined bullet shape works with standard crimpers (AWG 22-10). Solder-free, reliable connection in 3 seconds.

product details

product Tags

PRODUCT DESCRIPTION

T-shaped copper tube terminals (also known as T-type copper wire lugs) are electrical transition components used for efficient connections between copper conductors and device terminals. Their 'T' shaped structure provides both horizontal and vertical wiring channels and is widely used in busbar connections for multi-branch circuits, power distribution systems, industrial control cabinets, rail transit, and construction projects, enabling safe and reliable power transmission and signal transfer.The main purpose is to achieve standardized connections between wires and electrical equipment (circuit breakers, contactors, terminal blocks); to construct trunk and branch line junctions within distribution boxes/cabinets; to enhance high current carrying capacity, long-term connection stability, and to enable transition connections between wires of different gauges. The surface treatment process is tin plating, which is anti-oxidation and corrosion-resistant, suitable for humid environments.

Technical Parameters

ITEM NO	DIMENSION mm						WIRE RANGE A.W.G. mm²
	ΦE	ΦD	Φd	W	B	L
T1.5-4	4.3	4	2.4	8.7	7	19	22-16 A.W.G. 0.5-1.5 mm²
T1.5-5	5.3
T1.5-6	6.4			10		20
T2.5-4	4.3	4.3	2.7	8.7	7	19	16-14 A.W.G. 1.5-2.5 mm²
T2.5-5	5.3
T2.5-6	6.4			10.3		21
T2.5-8	8.3			12		23
T4-4	4.3	4.8	3.1	8.7	9.5	21.5	14-12 A.W.G. 2.5-4 mm²
T4-5	5.3
T4-6	6.4			10.3		23.5
T4-8	8.3			12.5		28.5
T6-4	4.3	5.5	3.8	10.3	10	26	12-10 A.W.G. 4-6 mm²
T6-5	5.3
T6-6	6.4
T6-8	8.3			13.9		29
T6-10	10.5
T6-12	13	6.2	4	16.5	9	30

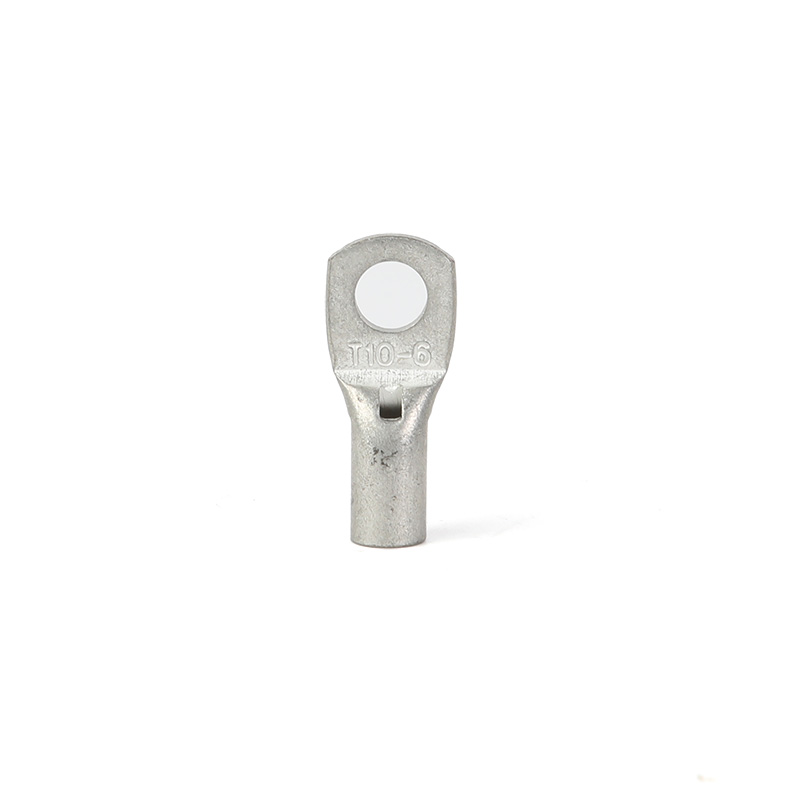

T10-4	4.3	6.9	4.7	11.9	11.5	27.5	8 A.W.G. 10 mm²
T10-5	5.3
T10-6	6.4
T10-8	8.3			13.5		30.5
T10-10	10.5			15
T10-12	13.2			17		34

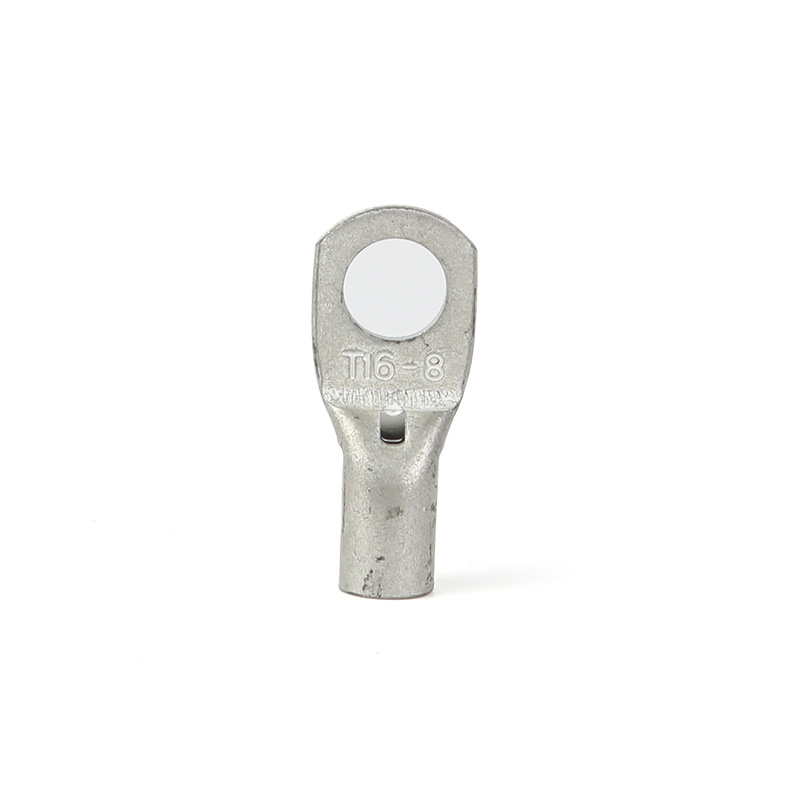

T16-4	4.3	7.8	5.6	11.9	12	27.5	6 A.W.G. 16 mm²
T16-5	5.3
T16-6	6.4
T16-8	8.3			13.5		31
T16-10	10.5			16		32
T16-12	13.2			17		37.5
T25-5	5.3	9.5	7.1	14	13.5	34	4 A.W.G. 25 mm²
T25-6	6.4
T25-8	8.3
T25-10	10.5			16		37
T25-12	13.2			18		40

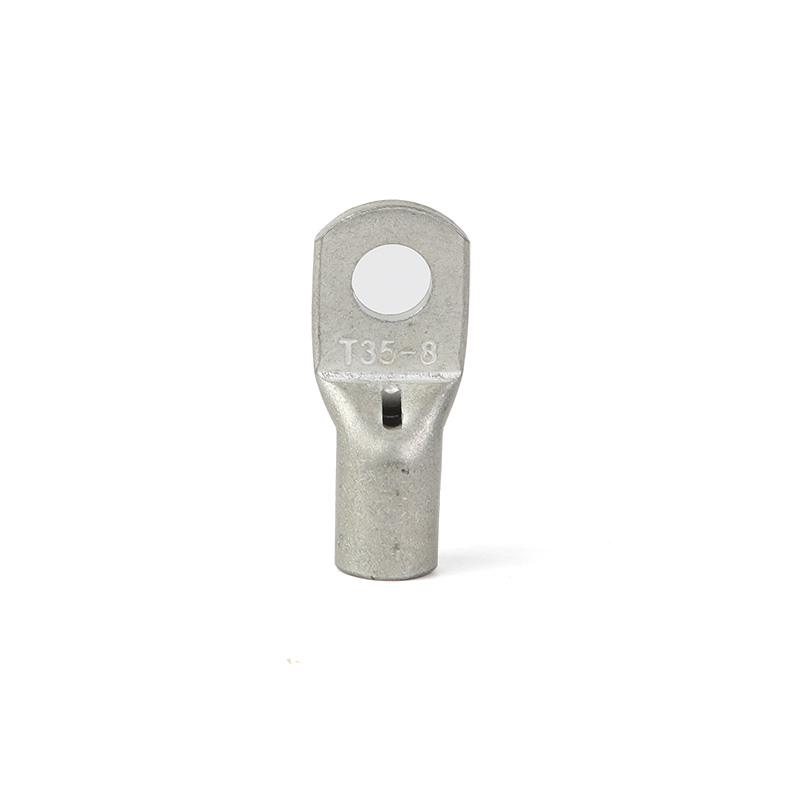

T35-5	5.3	11	8.2	16.5	16	39	2 A.W.G. 35 mm²
T35-6	6.4
T35-8	8.3
T35-10	10.5					43
T35-12	13.2			18
T35-14	14.5			20		48
T35-16	16.5			23
T40-6	6.4	11.2	9	16.3	17	44	1 AWG 40 mm²
T40-8	8.3
T40-10	10.5
T40-12	13.2			18
T50-6	6.4	12.5	9.5		20	45	1/0 AWG 50 mm²
T50-8	8.3
T50-10	10.5					49
T50-12	13.2
T50-14	14.5			22		54
T50-16	16.5	14		25	23	62
T50-20	21			28		68
T70-6	6.4	15	11.5	21.5	20	47.6	2/0 AWG 70 mm²
T70-8	8.3
T70-10	10.5					51.6
T70-12	13.2
T70-14	14.5					62.6
T70-16	16.5
T70-20	21			30
T95-6	6.4	17	13.5	24.7	22	55.8	3/0 A.W.G. 95 mm²
T95-8	8.3
T95-10	10.5
T95-12	13.2
T95-14	14.5					66.8
T95-16	16.5
T95-20	21			30
T120-6	6.4	20	15.6	29	27	71.5	4/0 A.W.G. 120 mm²
T120-8	8.3
T120-10	10.5
T120-12	13.2
T120-14	14.5
T120-16	16.5
T120-20	21
T150-8	8.3	21	16.5	30.4	32	78	250/300 MCM 150 mm²
T150-10	10.5
T150-12	13.2
T150-14	14.5
T150-16	16.5
T150-20	21
T185-8	8.3	23.6	18.4	34	34	84	300/350 MCM 185 mm²
T185-10	10.5
T185-12	13.2
T185-14	14.5
T185-16	16.5
T185-18	19
T185-20	21
T240-10	10.5	26.4	21.2	38.5	37	90	400/500 MCM 240 mm²
T240-12	13.2
T240-14	14.5
T240-16	16.5
T240-18	19
T240-20	21
T300-10	10.5	28.6	23.4	41.7	40	96	500/600 MCM 300 mm²
T300-12	13.2
T300-14	14.5
T300-16	16.5
T300-20	21
T400-10	10.5	32.8	26.8	47.8	37	104.7	600/750 MCM 400 mm²
T400-12	13.2
T400-14	14.5
T400-16	17
T400-18	19
T400-20	21
T500-10	10.5	38.4	29.8	54.8	46.5	115.5	800/1000 MCM 500 mm²
T500-12	13.2
T500-14	14.5
T500-16	16.5
T500-20	21
T630-10	10.5	44.7	34.5	64	50	133.1	1000/1250 MCM 630 mm²
T630-12	13
T630-14	14.5
T630-16	16.5
T630-20	21
