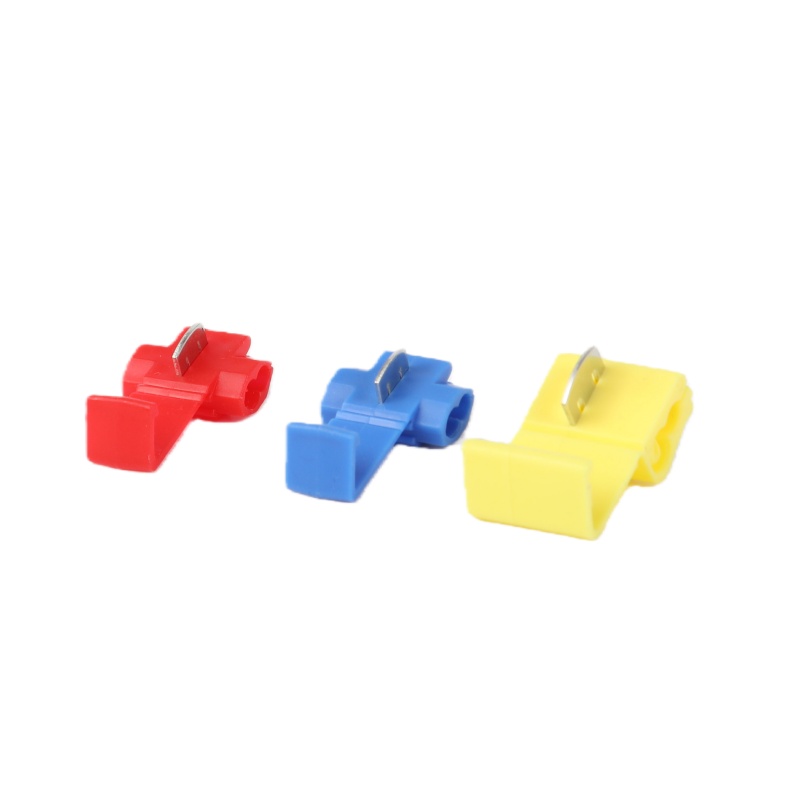

Quick Splice Wire Connector

Quick splice wire connector, also known as self-stripping wire connector. It’s a type of fast and easy connection and disconnection of wires. These connectors are designed to streamline the process of wiring and are widely used in various electrical and electronic applications. It’s the easiest wire connection.They only barely cut into the wire without stripping any of the insulation, so they don't expose much metal/wire. These connectors save time with repairs and are easy to install once you get the feel for how much pressure is needed to make the connection.

product details

product Tags

DESCRIPTION - Quick Splice Wire Connector

Product Feature

One of the key features of quick splice snap wire connectors is easy-use. With a simple push-in or snap-on mechanism, these connectors enable quick wire connections with a common plier, saving time and effort during installation and maintenance.This is particularly suitable for applications where frequent wiring changes or upgrades are required. Another important feature of quick connect connectors is reliability.

Product Application

Quick splice wire connectors are available in a variety of types and configurations to suit different application requirements. There are various options of wire sizes and connection styles. This versatility makes quick connect connectors suitable for a wide range of applications, including automotive wiring, household appliances and electrical control panels.

Quick splice wire connectors offer the benefits of fast and easy wire connections, reliability, and versatility. It can simplify the wiring process and provide secure connections makes them a popular choice in many industries. Whether it’s for a quick installation in a production line or a convenient maintenance task in a home setting, quick connect connectors are a practical solution for efficient electrical connections.

Yueqing Gaopeng Electric Co., Ltd. is dedicated to providing you with excellent and reliable connectors.

We have a variety of connectors that can be used for wire splicing.

Welcome to consult us for electrical connection solutions！

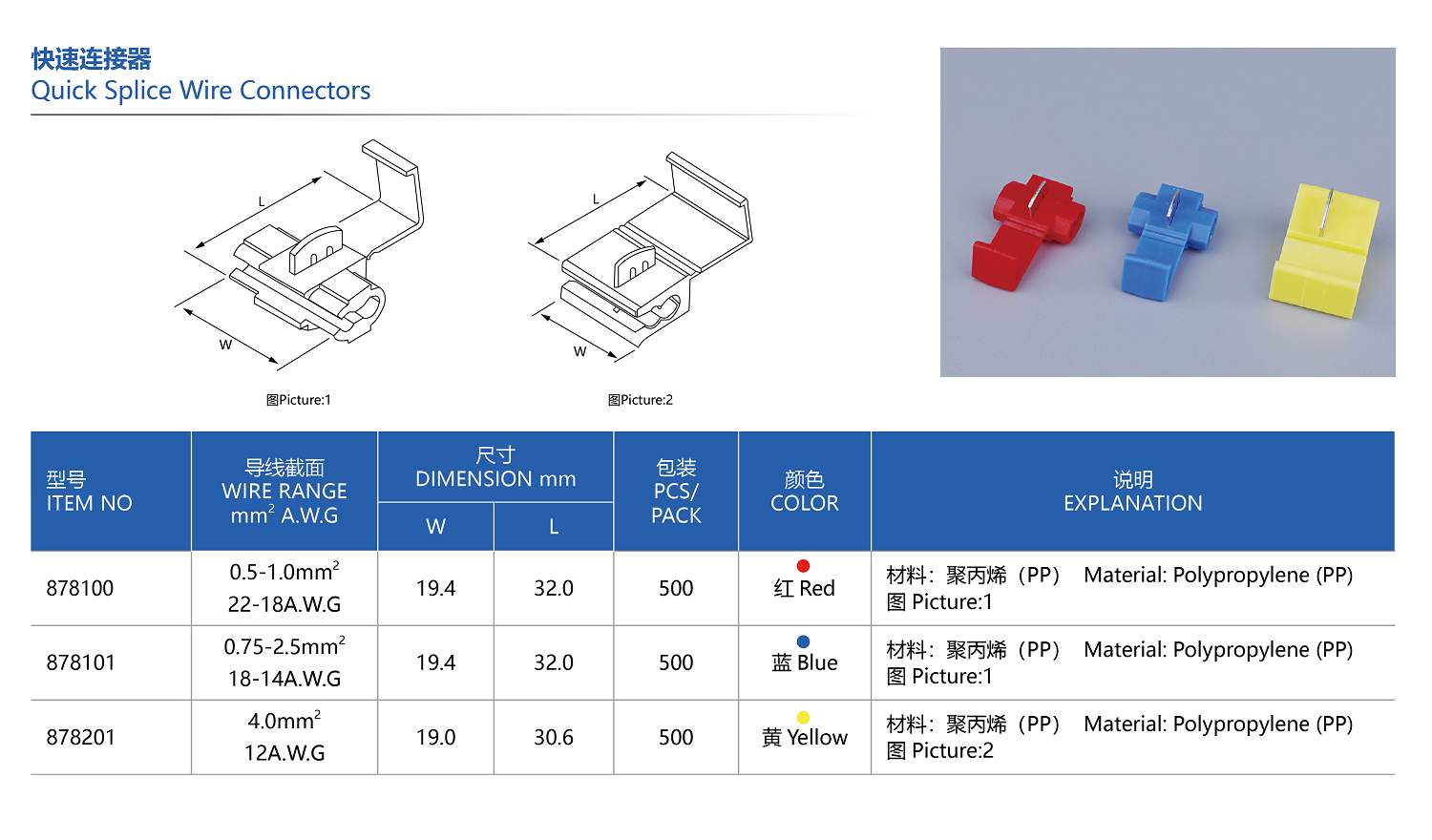

Technical Parameters

ITEM NO	WIRE RANGE mm²A.W.G	DIMENSION mm		Color	DRAWING
ITEM NO	WIRE RANGE mm²A.W.G	W	L	Color	DRAWING
878100	0.5-1.0mm² 22-18A.W.G	19.4	32.0	Red
878101	0.75-2.5mm² 18-14A.W.G	19.4	32.0	Blue
878201	4.0mm² 12A.W.G	19.0	30.6	Yellow
