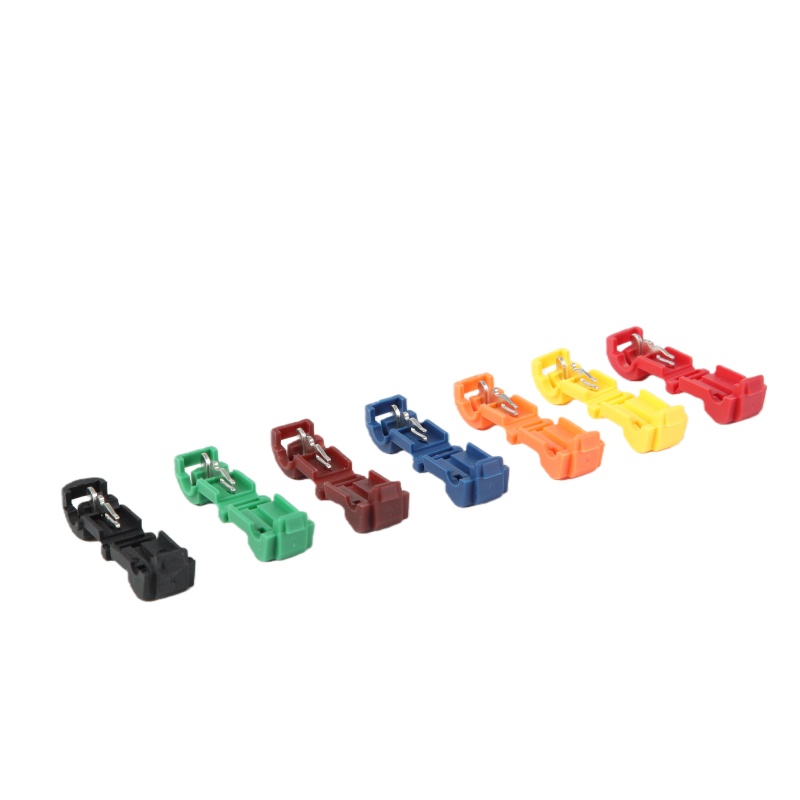

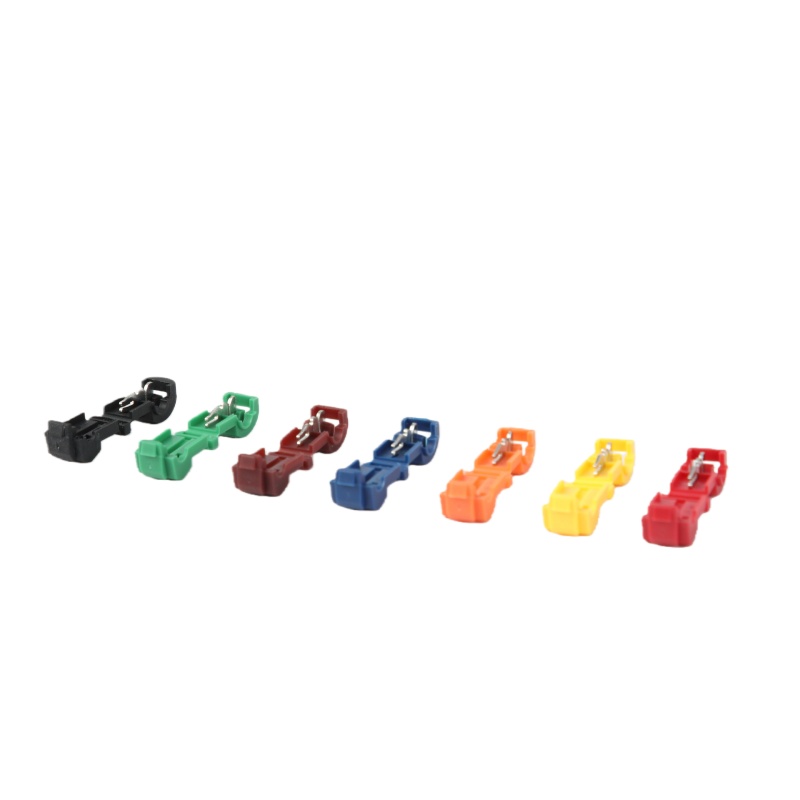

T Tap Wire Connectors
Quick Splice Connector

T Tap Wire Connectors

Split Wires in Seconds – The Smarter Way to Tap Circuits Without Cutting!

 Self-Stripping Blade Design
Precision stainless steel blades pierce insulation to contact conductors directly. No wire stripping needed – saves 10 minutes per connection vs traditional methods.

 Triple-Layer Protection
Nylon outer shell + PVC middle barrier + copper alloy core. Withstands -40°C to 105°C, resists oil/gasoline.

 Vibration-Proof Grip
Spring-loaded tension clamp maintains >15N pull force even in engine bays. Passes 20G vibration test.

 Error-Proof Color Coding
Red (22-18 AWG) | Blue (18-16 AWG) | Yellow (16-14 AWG) for instant gauge matching

    DESCRIPTION - SELF STRIPPING QUICK SPLICE

    T tap wire connectors are a type of self-stripping connector, used for wire splicing. It designed to simplify the process of wire connections and enhance efficiency.

    Their unique design makes wire connections easier by allowing multiple wires to be quickly and easily joined together without the need to strip the insulation of the main wire. The branch wires with a nylon Insulated male crimp terminal, can be quickly disconnected. Additionally, they ensure reliable electrical connections, safeguarding connection quality and preventing loosening or breakage, thereby improving the stability and safety of electrical systems. They have a wide range of applications and can be used in various electrical connection scenarios, including household electrical, automotive electronics, marine electrical, and more.

    T tap connectors are widely used in various electrical connection scenarios:

    1. Household Electrical: They are used for household electrical repairs and installations, such as connecting sockets, switches, and lighting fixtures.

    2. Automotive Electronics: These connectors are employed in automotive electrical systems for connecting car lights, audio systems, power windows, and central control systems.

    3. Marine Electrical: They are suitable for marine electrical systems, including cabin lighting, navigation equipment, communication devices, and more.

    4. Industrial Electrical: Used in factories and industrial equipment for electrical connections, including machinery, control systems, sensors, and more.

    5. Outdoor Electrical: These connectors are utilized in outdoor environments for applications like outdoor lighting, gardening equipment, outdoor sound systems, and more.

    6. Temporary Connections: They are also used for temporary electrical connections, such as in event exhibitions, fieldwork, construction sites, and other situations requiring temporary power supply.

    Whether for temporary or permanent connections, Gaopeng T Tap wire connectors meet your requirements.

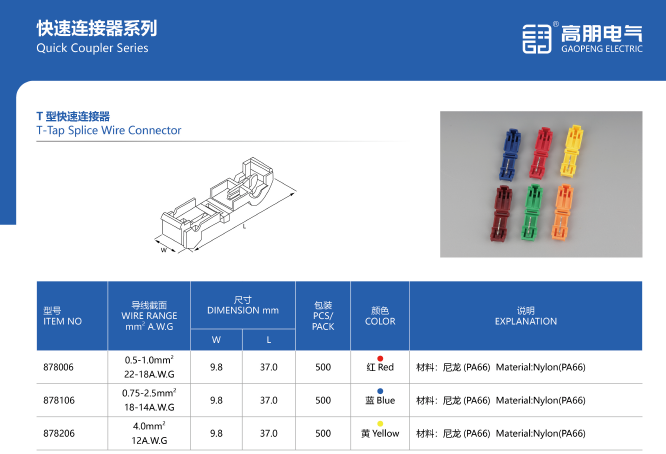

    Technical Parameters

    ITEM NO
    WIRE RANGE
    mm² A.W.G
    DIMENSION mm COLOR DRAWING
    W L
    878006
    0.5-1.0mm²
    22-18A.WG
    9.8 37 Red T-Tap-Splice-Wire-Connector6ir
    878106
    0.75-2.5mm²
    18-14A.W.G
    9.8 37 Blue
    878206
    4.0mm²
    12A.W.G
    9.8 37 Yellow
