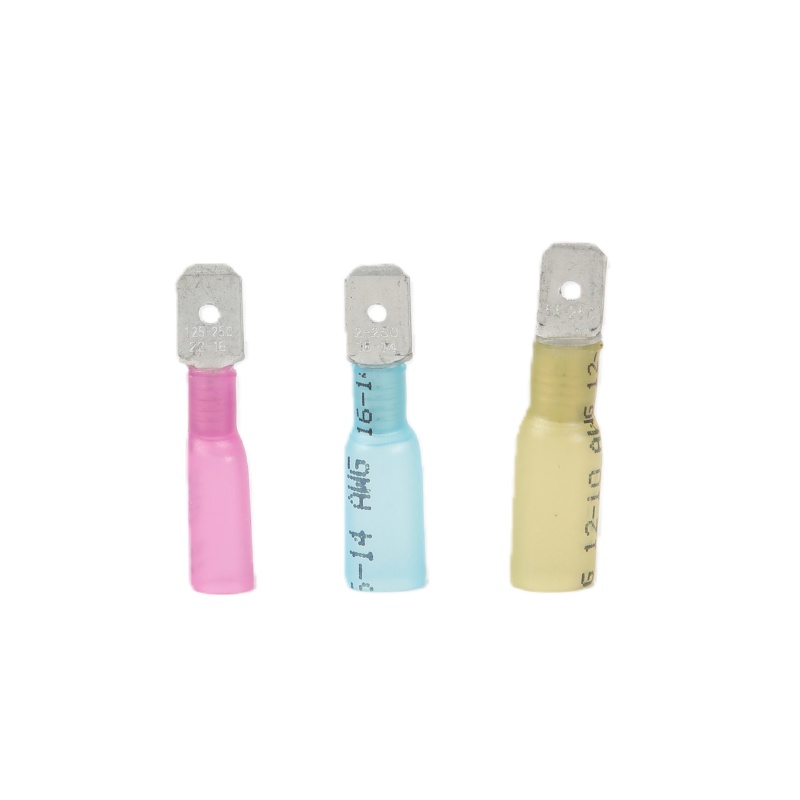

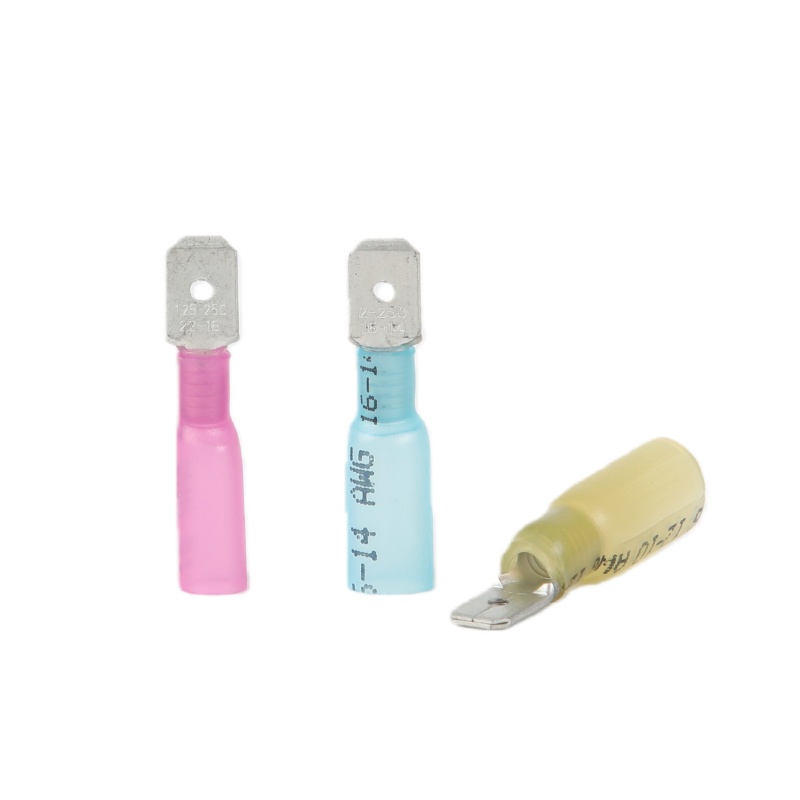

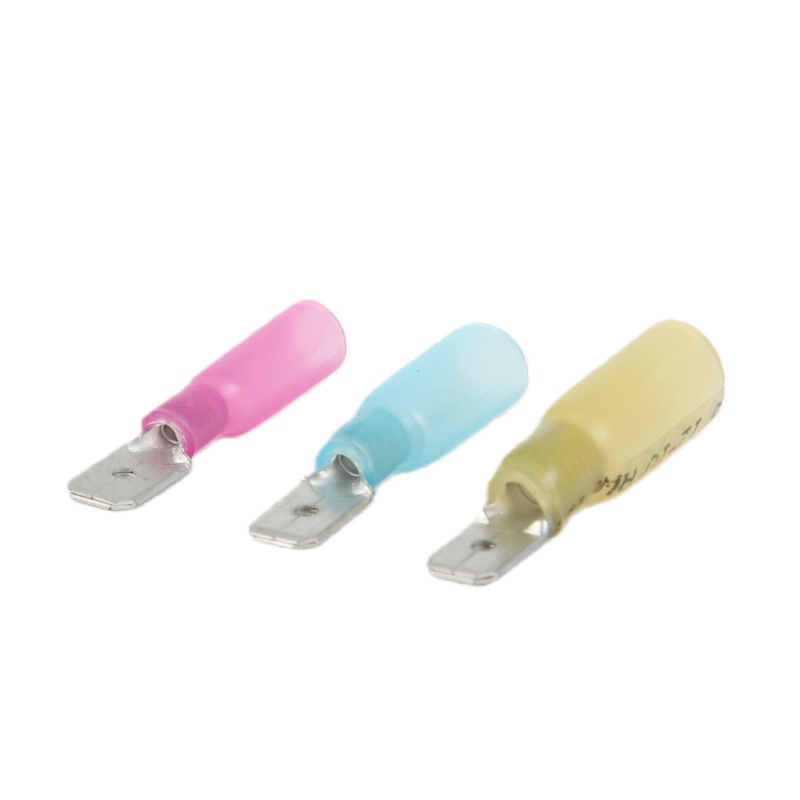

Heat Shrink Male Spade Connector
Heat shrink male/female spade connectors can be disconnected from added products.It’s convenient for frequent connections.
Translucent heat shrink tubing provides high tensile strength as well as resistance to stretch and mechanical damage. Thick barrel ensures strong crimp every time - your wire will never slip out of these connectors.
Spade Terminals can be widely used in household electrical wire connections, automotive & marine boat repairs.
Easy Identification-Different colored sleeves are easy to identify when using.
Durable Copper Core-Prevents the wire from slipping and failing keeps the connection sealed for the life of the wire.
Translucent Tube- It’s easy to check inner situation of the connection.
WATERPROOF- Seamless Water Resistance
Oxidation resistance--Tin coating on the copper helps protect the metal from oxidation.
Operation Display
Step1： Prepare the terminals and stripped wires, insert the wires into the terminals respectively.
Step2: Crimp the right place with professional crimping tool.
Step3: Apply heat with a heat gun by rotating a terminal until heat shrink tube will shrink and cover the wire.
Step4: The connection is done.
Company Introduction
We have a highly skilled management team, diligent and conscientious employees. Our company is committed to maintaining the highest levels of quality and safety.
We take pride in providing both OEM/ODM services and a wide range of products.The annual production capacity has several billions.
We abide by the philosophy of "Excellent quality, welcome GAOPENG" which translates to " High quality connectivity is the gateway to trust". Our dedication to quality and integrity is unwavering, and we are here to provide you with the best service.
We will continue to uphold the values of ethical business practices and sustainable development, striving to create a brighter future for our employees and customers.
Warmly welcome customers from home and abroad to visit our company for guidance and business negotiation!

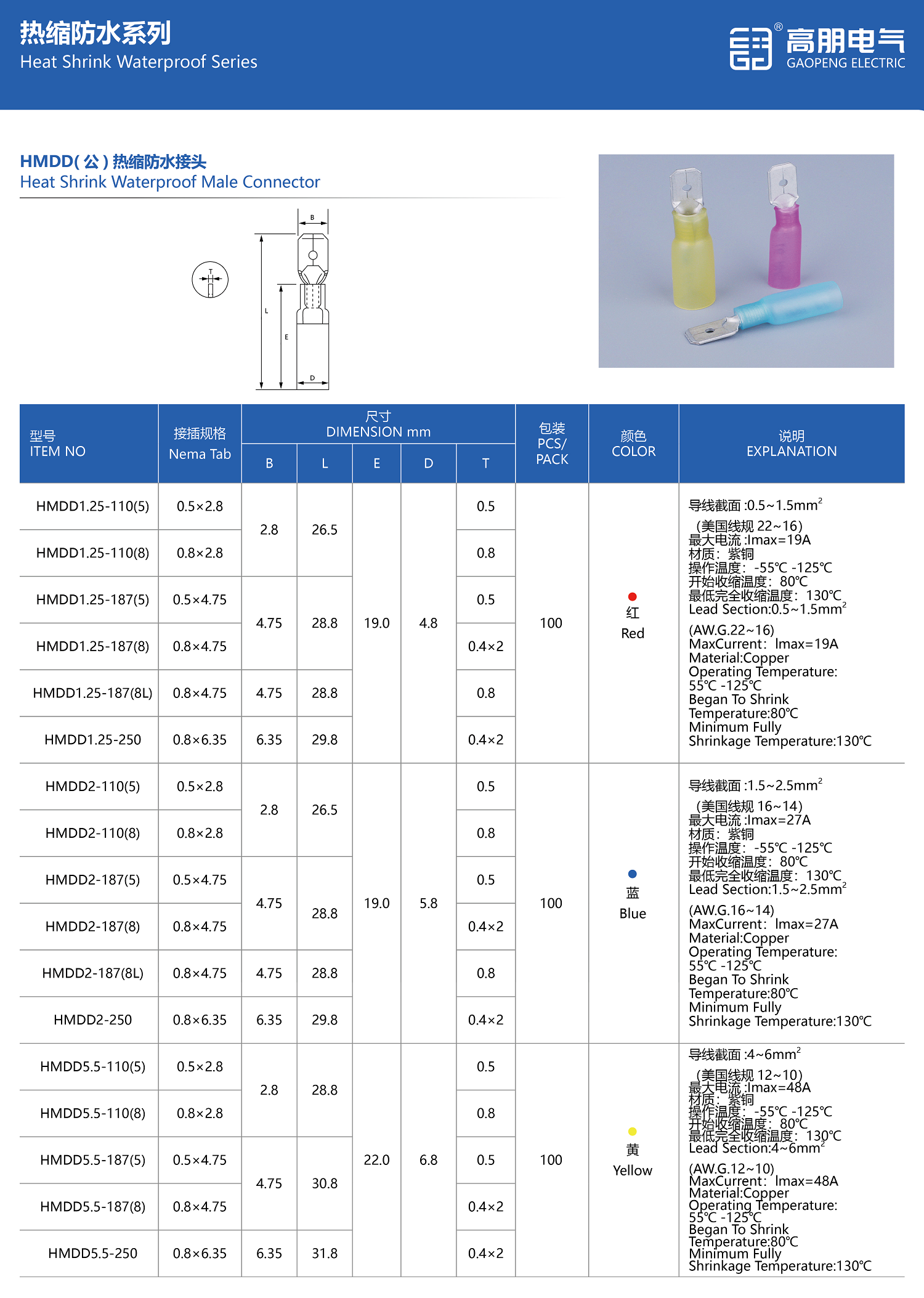

Technical Parameters
| ITEM NO | Nema Tab | DIMENSION mm | COLOR | DRAWING | ||||
| B | L | E | D | T | ||||
| HMDD1.25-110(5) | 0.5×2.8 | 2.8 | 26.5 | 19.0 | 4.8 | 0.5 | Red |  |
| HMDD1.25-110(8) | 0.8×2.8 | 0.8 | ||||||
| HMDD1.25-187(5) | 0.5×4.75 | 4.75 | 28.8 | 0.5 | ||||
| HMDD1.25-187(8) | 0.8×4.75 | 0.4×2 | ||||||
| HMDD1.25-187(8L) | 0.8×4.75 | 4.75 | 28.8 | 0.8 | ||||
| HMDD1.25-250 | 0.8×6.35 | 6.35 | 29.8 | 0.4×2 | ||||
| HMDD2-110(5) | 0.5×2.8 | 2.8 | 26.5 | 19.0 | 5.8 | 0.5 | Blue | |
| HMDD2-110(8) | 0.8×2.8 | 0.8 | ||||||
| HMDD2-187(5) | 0.5×4.75 | 4.75 | 28.8 | 0.5 | ||||
| HMDD2-187(8) | 0.8×4.75 | 0.4×2 | ||||||
| HMDD2-187(8L) | 0.8×4.75 | 4.75 | 28.8 | 0.8 | ||||
| HMDD2-250 | 0.8×6.35 | 6.35 | 29.8 | 0.4×2 | ||||
| HMDD5.5-110(5) | 0.5×2.8 | 2.8 | 28.8 | 22.0 | 6.8 | 0.5 | Yellow | |
| HMDD5.5-110(8) | 0.8×2.8 | 0.8 | ||||||
| HMDD5.5-187(5) | 0.5×4.75 | 4.75 | 30.8 | 0.5 | ||||
| HMDD5.5-187(8) | 0.8×4.75 | 0.4×2 | ||||||
| HMDD5.5-250 | 0.8×6.35 | 6.35 | 31.8 | 0.4×2 | ||||
