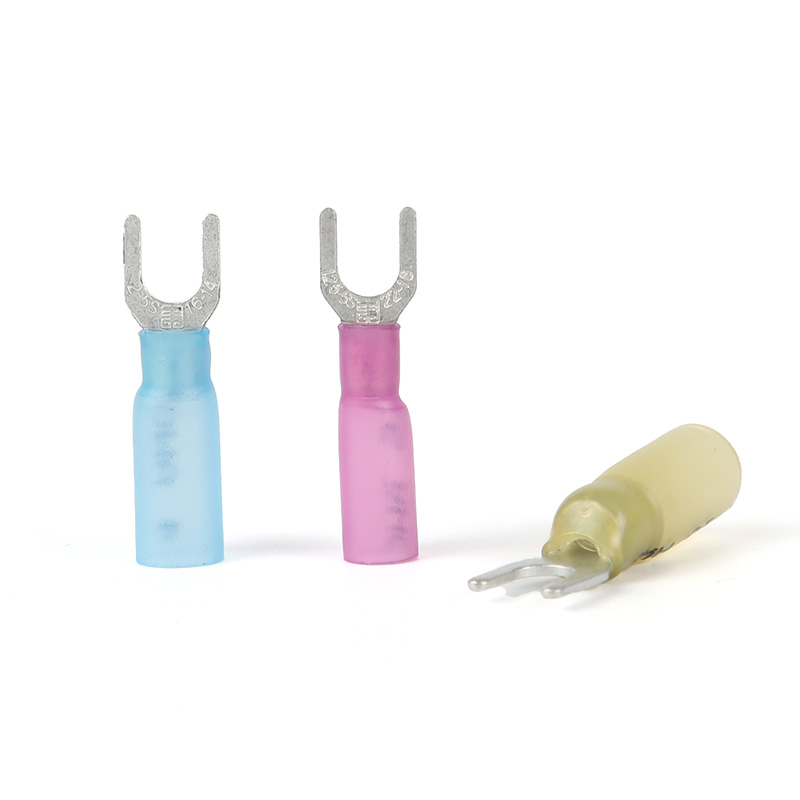

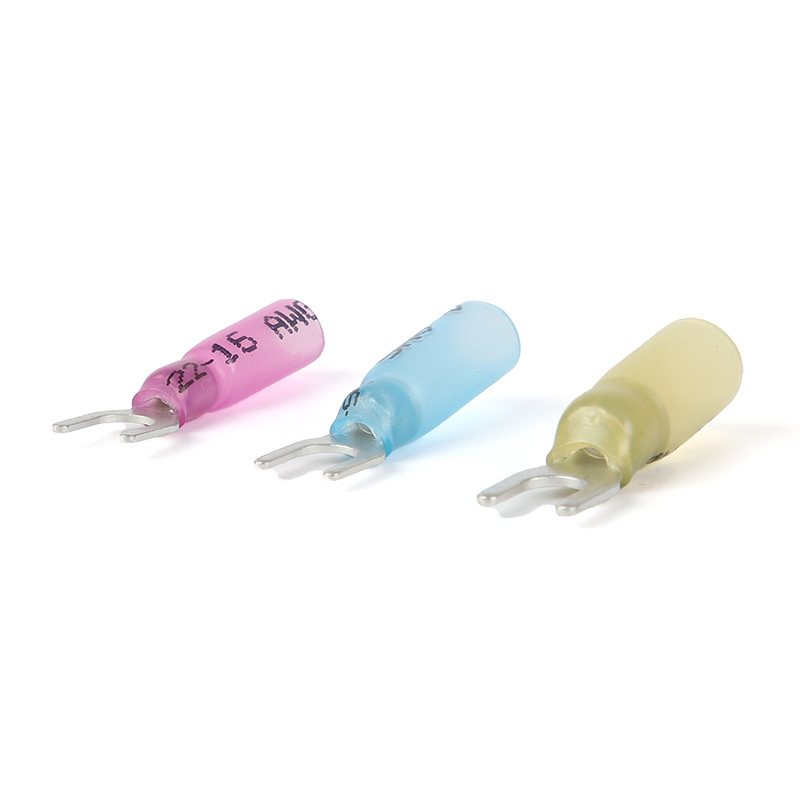

Heat Shrink Waterproof Fork Terminal
Gaopeng heat shrink waterproof fork terminals are a product designed to meet the stringent requirements of professional and DIY applications. These terminals are available in HSV1.25, HSV2 and HSV5.5 models and are made of high-quality copper to ensure optimal conductivity and performance. The innovative design of these terminals not only enhances the electrical connection, but also provides a waterproof solution to protect against moisture and environmental factors.
The outstanding feature of Gaopeng heat shrink waterproof fork terminals is their waterproof function. This is especially important for applications in outdoor environments or environments where contact with water is a concern. The heat shrink technology used in these terminals creates a tight seal at the connection, preventing water from seeping in and ensuring that your electrical system can operate normally even in the harshest conditions. This level of protection is essential to maintaining the integrity of electrical connections and reducing the risk of short circuits and failures.
Gaopeng heat shrink waterproof fork terminals are designed to be easy to use. The fork terminal design allows for quick and secure connections, making installation simple and efficient. Whether you are working on automotive wiring, marine applications, or any other electrical project, these terminals provide a reliable solution that saves time and improves safety. The copper material not only ensures excellent conductivity, but also helps to extend the life of the connection, making it a wise investment for any electrical project.
Gaopeng heat shrink waterproof fork terminals are an essential component for anyone who wants to enhance their electrical connections. With its waterproof features, high-quality copper construction, and user-friendly design, this product stands out in the market. Choose Gaopeng for your electrical needs and experience the peace of mind that comes with reliable, durable, and waterproof connections.
Technical Parameters

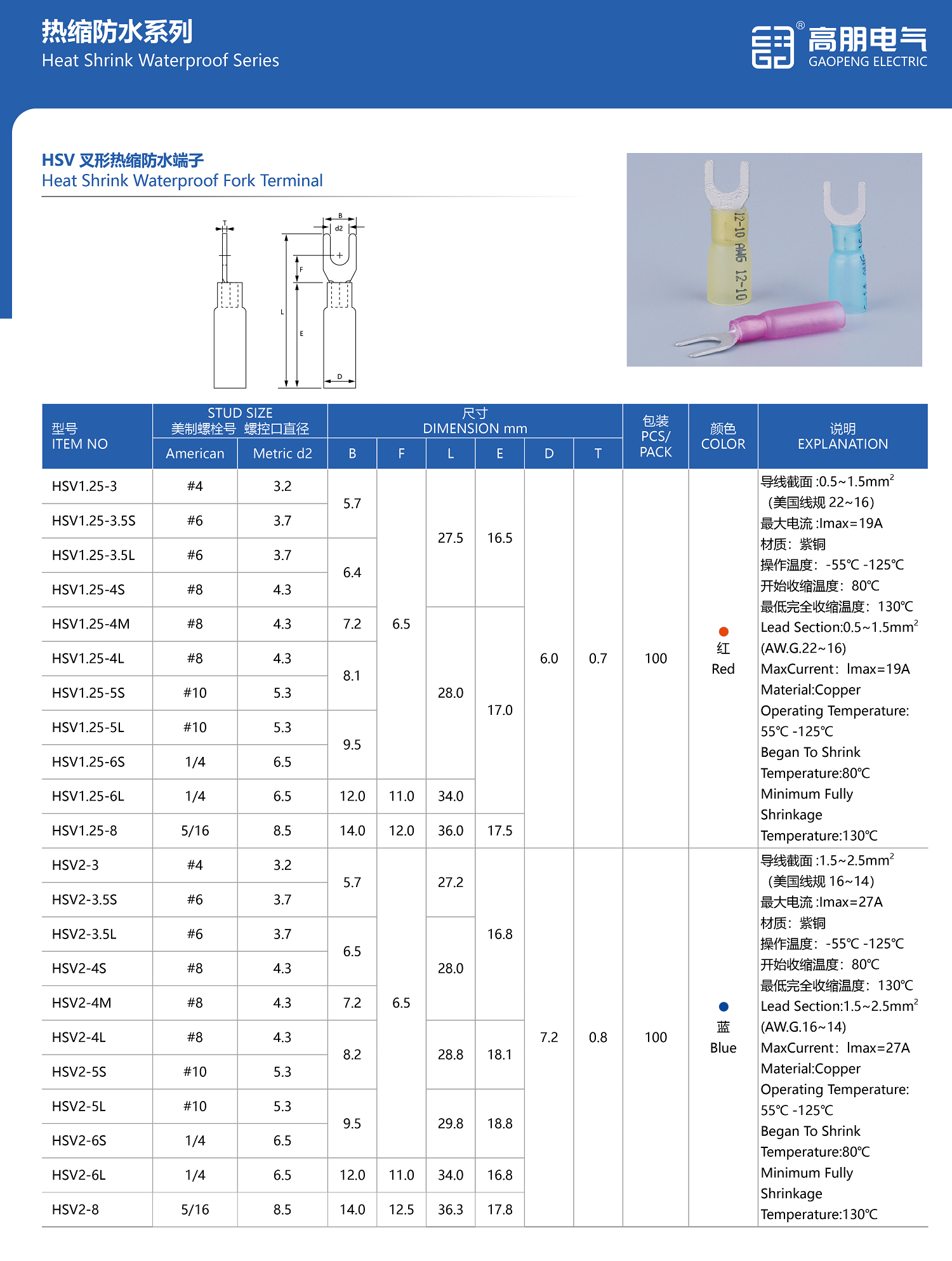

ITEM NO | STUD SIZE | DIMENSION mm | PCS/ PACK | COLOR | EXPLANATION | |||||||
American | Metric d2 | B | F | L | E | D | T | |||||
HSV1.25-3 | #4 | 3.2 | 5.7 | 6.5 | 27.5 | 16.5 | 6 | 0.7 | 100 | Red | Lead Section:0.5~1.5mm2 (AW.G.22~16) | |
HSV1.25-3.5S | #6 | 3.7 | ||||||||||
HSV1.25-3.5L | #6 | 3.7 | 6.4 | |||||||||
HSV1.25-4S | #8 | 4.3 | ||||||||||
HSV1.25-4M | #8 | 4.3 | 7.2 | 28 | 17 | |||||||
HSV1.25-4L | #8 | 4.3 | 8.1 | |||||||||
HSV1.25-5S | #10 | 5.3 | ||||||||||
HSV1.25-5L | #10 | 5.3 | 9.5 | |||||||||
HSV1.25-6S | 1月4日 | 6.5 | ||||||||||
HSV1.25-6L | 1月4日 | 6.5 | 12 | 11 | 34 | |||||||
HSV1.25-8 | 5月16日 | 8.5 | 14 | 12 | 36 | 17.5 | ||||||
HSV2-3 | #4 | 3.2 | 5.7 | 6.5 | 27.2 | 16.8 | 7.2 | 0.8 | 100 | Blue | Lead Section:1.5~2.5mm2 (AW.G.16~14) MaxCurrent:lmax=27A Material:Copper Operating Temperature: 55℃ -125℃ Began To Shrink Temperature:80℃ Minimum Fully Shrinkage Temperature:130℃ |
|
HSV2-3.5S | #6 | 3.7 | ||||||||||
HSV2-3.5L | #6 | 3.7 | 6.5 | 28 | ||||||||
HSV2-4S | #8 | 4.3 | ||||||||||
HSV2-4M | #8 | 4.3 | 7.2 | |||||||||
HSV2-4L | #8 | 4.3 | 8.2 | 28.8 | 18.1 | |||||||
HSV2-5S | #10 | 5.3 | ||||||||||
HSV2-5L | #10 | 5.3 | 9.5 | 29.8 | 18.8 | |||||||
HSV2-6S | 1/4 | 6.5 | ||||||||||
HSV2-6L | 1/4 | 6.5 | 12 | 11 | 34 | 16.8 | ||||||
HSV2-8 | 5/16 | 8.5 | 14 | 12.5 | 36.3 | 17.8 | ||||||

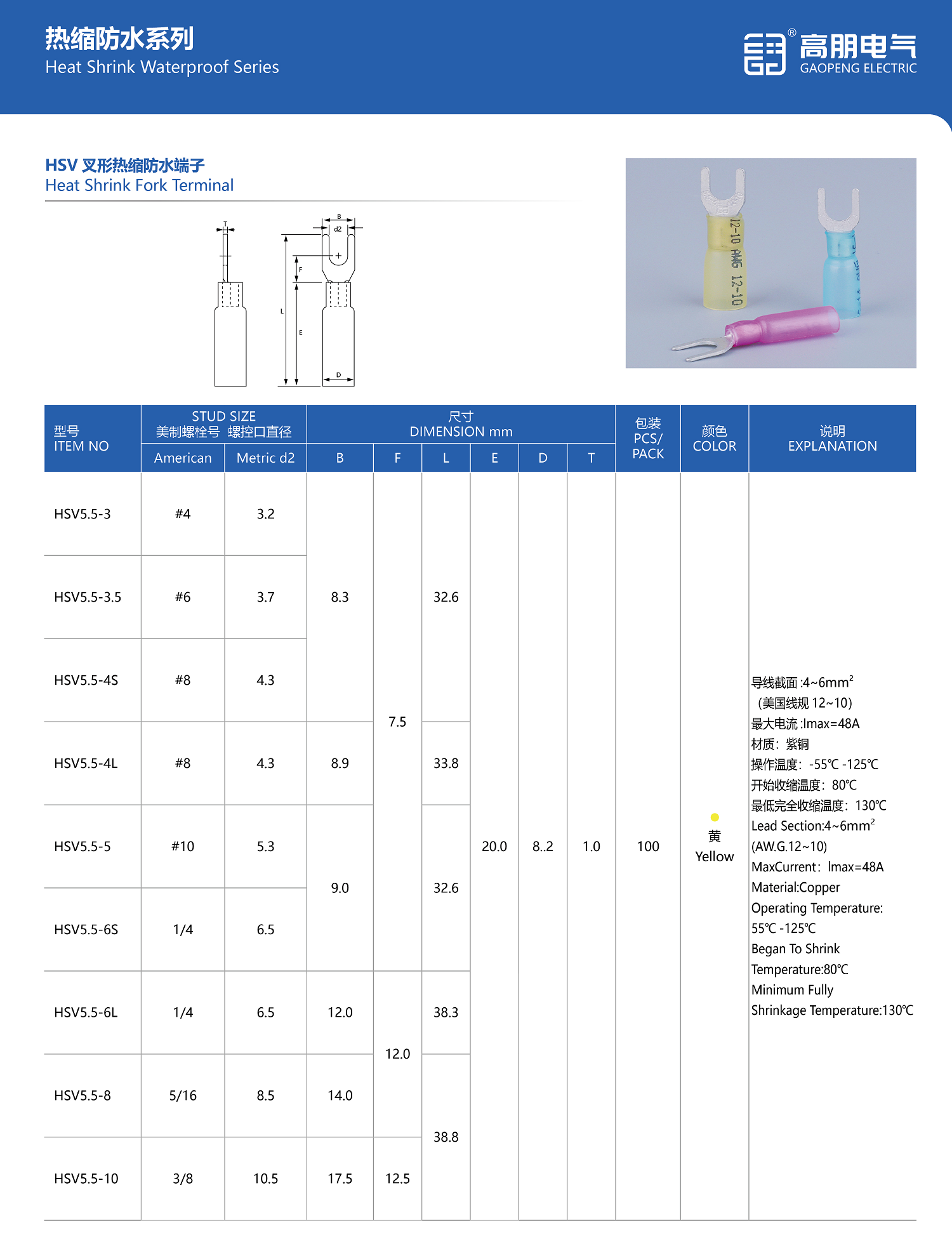

HSV5.5-3 | #4 | 3.2 | 8.3 | 7.5 | 32.6 | 20 | 8.2 | 1 | 100 | Yellow | Lead Section:4~6mm2 (AW.G.12~10) MaxCurrent:lmax=48A Material:Copper Operating Temperature: 55℃ -125℃ Began To Shrink Temperature:80℃ Minimum Fully Shrinkage Temperature:130℃ |
|
HSV5.5-3.5 | #6 | 3.7 | ||||||||||
HSV5.5-4S | #8 | 4.3 | ||||||||||
HSV5.5-4L | #8 | 4.3 | 8.9 | 33.8 | ||||||||
HSV5.5-5 | #10 | 5.3 | 9.0 | 32.6 | ||||||||
HSV5.5-6S | 1/4 | 6.5 | ||||||||||
HSV5.5-6L | 1/4 | 6.5 | 12.0 | 12.0 | 38.3 | |||||||
HSV5.5-8 | 5/16 | 8.5 | 14.0 | 38.8 | ||||||||
HSV5.5-10 | 3/8 | 10.5 | 17.5 | 12.5 |
