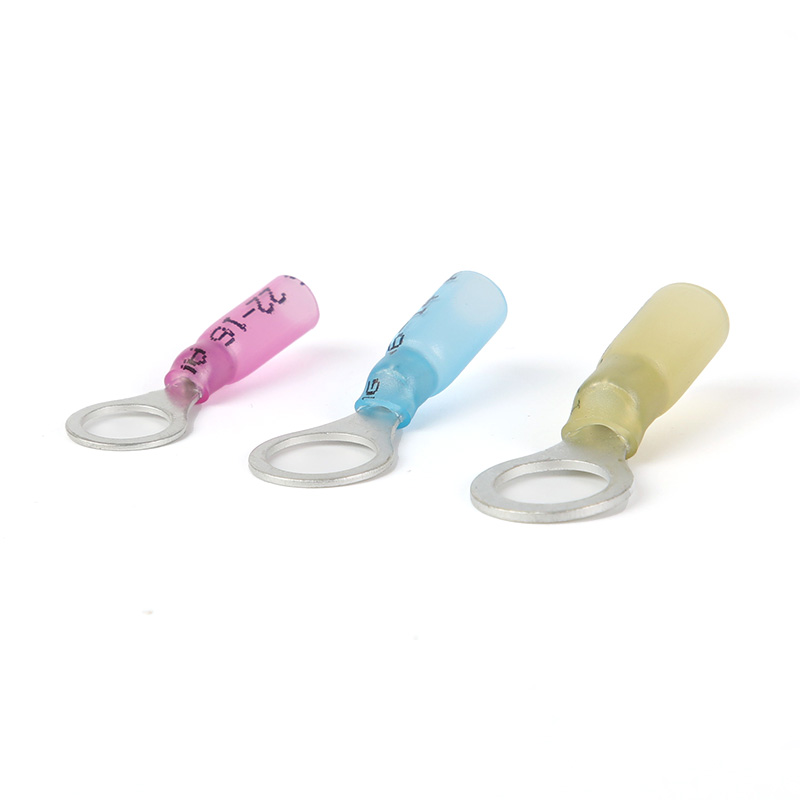

Heat Shrink Ring Terminal
Product Details
The ring terminal is made of high-quality pure copper. The copper barrel ensures maximum current flow and minimum voltage drip. That can prevent short circuit.The heat-activated adhesive prevent wire corrosion and waterproofing.The thick heat shrinkable tube ensures that your wires can be tightly connected and provide insulation function. The shrinkage ratio 3:1 and operating temperature: -55 Degree -125 Degree.It can be reduced to 1/3 of the original size, and the wires can be tightly combined.

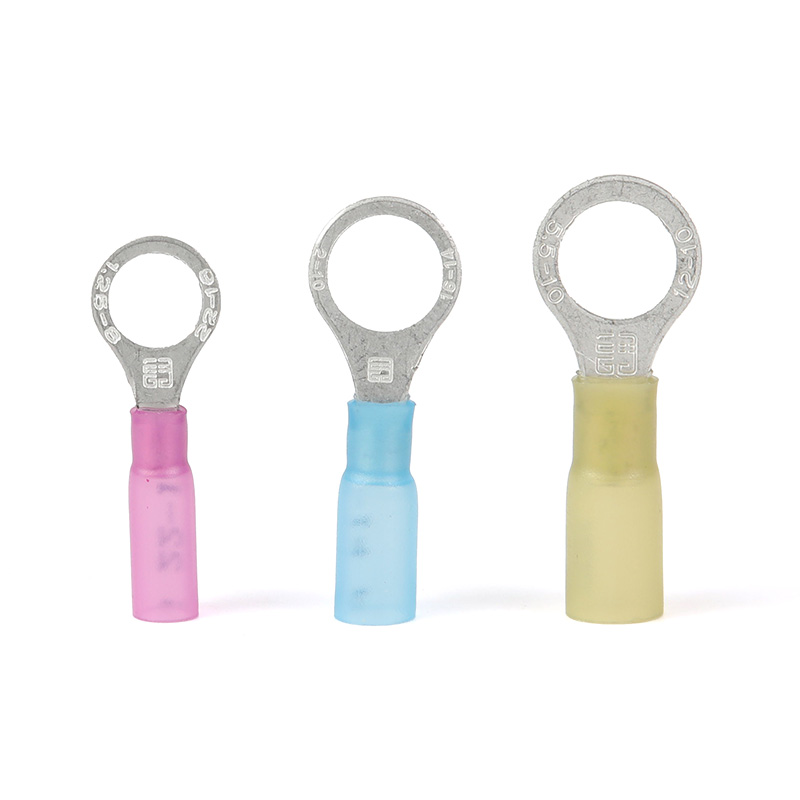

Heat shrink ring terminal has a wide wire gauge for your selection:
Red (AWG22-16)/ Blue(AWG16-14) /Yellow(AWG12-10).
Product Features
They are suitable for a wide range of electrical projects of motorcycle, off-road vehicles, lawn tractors,RVs,fish finder and marine application, providing a secure and stable connection.
Good insulation and conductivity,anti-oxidation,anti-corrosion, and it plays a good role in protecting the circuit and can be used for a long time.
The heat shrink wire connectors provide a secure and reliable connection, offering peace of mind when working on electrical wiring projects. The insulated design ensures safety and prevents electrical mishaps.
Operating Instructions
Step1: Strip the wire insulation about 9-10mm and insert the wire into the ring terminal.
Step2: Crimp the right place with professional crimping tool
Step3: Apply heat with a heat gun by rotating a terminal until heat shrink tube will shrink and cover the wire.
Step4:Cool down and the connection is done.
Best Service
Warranty: Gaopeng guarantee the quality of our products and 3-year of warranty period.
Packaging: 500 pieces per bag, It’s easy to stock for electrical projects.
We are willing to offer customized service according to your requirements, including color,packing or logo.
(Note: If you have any questions, please feel free to ask our team and we will do our best to help you

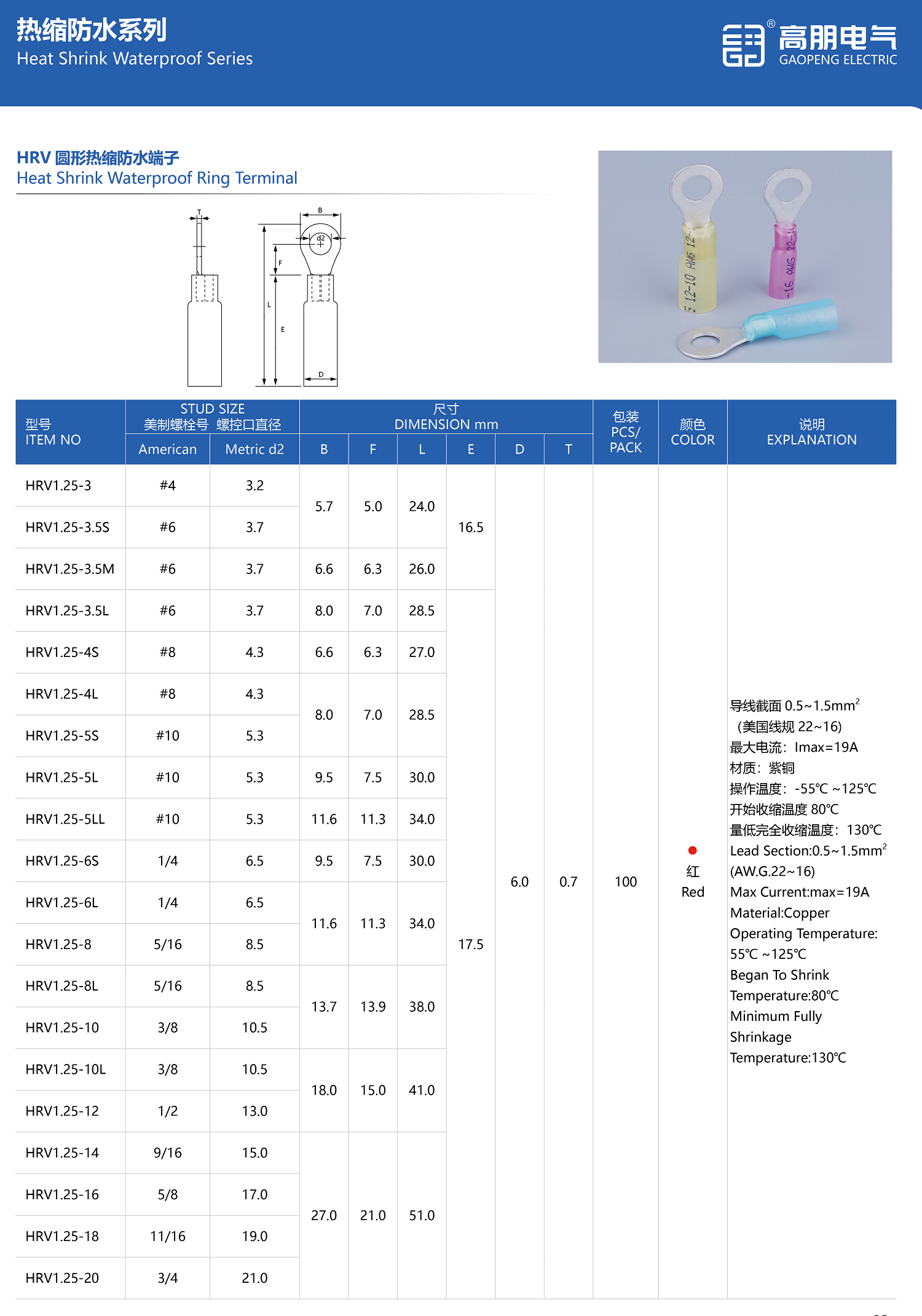

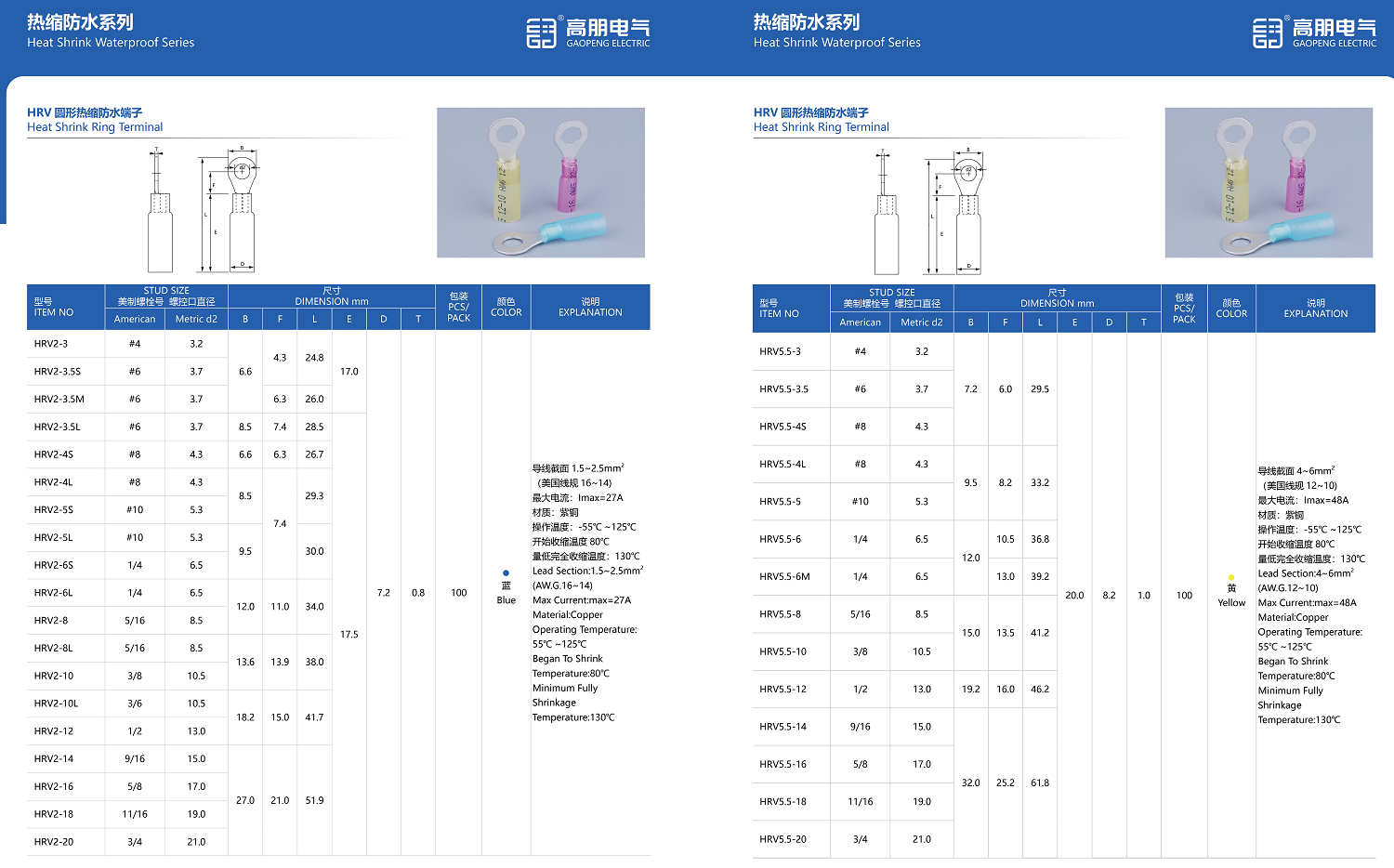

Technical Parameters
| ITEM NO | STUD SIZE | DIMENSION mm | Color | DRAWING | ||||||
| American | Metric d2 | B | F | L | E | D | T | |||
| HRV1.25-3 | #4 | 3.2 | 5.7 | 5.0 | 24.0 | 16.5 | 6.0 | 0.7 | Red |  |
| HRV1.25-3.5S | #6 | 3.7 | ||||||||
| HRV1.25-3.5M | #6 | 3.7 | 6.6 | 6.3 | 26.0 | |||||
| HRV1.25-3.5L | #6 | 3.7 | 8.0 | 7.0 | 28.5 | 17.5 | ||||
| HRV1.25-4S | #8 | 4.3 | 6.6 | 6.3 | 27.0 | |||||
| HRV1.25-4L | #8 | 4.3 | 8.0 | 7.0 | 28.5 | |||||
| HRV1.25-5S | #10 | 5.3 | ||||||||
| HRV1.25-5L | #10 | 5.3 | 9.5 | 7.5 | 30.0 | |||||
| HRV1.25-5LL | #10 | 5.3 | 11.6 | 11.3 | 34.0 | |||||
| HRV1.25-6S | 1/4 | 6.5 | 9.5 | 7.5 | 30.0 | |||||
| HRV1.25-6L | 1/4 | 6.5 | 11.6 | 11.3 | 34.0 | |||||
| HRV1.25-8 | 5/16 | 8.5 | ||||||||
| HRV1.25-8L | 5/16 | 8.5 | 13.7 | 13.9 | 38.0 | |||||
| HRV1.25-10 | 3/8 | 10.5 | ||||||||
| HRV1.25-10L | 3/8 | 10.5 | 18.0 | 15.0 | 41.0 | |||||
| HRV1.25-12 | 1/2 | 13.0 | ||||||||
| HRV1.25-14 | 9/16 | 15.0 | 27.0 | 21.0 | 51.0 | |||||
| HRV1.25-16 | 5/8 | 17.0 | ||||||||
| HRV1.25-18 | 11/16 | 19.0 | ||||||||
| HRV1.25-20 | 3/4 | 21.0 | ||||||||
