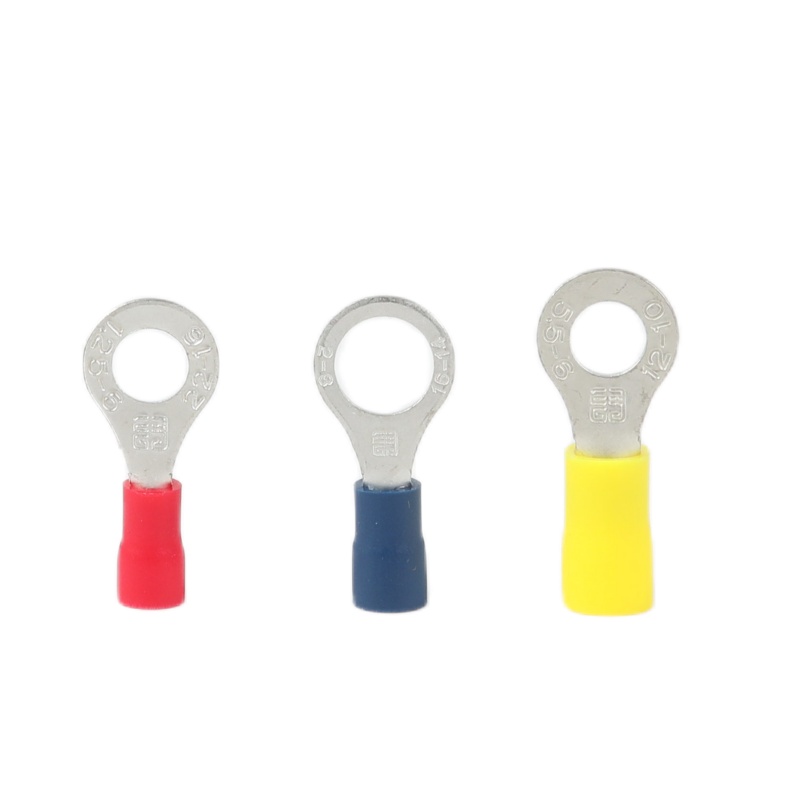

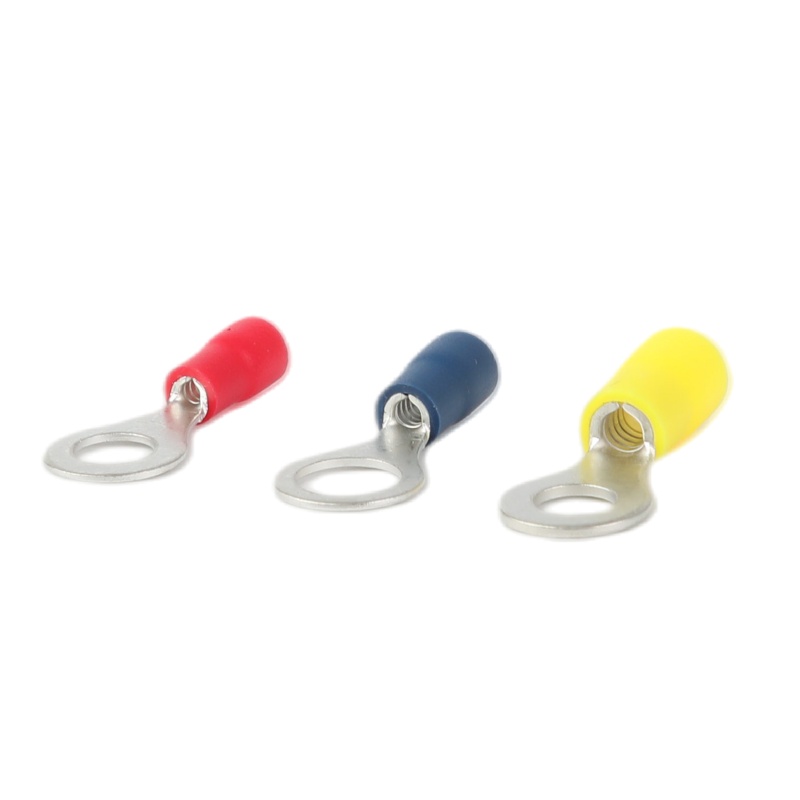

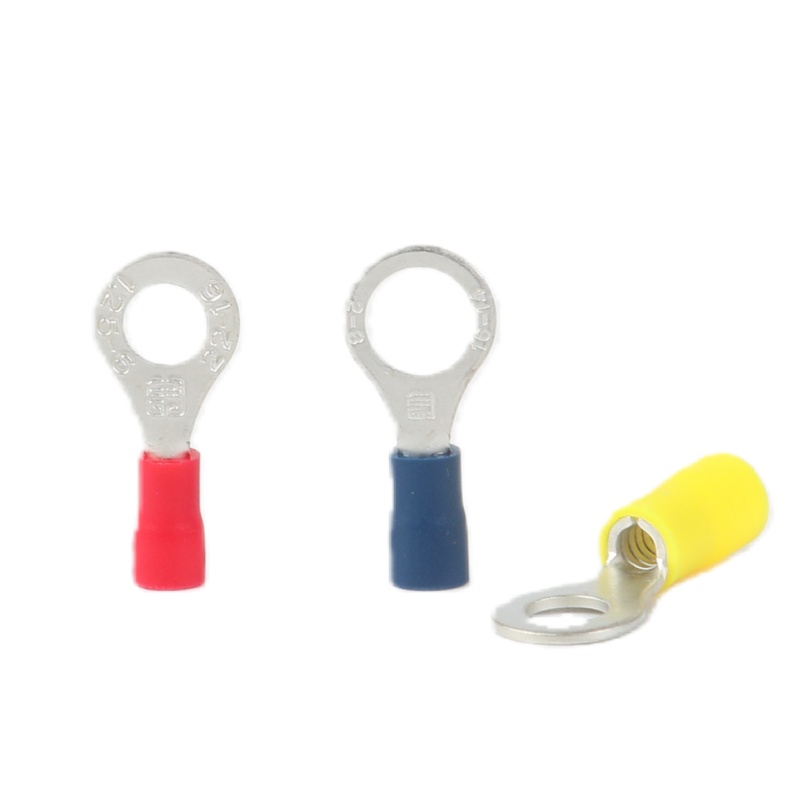

Easy Entry-PVC Insulated Ring Terminal
RVEE round insulated terminals are made from high-quality copper, a material known for its excellent conductivity and durability. This material selection ensures that the terminals can withstand large electrical loads while minimizing resistance and heat generation. The copper construction not only improves the performance of the terminals, but also extends the life of the terminals, making them a cost-effective solution for commercial and residential electrical installations. Whether you are working on automotive wiring, home improvement projects, or industrial applications, these terminals are carefully designed to meet your needs.
One of the standout features of the RVEE round insulated terminals is their PVC insulation. This insulation provides an extra layer of protection against environmental factors such as moisture and dust that can affect the electrical connection. The PVC material is not only resistant to abrasion, but also has excellent dielectric properties, ensuring the terminals maintain their integrity over time. This makes the RVEE terminals ideal for use in a variety of environments, from outdoor installations to demanding industrial environments.
In terms of versatility, RVEE round insulated terminals are available in a variety of sizes, including RVEE1.25, RVEE2, RVEE3.5 and RVEE5.5. This range allows users to select the appropriate terminal size based on their specific application requirements. Whether you need smaller terminals for delicate wiring or larger terminals for heavy-duty connections, Gao Peng can meet your needs. This adaptability makes RVEE terminals the first choice for electricians, engineers and hobbyists who need reliable and efficient electrical connections.
Gao Peng's RVEE round insulated terminals are a perfect blend of quality, durability, and versatility. With copper construction and PVC insulation, these terminals are designed to provide a secure connection that will stand the test of time. Whether you are embarking on a new project or upgrading an existing electrical system, RVEE terminals are an investment in reliability and performance. Choose Gao Peng's RVEE round insulated terminals for your next electrical endeavor and experience the difference that quality components make.
Technical Parameters
| ITEM NO | STUD SIZE | DIMENSION mm |
PCS/ PACK |
COLOR | EXPLANATION | |||||||
| American | Metric d2 | B | F | L | E | D | d1 | T | ||||
| RVEE1.25-3 | #4 | 3.2 | 5.7 | 5.0 | 18.7 | 10.7 | 5.8 | 4.2 | 0.7 | 1000 | Red | Lead Section:0.5~1.5mm2 (AW.G.22~16) Max Currentlmax=19A Material:Copper Insulation:PVC |
| RVEE1.25-3.5S | #6 | 3.7 | ||||||||||
| RVEE1.25-3.5M | #6 | 3.7 | 6.6 | 6.3 | 20.4 | |||||||
| RVEE1.25-3.5L | #6 | 3.7 | 8.0 | 7.0 | 21.7 | |||||||
| RVEE1.25-4S | #8 | 4.3 | 6.6 | 6.3 | 20.4 | |||||||
| RVEE1.25-4L | #8 | 4.3 | 8.0 | 7.0 | 21.7 | |||||||
| RVEE1.25-5S | #10 | 5.3 | ||||||||||
| RVEE1.25-5L | #10 | 5.3 | 9.5 | 7.5 | 23.0 | |||||||
| RVEE1.25-5LL | #10 | 5.3 | 11.6 | 11.3 | 27.7 | |||||||
| RVEE1.25-6S | 1/4 | 6.5 | 9.5 | 7.5 | 23.0 | |||||||
| RVEE1.25-6L | 1/4 | 6.5 | 11.6 | 11.3 | 27.7 | |||||||
| RVEE1.25-8 | 5/16 | 8.5 | ||||||||||
| RVEE1.25-8L | 5/16 | 8.5 | 13.7 | 13.9 | 31.6 | |||||||
| RVEE1.25-10 | 3/8 | 10.5 | ||||||||||
| RVEE1.25-10L | 3/8 | 10.5 | 18.0 | 15.0 | 34.7 | |||||||
| RVEE1.25-12 | 1/2 | 13.0 | ||||||||||
| RVEE1.25-14 | 9/16 | 15.0 | 27.0 | 21.0 | 45.2 | 500 | ||||||
| RVEE1.25-16 | 5/8 | 17.0 | ||||||||||
| RVEE1.25-18 | 11/16 | 19.0 | ||||||||||
| RVEE1.25-20 | 3/4 | 21.0 | ||||||||||
| RVEE2-3 | #4 | 3.2 | 6.6 | 4.3 | 18.4 | 11.0 | 6.4 | 4.5 | 0.8 | 1000 | Blue | Lead Section:1.5- 2.5mm2 (AW.G.16~14) Max Currentlmax=27A Material:Copper Insulation:PVC |
| RVEE2-3.5S | #6 | 3.7 | ||||||||||
| RVEE2-3.5M | #6 | 3.7 | 6.3 | 20.4 | ||||||||
| RVEE2-3.5L | #6 | 3.7 | 8.5 | 7.4 | 22.4 | |||||||
| RVEE2-4S | #8 | 4.3 | 6.6 | 6.3 | 20.4 | |||||||
| RVEE2-4L | #8 | 4.3 | 8.5 | 7.4 | 22.4 | |||||||
| RVEE2-5S | #10 | 5.3 | ||||||||||
| RVEE2-5L | #10 | 5.3 | 9.5 | 23.0 | ||||||||
| RVEE2-6S | 1/4 | 6.5 | ||||||||||
| RVEE2-6L | 1/4 | 6.5 | 12.0 | 11.0 | 27.4 | |||||||
| RVEE2-8 | 5/16 | 8.5 | ||||||||||
| RVEE2-8L | 5/16 | 8.5 | 13.6 | 13.9 | 31.4 | |||||||
| RVEE2-10 | 3/8 | 10.5 | ||||||||||
| RVEE2-10L | 3/8 | 10.5 | 18.2 | 15.0 | 35.2 | |||||||
| RVEE2-12 | 1/2 | 13.0 | ||||||||||
| RVEE2-14 | 9/16 | 15.0 | 27.0 | 21.0 | 45.2 | |||||||
| RVEE2-16 | 5/8 | 17.0 | 500 | |||||||||
| RVEE2-18 | 11/16 | 19.0 | ||||||||||
| RVEE2-20 | 3/4 | 21.0 | ||||||||||
| RVEE3.5-3 | #4 | 3.2 | 8.0 | 8.0 | 26.0 | 14.0 | 7.0 | 5.2 | 1.0 | 500 | Black | Lead Section:2.5-4mm2 (AW.G.14-12) Max Currentlmax=37A Material:Copper Insulation:PVC |
| RVEE3.5-3.5 | #6 | 3.7 | ||||||||||
| RVEE3.5-4 | #8 | 4.3 | ||||||||||
| RVEE3.5-4M | #8 | 4.3 | 9.5 | 8.3 | 28.0 | |||||||
| RVEE3.5-5S | #10 | 5.3 | 8.0 | 8.0 | 26.0 | |||||||
| RVEE3.5-5M | #10 | 5.3 | 9.5 | 8.3 | 28.0 | |||||||
| RVEE3.5-5L | #10 | 5.3 | 12.0 | 9.5 | 29.5 | |||||||
| RVEE3.5-6 | 1/4 | 6.5 | ||||||||||
| RVEE3.5-8 | 5/16 | 8.5 | 15.0 | 13.5 | 35.0 | |||||||
| RVEE3.5-10 | 3/8 | 10.5 | ||||||||||
| RVEE3.5-12 | 1/2 | 13.0 | 19.2 | 16.0 | 40.0 | |||||||
| RVEE5.5-3 | #4 | 3.2 | 7.2 | 6.0 | 23.7 | 14.2 | 7.5 | 5.8 | 1.0 | 500 | Yellow | Lead Section:4-6mm2 (AW.G.12-10) Max Currentlmax=48A Material:Copper Insulation:PVC |
| RVEE5.5-3.5 | #6 | 3.7 | ||||||||||
| RVEE5.5-4S | #8 | 4.3 | ||||||||||
| RVEE5.5-4L | #8 | 4.3 | 9.5 | 8.2 | 27.0 | |||||||
| RVEE5.5-5 | #10 | 5.3 | ||||||||||
| RVEE5.5-6 | 1/4 | 6.5 | 12.0 | 10.5 | 30.3 | |||||||
| RVEE5.5-6M | 1/4 | 6.5 | 13.0 | 33.0 | ||||||||
| RVEE5.5-8 | 5/16 | 8.5 | 15.0 | 13.5 | 34.8 | |||||||
| RVEE5.5-10 | 3/8 | 10.5 | ||||||||||
| RVEE5.5-12 | 1/2 | 13.0 | 19.2 | 16.0 | 40.0 | |||||||
| RVEE5.5-14 | 9/16 | 15.0 | 32.0 | 25.2 | 55.2 | 200 | ||||||
| RVEE5.5-16 | 5/8 | 17.0 | ||||||||||
| RVEE5.5-18 | 11/16 | 19.0 | ||||||||||
| RVEE5.5-20 | 3/4 | 21.0 | ||||||||||
