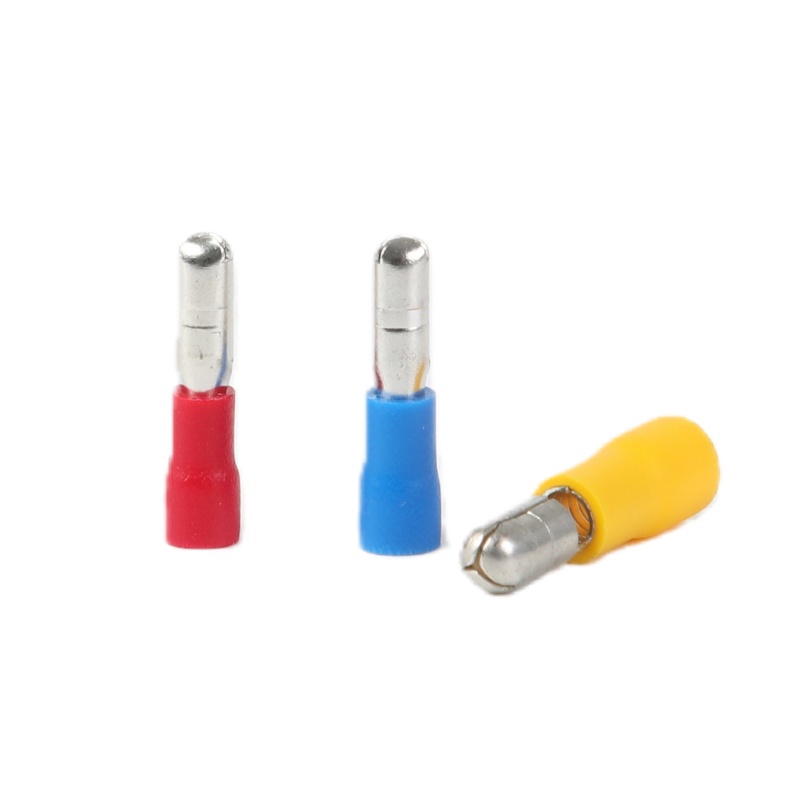

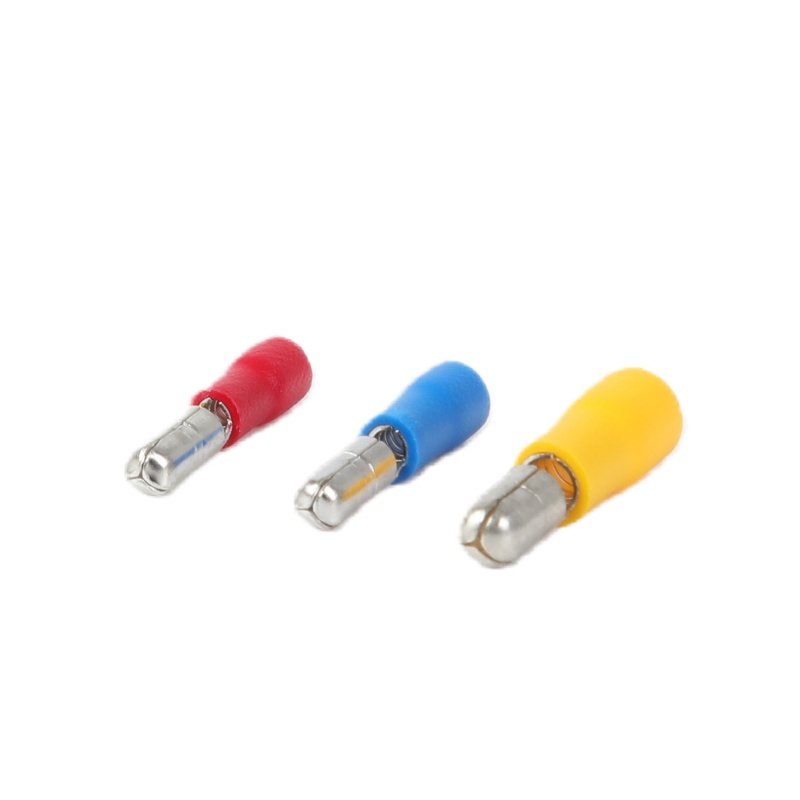

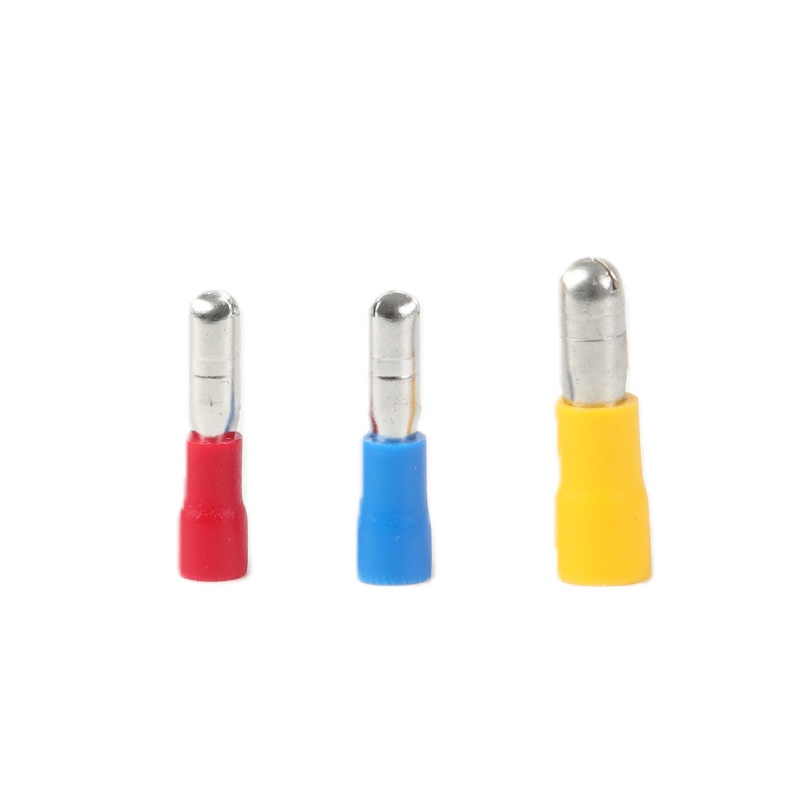

PVC Insulated Male Bullet Connector
The construction of the MPD Bullet (Male) Pre-Insulated Connectors is a testament to their quality and performance. Made from high-grade brass, these connectors offer excellent conductivity, which is critical to minimizing energy losses in electrical systems. The brass material not only improves the electrical performance of the connector, it also increases its mechanical strength, ensuring it can withstand the rigors of installation and use. This rugged construction is especially important in environments where the connector may be subject to vibration or movement, as it helps maintain a secure and reliable connection.
Insulation is a critical aspect of any electrical connector, and the MPD Bullet (Male) Pre-Insulated Connectors excel in this regard. The use of PVC insulation provides an extra layer of protection against environmental factors such as moisture, dust, and chemicals. This insulation not only protects the electrical connection, but also improves the overall safety of the installation by reducing the risk of short circuits and electric shock. The pre-insulated design simplifies the installation process and allows for faster, more efficient connections without the need for additional insulation materials.
MPD Bullet (Male) Pre-Insulated Connectors are versatile and suitable for a wide variety of applications. Whether used for automotive wiring, home electrical systems, or industrial machinery, these connectors provide a reliable solution to ensure safe connections for wires. A wide range of models are available, allowing users to select the right size and configuration for their specific needs, ensuring optimal performance in any environment. This adaptability is a significant advantage for electricians and technicians who need reliable components that can be used in different projects.
Gaopeng's MPD Bullet-Shaped (Male) Pre-Insulated Connectors are a great choice for anyone seeking a high-quality electrical connection solution. The connectors feature durable brass construction, effective PVC insulation, and a versatile range of applications to meet the stringent requirements of modern electrical systems. Whether for professional use or DIY projects, the MPD Bullet-Shaped (Male) Pre-Insulated Connectors are a product that combines reliability, safety, and ease of use, making them an essential component in any electrical tool kit.

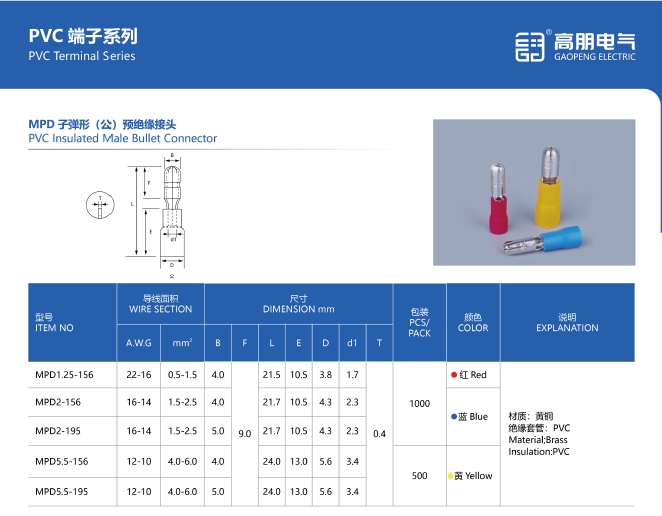

Technical Parameters
| ITEM NO | WIRE SECTION | DIMENSION mm |
PCS/ PACK |
COLOR | EXPLANATION | |||||||
| A.W.G | mm2 | B | F | L | E | D | d1 | T | ||||
| MPD1.25-156 | 22-16 | 0.5-1.5 | 4.0 | 9.0 | 21.5 | 10.5 | 3.8 | 1.7 | 0.4 | 1000 | Red |
Material;Brass Insulation:PVC |
| MPD2-156 | 16-14 | 1.5-2.5 | 4.0 | 21.7 | 10.5 | 4.3 | 2.3 | Blue | ||||
| MPD2-195 | 16-14 | 1.5-2.5 | 5.0 | 21.7 | 10.5 | 4.3 | 2.3 | |||||
| MPD5.5-156 | 12-10 | 4.0-6.0 | 4.0 | 24.0 | 13.0 | 5.6 | 3.4 | 500 | Yellow | |||
| MPD5.5-195 | 12-10 | 4.0-6.0 | 5.0 | 24.0 | 13.0 | 5.6 | 3.4 | |||||
