PVC Insulated Pin Terminal
DESCRIPTION - PVC INSULATED PIN TERMINAL
Company Introduction
We are a professional terminal manufacturer in China.
We specialize in producing various connectors and wiring accessories, lever wire connector, crimping tools, wire stripper. We offer customized service,like color,moulds.
We have a very strict quality controlling system to ensure goods we produced are always of the best quality.
As regarding modern automatic machines, we have full series of machines from production,testing to packing. For example,annealing furnace,injection molding machine,hydraulic machine,punching machine, extruder, pulling force tester, automatic assembling machine.
Product Description
Our pin terminals for wire connection is equipped with PVC insulation to protect the cable bundle.The terminal is made of high quality tinned copper, which ensures excellent electrical conductivity, safety, corrosion resistance, anti-aging. Basically restore the basic performance of the wire.
The crimp terminal adopts a thicken design, it is not easy to be broken while crimping , and the wires can be stabilized after the crimping is completed.

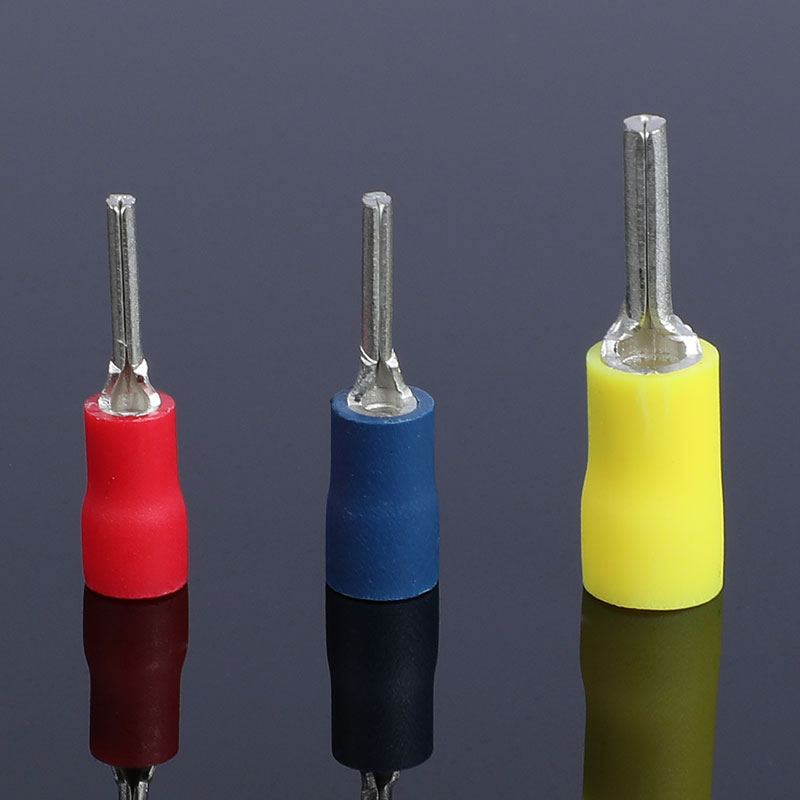

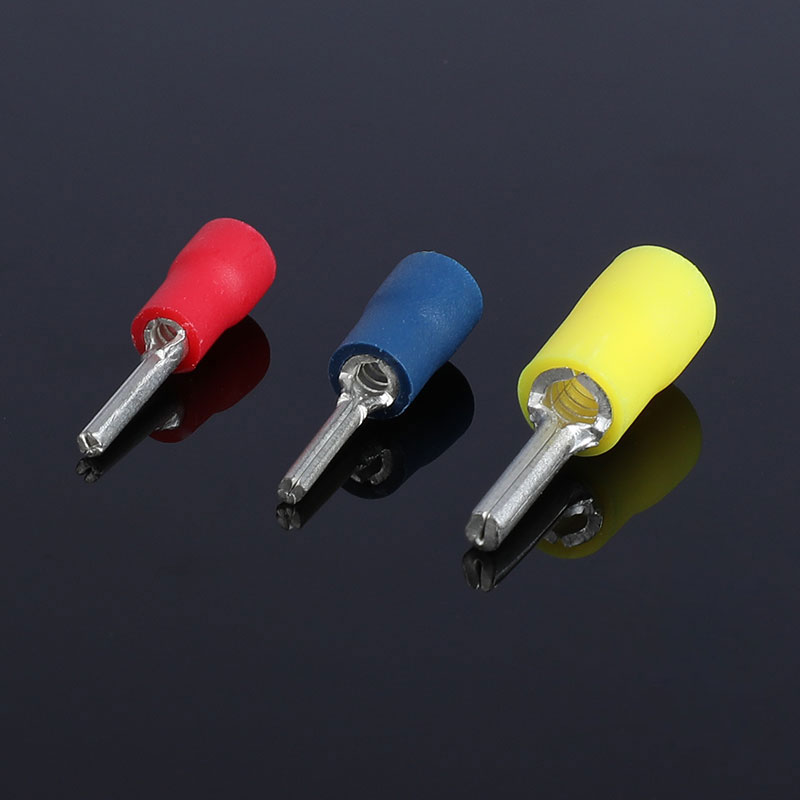

Our insulated pin terminals come with three different sizes for three colors,Color coded insulation for easy identification
Red:Wire range: 0.5~1.5mm², A.W.G.:22~16,Max.current = 16A
Blue:Wire range: 1.5~2.5mm², A.W.G.:16~14,Max.current = 27A
Yellow:Wire range: 4~6mm², A.W.G.:12~10,Max.current = 32A
Function
Insulated vinyl pin crimp terminals are ideal for automotive use. They are widely applied in electrical, industrial and household appliances.
Whether you are working at home or on scientific projects, our electrically insulated vinyl wire connectors will make your work easier.
Packing
500/1000pcs per bag is our available packing,these are our standard packing, we also support 50/100pcs per bag.
We can offer wide selection of package, colors,logo according to your requirements.
Certificate
We comply with international standards ISO9001, and have relevant certifications SGS,CE, RoHS.
We can support better price with good quality. That’s always we want to do. We adhere to the principle of “superior quality, welcome friends with integrity”.

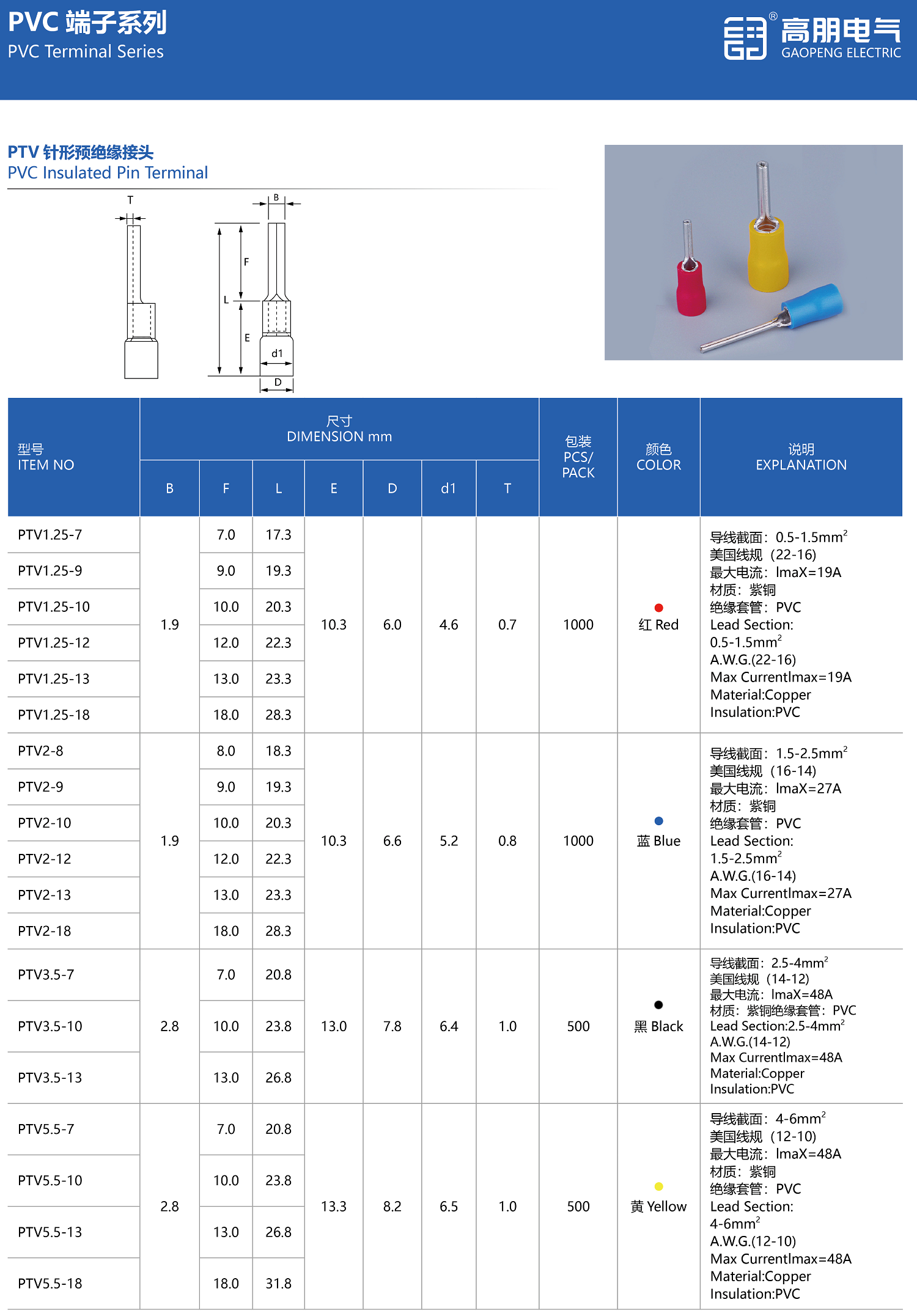

Technical Parameters
| ITEM NO | DIMENSION mm | PCS/PACK | COLOR | EXPLANATION | ||||||
| B | F | L | E | D | d1 | T | ||||
| PTV 1.25-7 | 1.9 | 7.0 | 17.3 | 10.3 | 6.0 | 4.6 | 0.7 | 1000 | Red | Lead Section：0.5-1.5mm² A.W.G.(22-16) Max Current lmax=19A Materal：Copper Insulation：PVC |
| PTV 1.25-9 | 9.0 | 19.3 | ||||||||
| PTV 1.25-10 | 10.0 | 20.3 | ||||||||
| PTV 1.25-12 | 12.0 | 22.3 | ||||||||
| PTV 1.25-13 | 13.0 | 23.3 | ||||||||
| PTV 1.25-18 | 18.0 | 28.3 | ||||||||
| PTV 2-8 | 1.9 | 8.0 | 18.3 | 10.3 | 6.6 | 5.2 | 0.8 | 1000 | Blue | Lead Section：1.5-2.5mm² A.W.G.(16-14) Max Current lmax=27A Materia：Copper Insulation：PVC |
| PTV 2-9 | 9.0 | 19.3 | ||||||||
| PTV 2-10 | 10.0 | 20.3 | ||||||||
| PTV 2-12 | 12.0 | 22.3 | ||||||||
| PTV 2-13 | 13.0 | 23.3 | ||||||||
| PTV 2-18 | 18.0 | 28.3 | ||||||||
| PTV 3.5-7 | 2.8 | 7.0 | 20.8 | 13.0 | 7.8 | 6.4 | 1.0 | 500 | Black | LeadSection：2.5-4mm² A.W.G(14-12) Max Current lmax=48A Materia：Copper Insulation：PVC |
| PTV 3.5-10 | 10.0 | 23.8 | ||||||||
| PTV 3.5-13 | 13.0 | 26.8 | ||||||||
| PTV 5.5-7 | 2.8 | 7.0 | 20.8 | 13.3 | 8.2 | 6.5 | 1.0 | 500 | Yellow | Lead Section：4-6mm A.W.G.(12-10) Max Current lmax=48A Materia：Copper Insulation：PVC |
| PTV 5.5-10 | 10.0 | 23.8 | ||||||||
| PTV 5.5-13 | 13.0 | 26.8 | ||||||||
| PTV 5.5-18 | 18.0 | 31.8 | ||||||||
